Throttle Master 3/8" Female NPT Angle Needle Valve-PVC with L Series Needle
Throttle Master 3/8" Female NPT Angle Needle Valve-PVC with L Series Needle
SKU:PLA-02c74b
Achieve precise flow control with the Throttle Master 3/8" Female NPT Angle Needle Valve-PVC. Durable PVC construction with PTFE sealing for extended product life, offering low torque on/off operation and fine metering control.
Regular price
$88.95
Regular price
Sale price
$88.95
Unit price
per
Initiate Order
Throttle Master 3/8" Female NPT Angle Needle Valve-PVC with L Series Needle
$88.95
Quantity: 1
Claim Your Seller Account
Throttle Master 3/8" Female NPT Angle Needle Valve-PVC with L Series Needle
$88.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

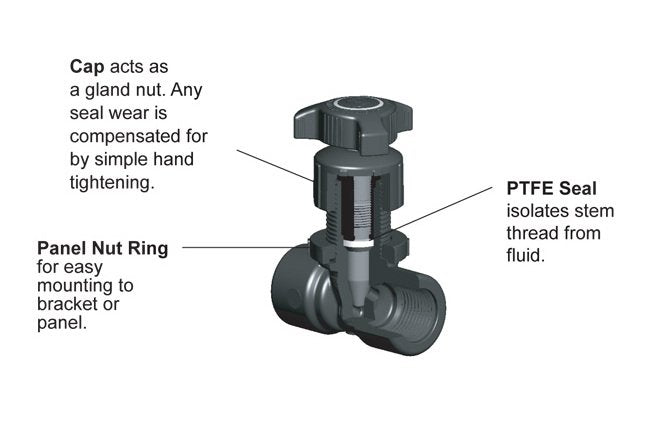

The Throttle Master 3/8" Female NPT Angle Needle Valve is the ultimate solution for precise flow control in industrial settings. Featuring a durable PVC construction and PTFE sealing for extended product life, this valve offers exceptional low torque on/off operation and a 24 pitch metering thread for fine control adjustment. With chemical resistance and high purity design, it ensures no corrosion or contamination, making it ideal for critical applications. Integrally designed for panel mounting without the need for fasteners, this needle valve is NSF Std 14 & 61 Rated, meeting industry standards for quality and performance.
Product Specifications
Features 0

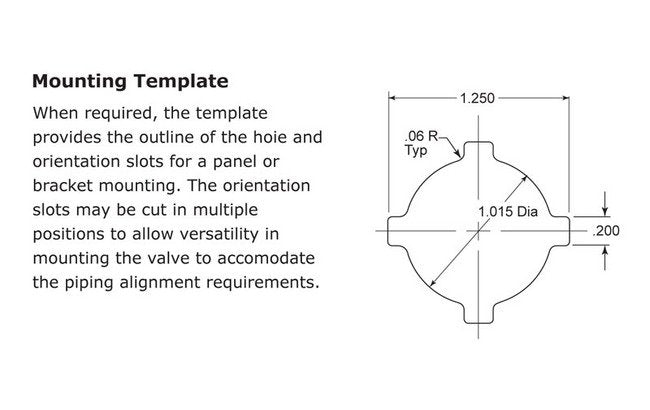

Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated
Materials Of Construction Materials Of Construction

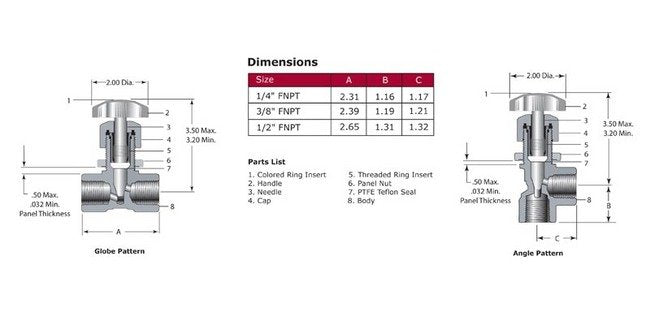

Body PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene, unpigmented homopolymer, glass & mineral reinforced Seal Virgin PTFE Sealed ul>Choice of three sizes 1/4" x 1/4" FNPT 3/8" x 3/8" FNPT 1/2" x 1/2" FNPT

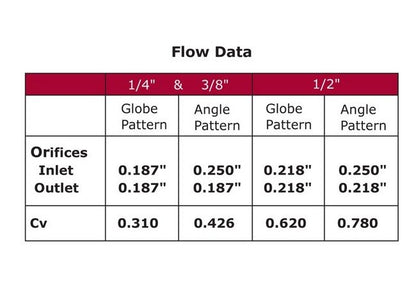

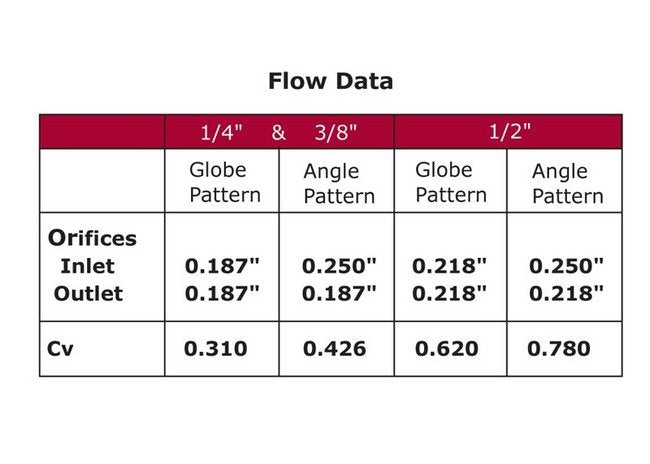

Specifications Cv Factor
0.426
Specifications Inlet X Outlet
3/8" Female NPT
Specifications List Price
88.95 USD
Specifications Materials
PVC
Specifications Seal
PTFE
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
Specifications Style
Angle Pattern, L Series Needle
