Throttle Master CPVC Angle Needle Valve - L series 1/2" Female NPT

Throttle Master CPVC Angle Needle Valve - L series 1/2" Female NPT

PLA-6e3263

High-performance Throttle Master CPVC Angle Needle Valve for precise control in industrial applications.

$97.95
$97.95
Sale

Initiate Order

Throttle Master CPVC Angle Needle Valve - L series 1/2" Female NPT

Throttle Master CPVC Angle Needle Valve - L series 1/2" Female NPT

$97.95

Quantity: 1

Claim Your Seller Account

Throttle Master CPVC Angle Needle Valve - L series 1/2" Female NPT

Throttle Master CPVC Angle Needle Valve - L series 1/2" Female NPT

$97.95

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

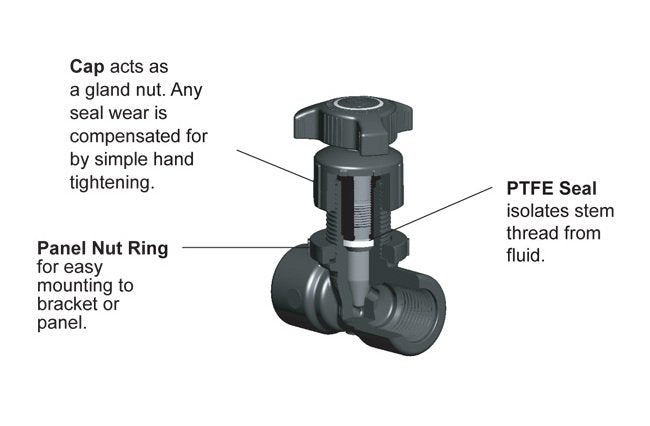

The Throttle Master CPVC Angle Needle Valve from the 'L Series' offers exceptional performance for precise metering control and on/off operation. With a PTFE seal, this valve ensures bubble-tight, low torque shut-off, ideal for chemical resistance and high-purity applications. Integrally designed for easy panel mounting without fasteners, it complies with NSF Std 14 & 61 for added quality assurance. This valve meets stringent institutional procurement standards, including Federal/DoD and GSA requirements, making it a reliable choice for industrial applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Features 0

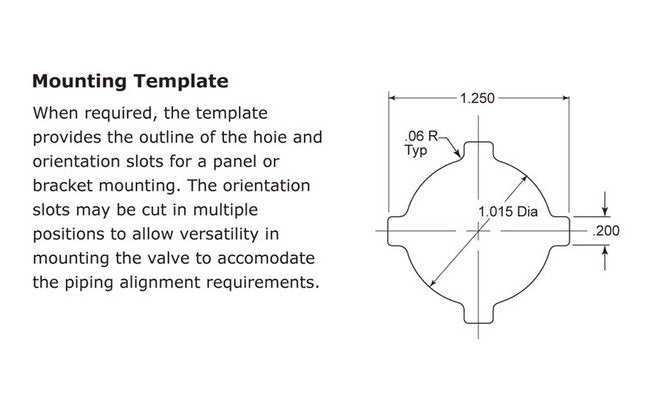

Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated
Materials Of Construction Materials Of Construction
Body PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene, unpigmented homopolymer, glass & mineral reinforced Seal Virgin PTFE, Choice of three sizes 1/4" x 1/4" FNPT 3/8" x 3/8" FNPT 1/2" x 1/2" FNPT

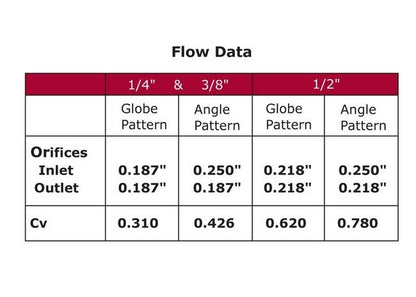

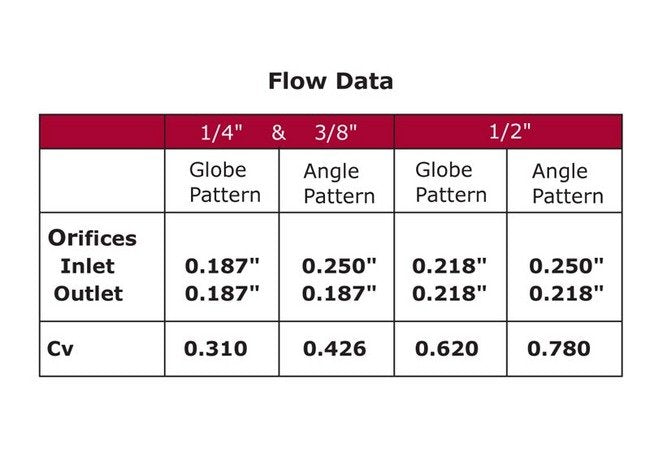

Specifications Cv Factor
0.780
Specifications Inlet X Outlet
1/2" Female NPT
Specifications List Price
97.95 USD
Specifications Materials
CPVC
Specifications Seal
PTFE
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
Specifications Style
Angle Pattern, L Series Needle
