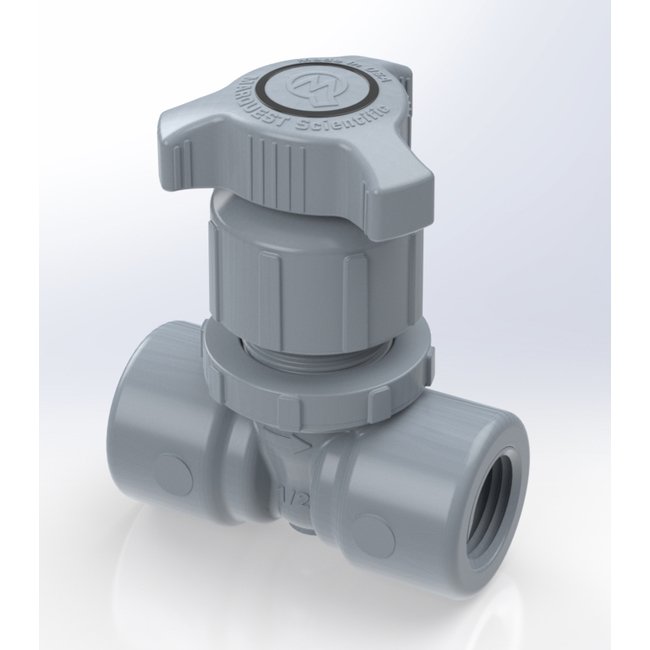

Throttle Master CPVC Globe Needle Valve, 1/2" Female NPT

Name: Throttle Master CPVC Globe Needle Valve, 1/2" Female NPT
Brand: Marquest Scientific, Inc.
SKU: PLA-949009
Price: 80.95 USD
Availability: OutOfStock

SKU:PLA-949009

Achieve precise flow control with the Throttle Master CPVC Globe Needle Valve, ideal for corrosive and high purity fluids.

$80.95

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Throttle Master CPVC Globe Needle Valve is engineered for precise flow control of corrosive and high purity fluids. Featuring a Globe Pattern with 1/2" Female NPT End Connections, this valve offers bubble-tight, low torque shut-off for long-term performance. With a 24 pitch metering thread providing 20% finer metering control, this valve is PTFE sealed, chemical-resistant, and designed for high purity applications. Integrally designed for panel mounting without the need for fasteners, this valve ensures no corrosion or contamination, meeting NSF Std 14 & 61 Ratings.

Product Specifications

Features 0

Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated

Materials Of Construction 0

Body PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene, unpigmented homopolymer, glass & mineral reinforced Seal Virgin PTFE Choice of three sizes 1/4" x 1/4" FNPT 3/8" x 3/8" FNPT 1/2" x 1/2" FNPT

Specifications Cv Factor

0.620

Specifications Inlet X Outlet

1/2" Female NPT

Specifications List Price

80.95 USD

Specifications Materials

CPVC, PTFE Seal

Specifications Shipping Note

We will let you know the shipping charges once we receive the order.

Specifications Style

Globe, Straight Pattern

Throttle Master CPVC Globe Needle Valve, 1/2" Female NPT
