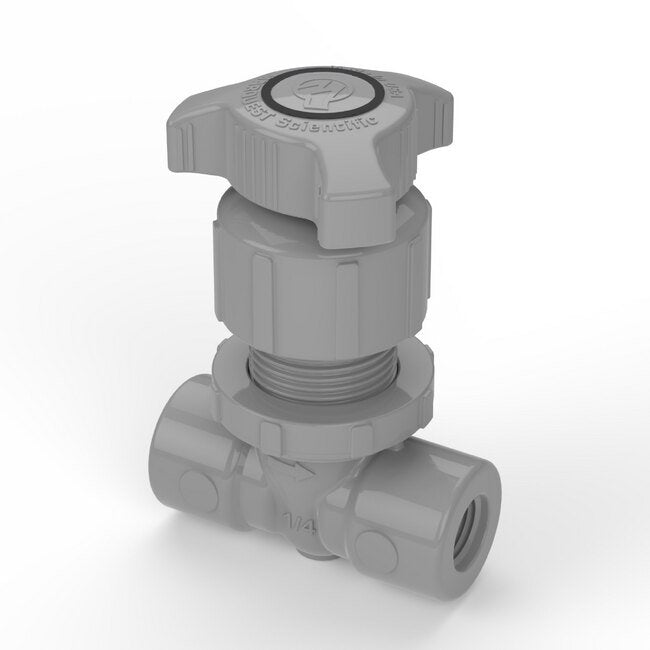

Throttle Master CPVC Globe Needle Valve, 1/4" FNPT

Name: Throttle Master CPVC Globe Needle Valve, 1/4" FNPT
Brand: Marquest Scientific, Inc.
SKU: PLA-6be4b4
Price: 74.95 USD
Availability: OutOfStock

SKU:PLA-6be4b4

Achieve precise flow control with the Throttle Master CPVC Globe Needle Valve for corrosive and high purity fluids.

$74.95

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Throttle Master CPVC Globe Needle Valve offers precise flow control for corrosive and high purity fluids. With a max 150 PSI rating and 1/4" Female NPT end connections, this valve ensures bubble-tight, low torque shut-off. Featuring a 24 pitch metering thread for 20% finer control adjustment, PTFE seal, and integrally designed panel mounting, it is resistant to corrosion and contamination. NSF Std 14 & 61 Rated for CPVC construction.

Product Specifications

Features 0

Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated

Materials Of Construction 0

Body PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene, unpigmented homopolymer, glass & mineral reinforced Seal Virgin PTFE Choice of three sizes 1/4" x 1/4" FNPT 3/8" x 3/8" FNPT 1/2" x 1/2" FNPT

Specifications Cv Factor

0.310

Specifications Inlet X Outlet

1/4" Female NPT

Specifications List Price

74.95 USD

Specifications Materials

CPVC, PTFE Seal

Specifications Shipping Note

We will let you know the shipping charges once we receive the order.

Specifications Style

Globe, Straight Pattern

Throttle Master CPVC Globe Needle Valve, 1/4" FNPT
