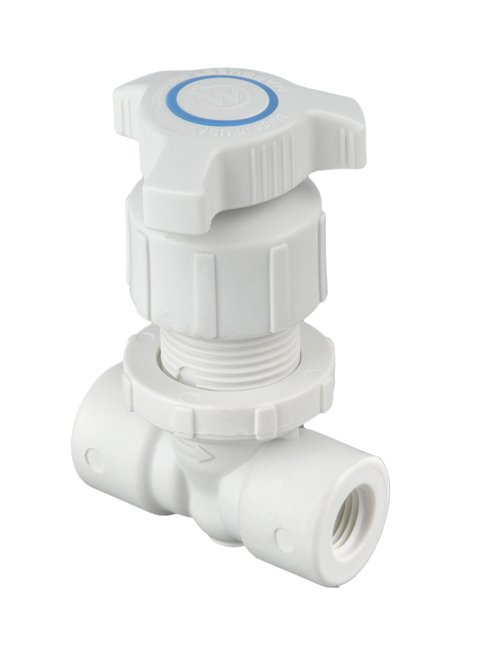

Throttle Master L Series 1/2" Female NPT Globe Needle Valve-PP

Name: Throttle Master L Series 1/2" Female NPT Globe Needle Valve-PP
Brand: Marquest Scientific, Inc.
SKU: PLA-576f17
Price: 95.5 USD
Availability: OutOfStock

SKU:PLA-576f17

Enhance control and reliability with Throttle Master L Series Needle Valve. PTFE sealed for longevity and precision control.

$95.50

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

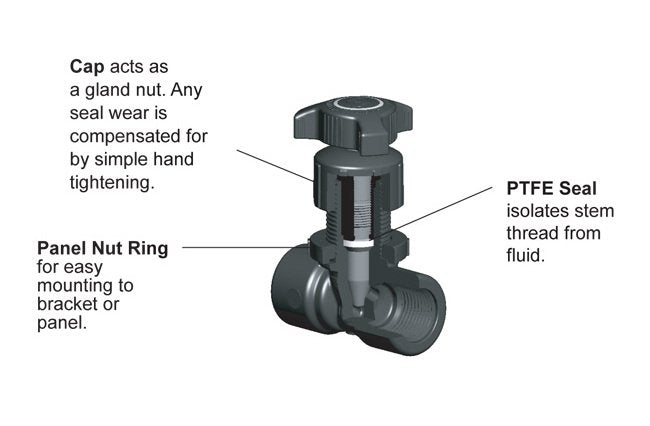

The Throttle Master "L Series" 1/2" Female NPT Globe Needle Valve-PP offers exceptional performance and durability for both consumer and institutional buyers. This valve features a PTFE sealing for bubble-tight shut-off, low torque operation, and fine metering control. With integrally designed panel mounting and no fasteners required, it ensures easy installation and maintenance. Constructed with Polypro materials, it guarantees chemical resistance, high purity, and no corrosion or contamination issues. Perfect for a wide range of applications including chemical processing, water treatment, and more.

Product Specifications

Features 0

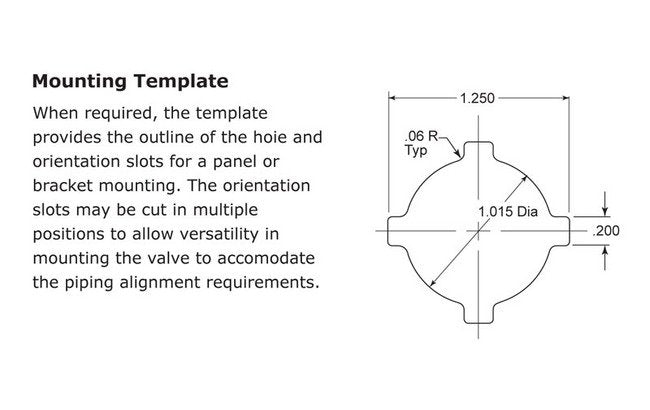

Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated

Materials Of Construction Materials Of Construction

Body PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene, unpigmented homopolymer, glass & mineral reinforced Seal Virgin PTFE, Choice of three sizes 1/4" x 1/4" FNPT 3/8" x 3/8" FNPT 1/2" x 1/2" FNPT

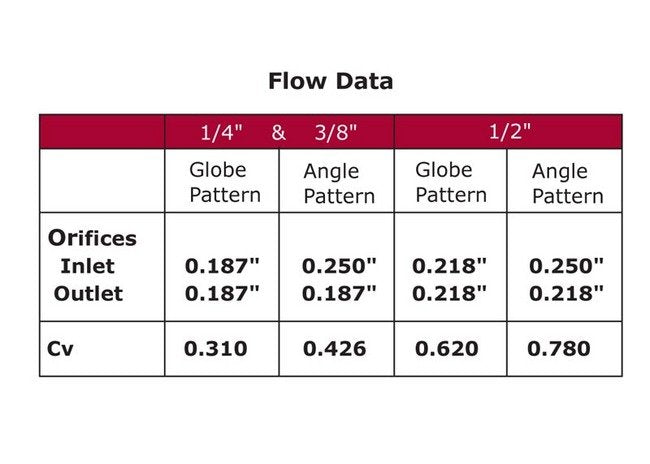

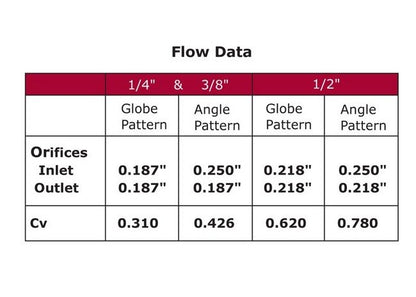

Specifications Cv Factor

0.620

Specifications Inlet X Outlet

1/2" Female NPT

Specifications List Price

95.5 USD

Specifications Materials

Polypro

Specifications Seal

PTFE

Specifications Shipping Note

We will let you know the shipping charges once we receive the order.

Specifications Style

Globe Pattern, L Series Needle

Throttle Master L Series 1/2" Female NPT Globe Needle Valve-PP
