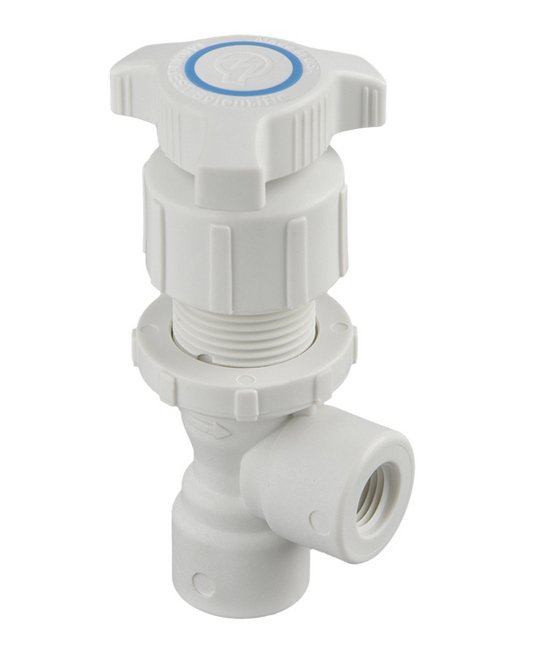

Throttle Master L Series 1/2" x 1/2" Female NPT Angle Needle Valve-PP

Name: Throttle Master L Series 1/2" x 1/2" Female NPT Angle Needle Valve-PP
Brand: Marquest Scientific, Inc.
SKU: PLA-0603fd
Price: 95.5 USD
Availability: OutOfStock

SKU:PLA-0603fd

Achieve precise flow control with Throttle Master L Series 1/2" Angle Needle Valve-PP for industrial applications.

$95.50

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

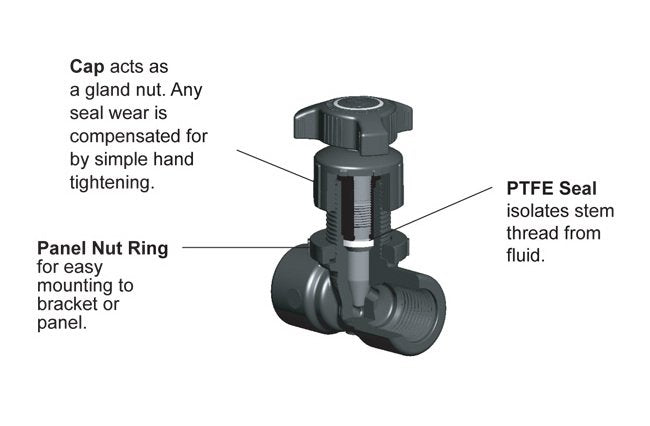

Enhance your industrial fluid control system with the Throttle Master L Series 1/2" x 1/2" Female NPT Angle Needle Valve-PP. This valve features a durable Polypro construction and PTFE seal for exceptional chemical resistance and fine metering control. With a Cv Factor of 0.780, fast open/close operation, and bubble-tight shut-off, this valve ensures precise flow control and longevity. Its integrally designed panel mounting allows for easy installation without the need for fasteners, making it a reliable choice for institutional and government procurement needs.

Product Specifications

Features 0

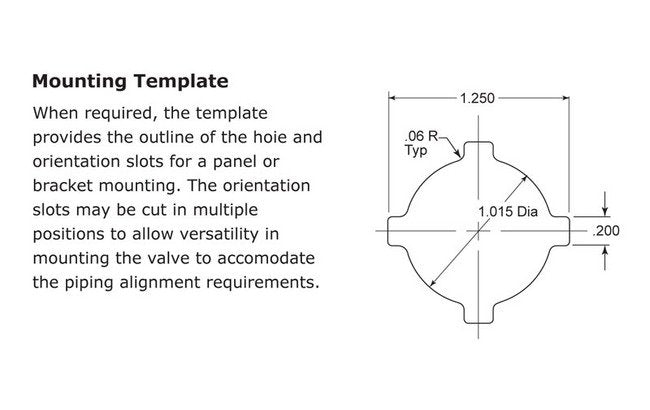

Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated

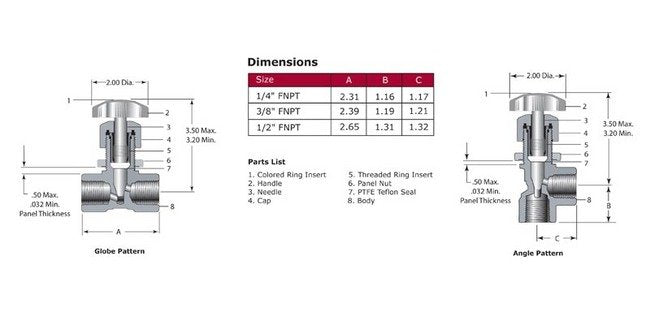

Materials Of Construction Materials Of Construction

Body PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene, unpigmented homopolymer, glass & mineral reinforced Seal Virgin PTFE, Choice of three sizes 1/4" x 1/4" FNPT 3/8" x 3/8" FNPT 1/2" x 1/2" FNPT

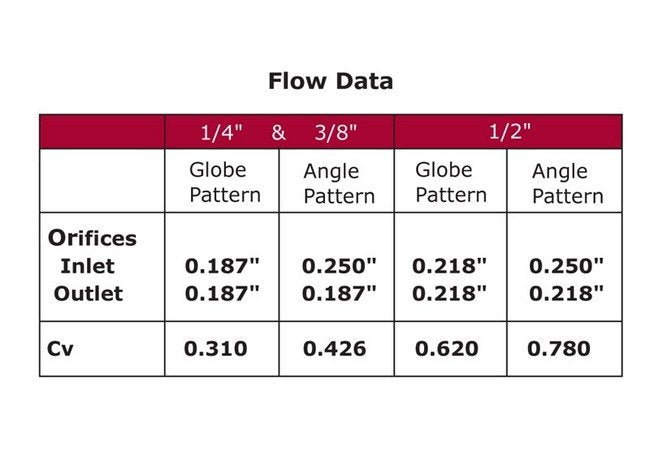

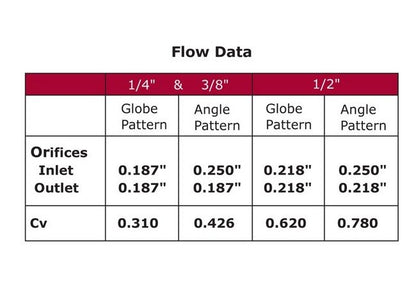

Specifications Cv Factor

0.780

Specifications Inlet X Outlet

1/2" Female NPT

Specifications List Price

95.5 USD

Specifications Materials

Polypro

Specifications Seal

PTFE

Specifications Shipping Note

We will let you know the shipping charges once we receive the order.

Specifications Style

Angle Pattern, L Series Needle

Throttle Master L Series 1/2" x 1/2" Female NPT Angle Needle Valve-PP
