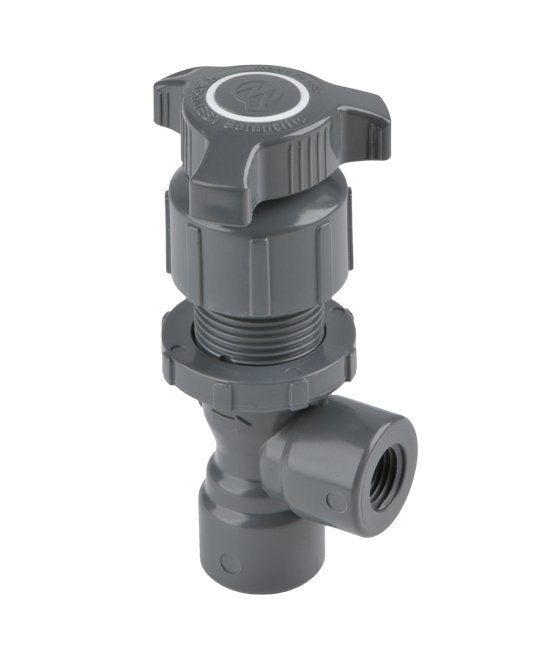

Throttle Master L Series Angle Needle Valve - 1/2" PVC Female NPT
Throttle Master L Series Angle Needle Valve - 1/2" PVC Female NPT
SKU:PLA-81b6a7
Enhanced Throttle Master L Series Angle Needle Valve for precise flow control and durability in PVC material.
Regular price
$94.95
Regular price
Sale price
$94.95
Unit price
per
Initiate Order
Throttle Master L Series Angle Needle Valve - 1/2" PVC Female NPT
$94.95
Quantity: 1
Claim Your Seller Account
Throttle Master L Series Angle Needle Valve - 1/2" PVC Female NPT
$94.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

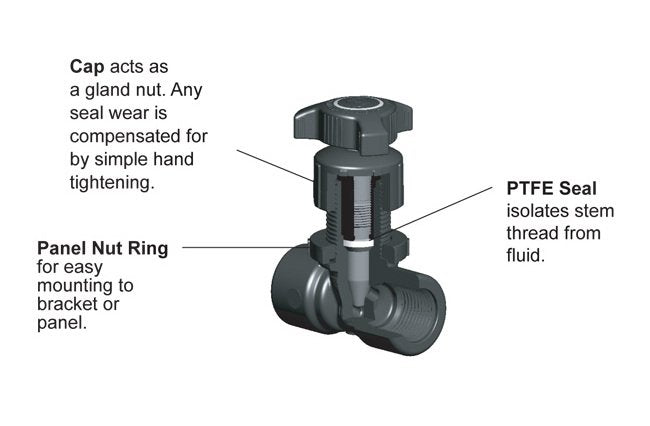

The Throttle Master L Series Angle Needle Valve in 1/2" PVC Female NPT features an innovative design for an extended product cycle life. With PTFE sealing technology, this valve ensures exceptional low torque operation, bubble-tight shut-off, and 20% finer metering control. Its integrally designed panel mounting requires no fasteners and offers chemical resistance, high purity, and no risk of corrosion or contamination. Rated NSF Std 14 & 61, this valve meets stringent quality standards for institutional and government procurement.
Product Specifications
Features 0

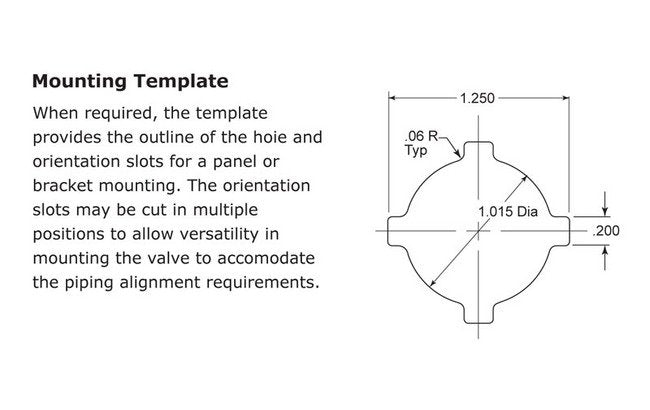

Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated
Materials Of Construction Materials Of Construction
Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated

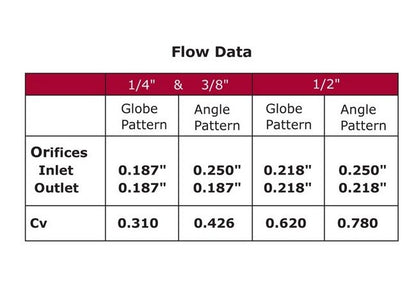

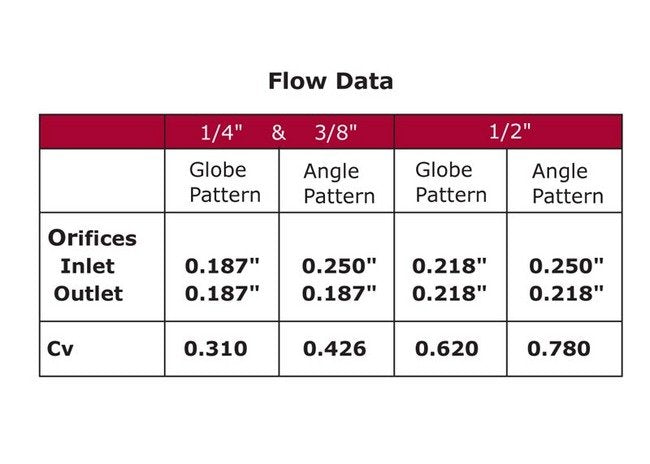

Specifications Cv Factor
0.780
Specifications Inlet X Outlet
1/2" Female NPT
Specifications List Price
94.95 USD
Specifications Materials
PVC
Specifications Seal
PTFE
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
Specifications Style
Angle Pattern, L Series Needle
