Throttle Master L Series CPVC Female NPT Globe Needle Valve
Throttle Master L Series CPVC Female NPT Globe Needle Valve
SKU:PLA-ff2a3e
Premium CPVC Globe Needle Valve with PTFE seal for precise control and extended life, ideal for industrial applications.
Regular price
$94.95
Regular price
Sale price
$94.95
Unit price
per
Initiate Order
Throttle Master L Series CPVC Female NPT Globe Needle Valve
$94.95
Quantity: 1
Claim Your Seller Account
Throttle Master L Series CPVC Female NPT Globe Needle Valve
$94.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

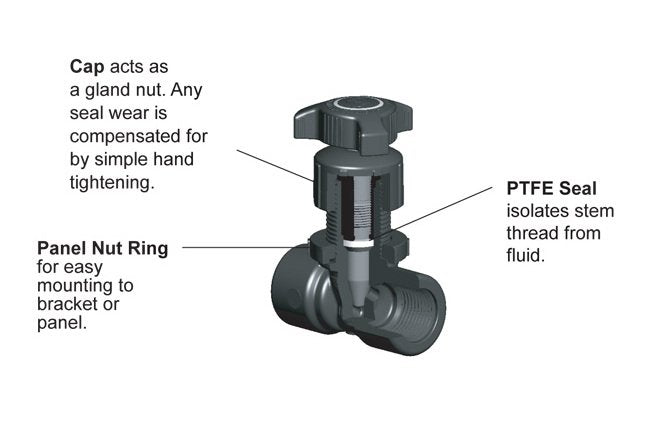

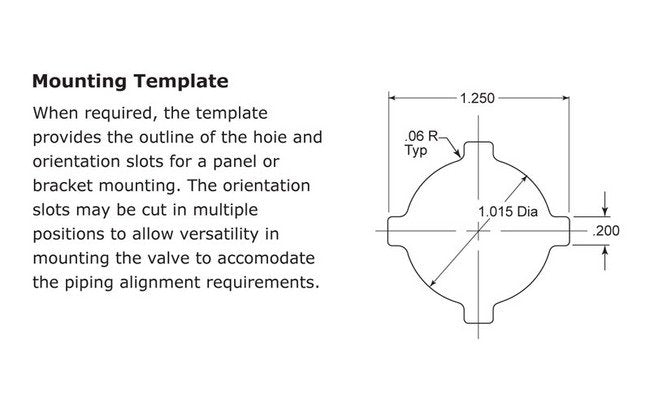

The Throttle Master L Series CPVC Female NPT Globe Needle Valve is designed to offer exceptional performance and longevity in on/off cycles. Featuring a PTFE sealing for extended life, this valve ensures easy replacement of the on/off seal without the need for tools. With a globe pattern and 24 pitch metering thread, it provides precise control and low torque operation. The valve is constructed with CPVC materials, making it highly resistant to chemicals, corrosion, and contamination. It is also panel-mountable without fasteners, catering to panel thicknesses from 1/16" to 1/2". Compliant with NSF Std 14 & 61, this valve meets high purity standards and is ideal for a wide range of industrial applications.
Product Specifications
Features 0
Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated
Materials Of Construction Materials Of Construction
Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated

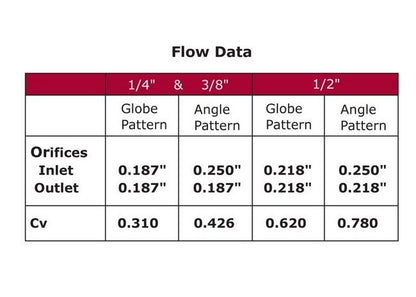

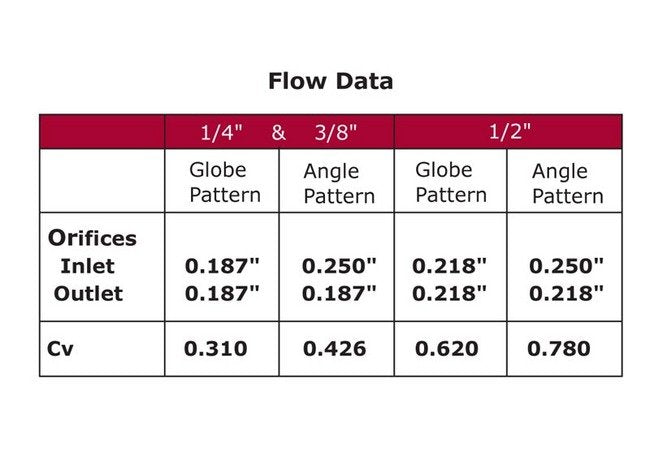

Specifications Cv Factor
0.310
Specifications Inlet X Outlet
1/4" Female NPT
Specifications List Price
94.95 USD
Specifications Materials
CPVC
Specifications Seal
PTFE
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
Specifications Style
Globe Pattern, L Series Needle
