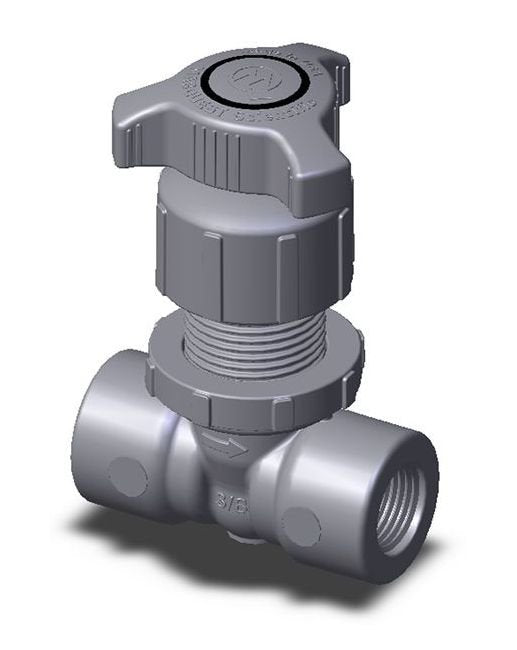

Throttle Master L Series CPVC Globe Needle Valve 3/8" Female NPT
Throttle Master L Series CPVC Globe Needle Valve 3/8" Female NPT
SKU:PLA-f76cad
Experience precision control and extended life with the Throttle Master L Series CPVC Globe Needle Valve.
Regular price
$94.95
Regular price
Sale price
$94.95
Unit price
per
Initiate Order
Throttle Master L Series CPVC Globe Needle Valve 3/8" Female NPT
$94.95
Quantity: 1
Claim Your Seller Account
Throttle Master L Series CPVC Globe Needle Valve 3/8" Female NPT
$94.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

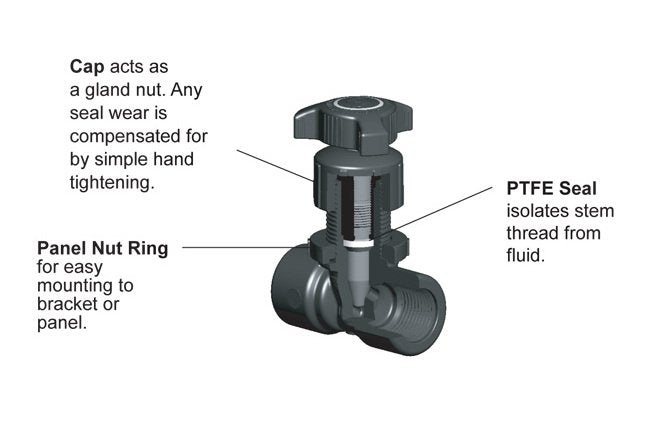

The Throttle Master L Series CPVC Globe Needle Valve features a PTFE sealed design for extended product cycle life. With exceptional low torque on/off operation and 20% finer metering control, this valve offers bubble-tight, low torque shut-off. Integrally designed for panel mounting with no fasteners required, it ensures chemical resistance, high purity, and no risk of corrosion or contamination. Compliant with NSF Std 14 & 61, this valve is ideal for applications requiring precision control and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features 0

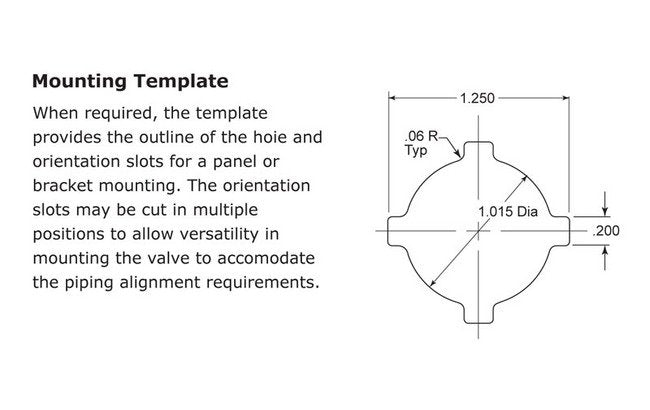

Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated

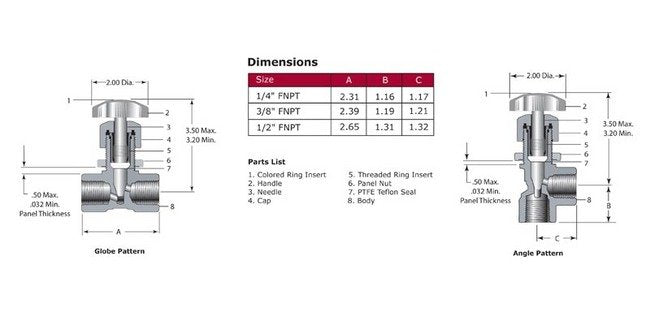

Materials Of Construction Materials Of Construction
Body PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene, unpigmented homopolymer, glass & mineral reinforced Seal Virgin PTFE, Choice of three sizes 1/4" x 1/4" FNPT 3/8" x 3/8" FNPT 1/2" x 1/2" FNPT

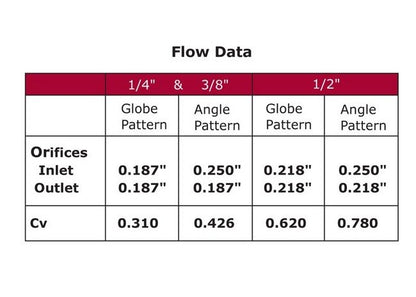

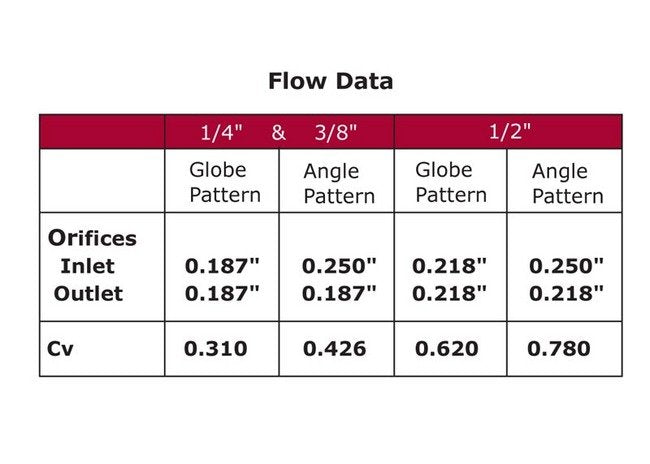

Specifications Cv Factor
0.310
Specifications Inlet X Outlet
3/8" Female NPT
Specifications List Price
94.95 USD
Specifications Materials
CPVC
Specifications Seal
PTFE
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
Specifications Style
Globe Pattern, L Series Needle
