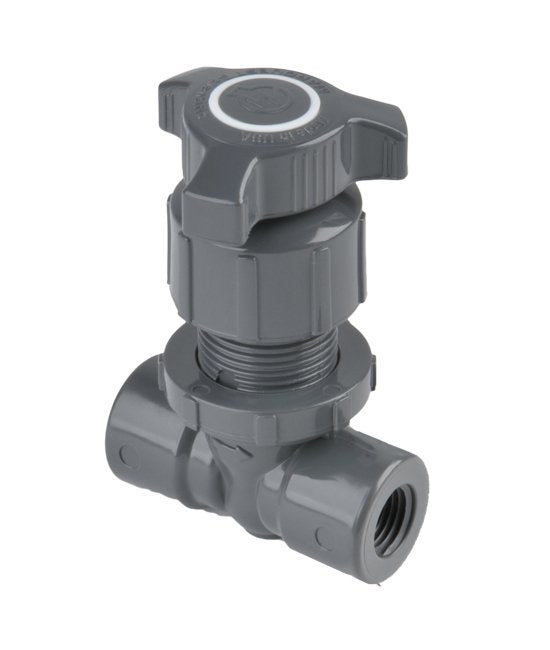

Throttle Master L Series Needle Valve - 1/2" Female NPT Globe Needle Valve - PVC

Name: Throttle Master L Series Needle Valve - 1/2" Female NPT Globe Needle Valve - PVC
Brand: Marquest Scientific, Inc.
SKU: PLA-9ac5cb
Price: 94.95 USD
Availability: OutOfStock

SKU:PLA-9ac5cb

Achieve precision and reliability with the Throttle Master L Series Needle Valve - ideal for industrial applications.

$94.95

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

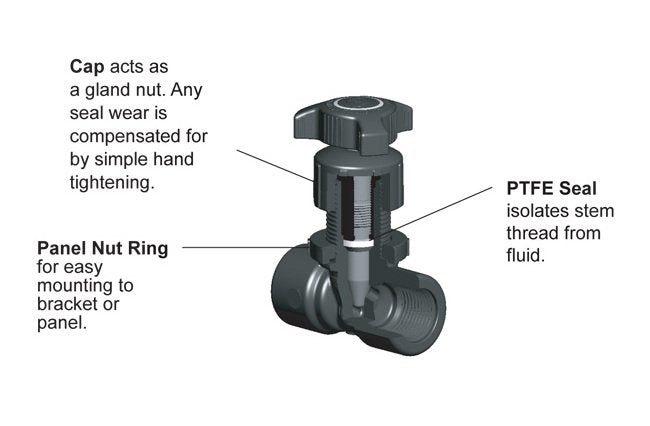

The Throttle Master L Series Needle Valve is designed for precise control and exceptional performance in industrial applications. Featuring a Globe Pattern with an L Series Needle, this valve offers bubble-tight, low torque shut-off and 20% finer metering control. The integrally designed panel mounting requires no fasteners and ensures chemical resistance and high purity. Constructed with PVC material and a PTFE seal, this valve meets NSF Std 14 & 61 Rated standards. Experience long-term reliability with no corrosion, contamination, or the need for elastomers, metals, or lubricants.

Product Specifications

Features 0

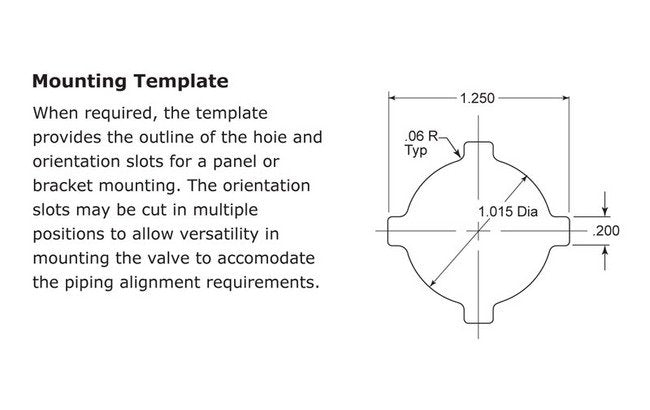

Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated

Materials Of Construction Materials Of Construction

Body PVC: Polyvinyl Chloride CPVC: Chlorinated Polyvinyl Chloride PP: Polypropylene, unpigmented homopolymer, glass & mineral reinforced Seal Virgin PTFE, Choice of three sizes 1/4" x 1/4" FNPT 3/8" x 3/8" FNPT 1/2" x 1/2" FNPT

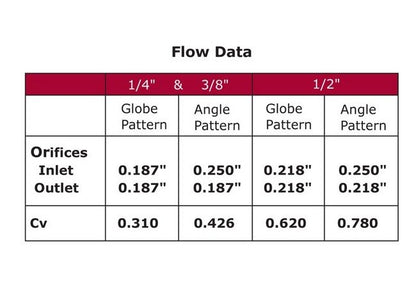

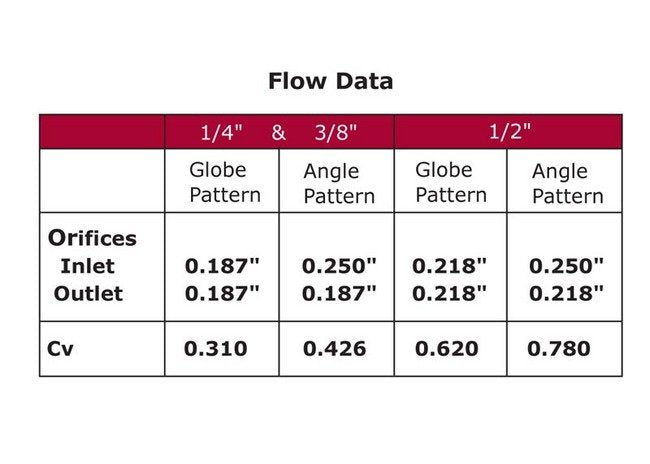

Specifications Cv Factor

0.620

Specifications Inlet X Outlet

1/2" Female NPT

Specifications List Price

94.95 USD

Specifications Materials

PVC

Specifications Seal

PTFE

Specifications Shipping Note

We will let you know the shipping charges once we receive the order.

Specifications Style

Globe Pattern, L Series Needle
