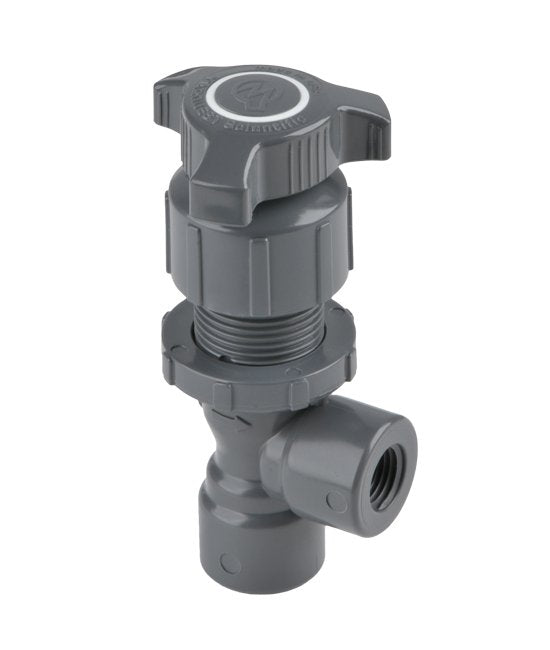

Throttle Master PVC Angle Needle Valve - 1/4" Female NPT, L Series Needle
Throttle Master PVC Angle Needle Valve - 1/4" Female NPT, L Series Needle
SKU:PLA-a7e19a
Boost fluid control with the Throttle Master PVC Angle Needle Valve. Achieve precise metering and chemical resistance.
Regular price
$88.95
Regular price
Sale price
$88.95
Unit price
per
Initiate Order
Throttle Master PVC Angle Needle Valve - 1/4" Female NPT, L Series Needle
$88.95
Quantity: 1
Claim Your Seller Account
Throttle Master PVC Angle Needle Valve - 1/4" Female NPT, L Series Needle
$88.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

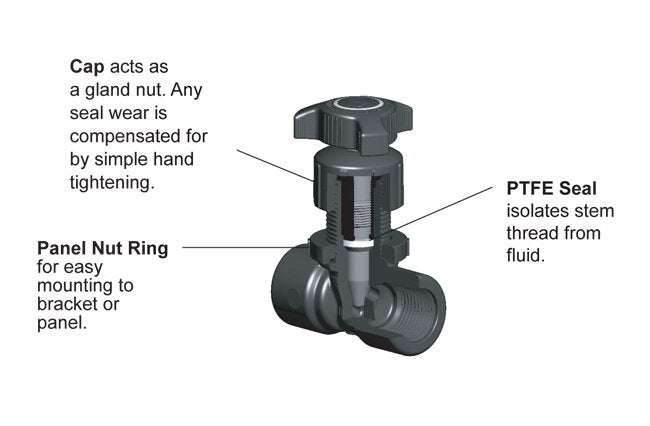

Enhance fluid control with the Throttle Master PVC Angle Needle Valve, featuring PTFE sealing for extended product cycle life and exceptional low torque on/off operation. This valve offers angle pattern design for precise metering control, chemical resistance, and high purity. With integrally designed panel mounting and no elastomers or metals, it ensures long-term performance and no contamination. Compliant with NSF Std 14 & 61, this valve is ideal for institutional and government applications.
Product Specifications
Features 0

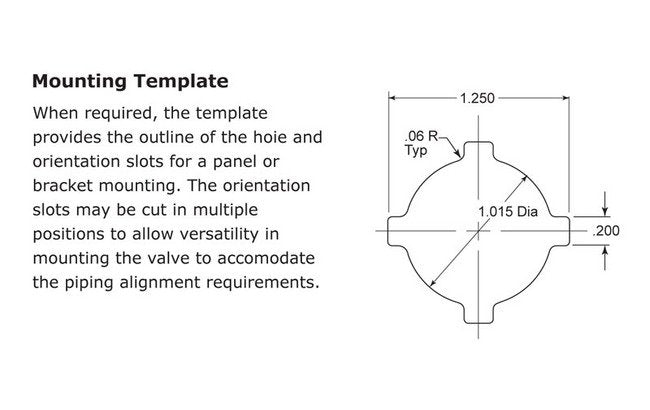

Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated
Materials Of Construction Materials Of Construction
Needle Finish, SPI/SPE # 1Bubble tight, low torque shut-off. Proven three prong, star handleTri-Oval geometryFast open/close operationFine metering control. 24 pitch metering thread20% finer control adjustment Integrally designed panel mountingNo fasteners requiredMounts to panel thicknesses from 1/32" to 1/2" PTFE SealedChemical resistanceHigh Purity No Elastomers (O-rings), metals or lubricantsNo corrosionNo contamination Materials of Construction.PVC is NSF Std 14 & 61 RatedCPVC is NSF Std 14 & 61 RatedPP is natural (unpigmented), reinforcedPVDF is NSF Std 14 & 61 Rated

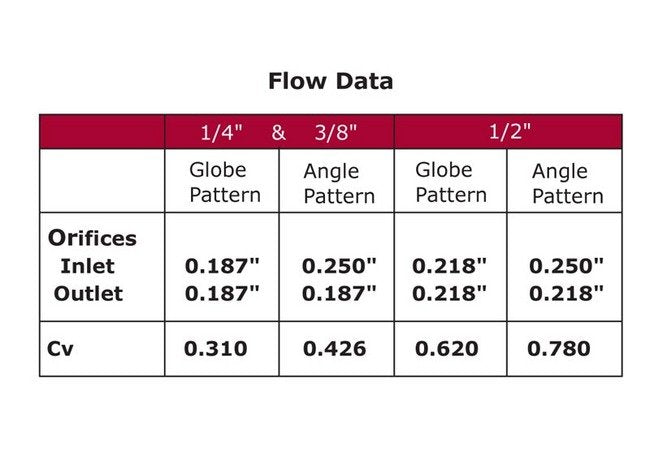

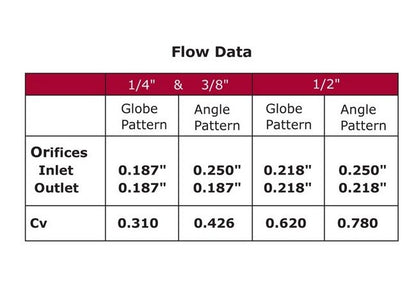

Specifications Cv Factor
0.426
Specifications Inlet X Outlet
1/4" Female NPT
Specifications List Price
88.95 USD
Specifications Materials
PVC
Specifications Seal
PTFE
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
Specifications Style
Angle Pattern, L Series Needle
