Timken Type E Heavy Duty Piloted Flange Mounted Units
Timken Type E Heavy Duty Piloted Flange Mounted Units
SKU:MOU-ed51a2
High-load capacity Timken Type E Piloted Flange Units for reliable and secure shaft locking, with labyrinth seals for superior protection.
Regular price
$699.00
Regular price
Sale price
$699.00
Unit price
per
Initiate Order
Timken Type E Heavy Duty Piloted Flange Mounted Units
$699.00
Quantity: 1
Claim Your Seller Account
Timken Type E Heavy Duty Piloted Flange Mounted Units
$699.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

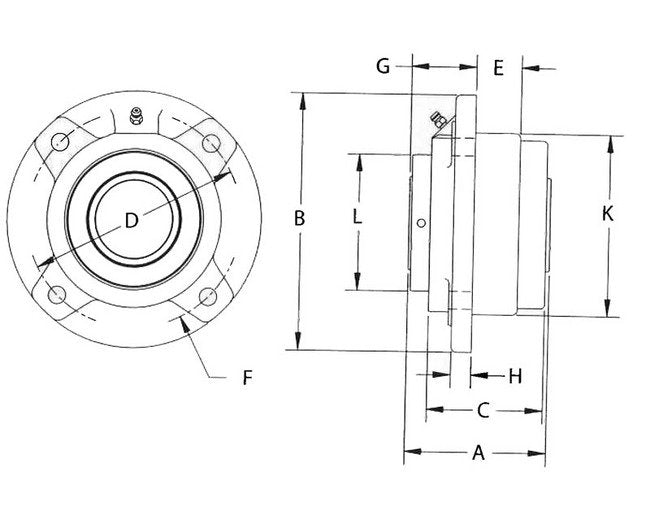

The Timken Type E Heavy Duty Piloted Flange Mounted Units are engineered to handle high radial and thrust loads with ease of installation and secure shaft locking. Featuring factory-installed labyrinth seals for effective lubricant retention and dust/dirt protection. Built with Timken tapered roller bearings for reliability and supplied in Non-Expansion type. With dimensions (A) 6-3/4 in, (B) 13-1/2 in, (C) 4-5/8 in, (D) 11-3/4 in, (E) 1-1/2 in, (F) 3/4 in, (G) 3-1/32 in, (H) 1 in, (K) 10-1/4 in, (L) 6-13/32 in, and weight of 93 lb.
Product Specifications
Specifications A Dimension
6-3/4 in
Specifications Browning Pn
FBE920-19331110
Specifications B Dimension
13-1/2 in
Specifications C Dimension
4-5/8 in
Specifications Dodge Pn
F4BE-19331110
Specifications D Dimension
11-3/4 in
Specifications E Dimension
1-1/2 in
Specifications F Dimension
3/4 in
Specifications G Dimension
3-1/32 in
Specifications Hub City Pn
EFB4-19331110
Specifications H Dimension
1 in
Specifications K Dimension
10-1/4 in
Specifications L Dimension
6-13/32 in
Specifications Moline Pn
19331110
Specifications Number Of Drive Collars
2
Specifications Number Of Mounting Holes
6
Specifications Rex Pn
ZEF2000-F-19331110
Specifications Royersford Pn
20-05-0103-19331110
Specifications Sealmaster Pn
EFB-19331110
Specifications Shaft Size
110 mm
Specifications Weight
93 lb
