Timken Type E Piloted Flange Heavy Duty Mounted Units 1-15/16"
Timken Type E Piloted Flange Heavy Duty Mounted Units 1-15/16"
SKU:MOU-9e7068
Timken Type E Piloted Flange Units: High load capacity, easy install, superior sealing, Timken bearings, precise dimensions. Non-expansion type.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Timken Type E Piloted Flange Heavy Duty Mounted Units 1-15/16"
$189.99
Quantity: 1
Claim Your Seller Account
Timken Type E Piloted Flange Heavy Duty Mounted Units 1-15/16"
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

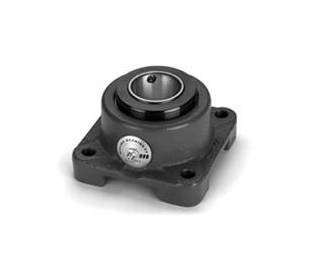

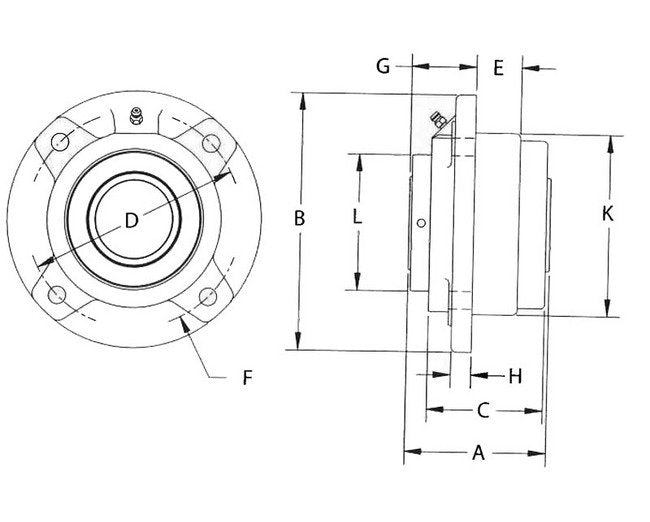

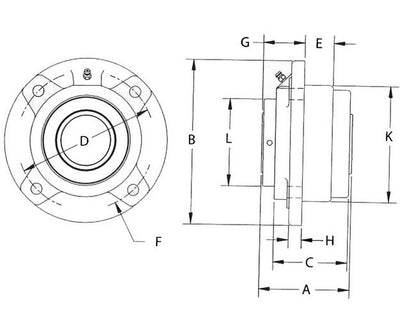

The Timken Type E Piloted Flange Heavy Duty Mounted Units are engineered to handle high radial and thrust loads with ease of installation and secure locking. Featuring factory-installed labyrinth seals, they effectively prevent lubricant loss and ingress of dust and dirt. Equipped with Timken tapered roller bearings, these units offer reliability and performance. Non-Expansion type design ensures stability and precision. With dimensions (A) 3-1/2 in, (B) 6-3/8 in, (C) 2-29/32 in, (D) 5-3/8 in, (E) 1-3/16 in, (F) 7/16 in, (G) 1-9/16 in, (H) 9/16 in, (K) 4-1/2 in, and (L) 3-7/16 in, weighing 9.4 lb. Ideal for heavy-duty applications.
Product Specifications
Specifications A Dimension
3-1/2 in
Specifications Browning Pn
FBE920-19331115
Specifications B Dimension
6-3/8 in
Specifications C Dimension
2-29/32 in
Specifications Dodge Pn
F4BE-19331115
Specifications D Dimension
5-3/8 in
Specifications E Dimension
1-3/16 in
Specifications F Dimension
7/16 in
Specifications G Dimension
1-9/16 in
Specifications Hub City Pn
EFB4-19331115
Specifications H Dimension
9/16 in
Specifications K Dimension
4-1/2 in
Specifications L Dimension
3-7/16 in
Specifications Moline Pn
19331115
Specifications Number Of Drive Collars
1
Specifications Number Of Mounting Holes
4
Specifications Rex Pn
ZEF2000-F-19331115
Specifications Royersford Pn
20-05-0103-19331115
Specifications Sealmaster Pn
EFB-19331115
Specifications Shaft Size
1 15/16 in
Specifications Weight
9.4 lb
