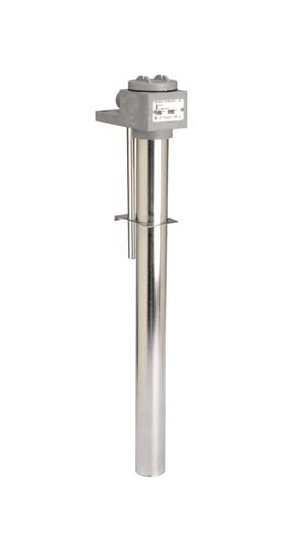

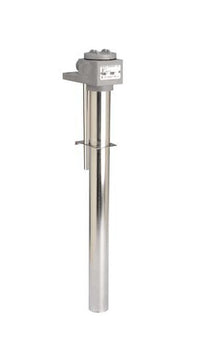

Titanium D-Series Metal Heater - 5000W, 480V
Titanium D-Series Metal Heater - 5000W, 480V
SKU:HEA-b620c5
Premium titanium immersion heater for industrial use, featuring superior chemical resistance and rugged construction for outstanding performance and safety.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
Titanium D-Series Metal Heater - 5000W, 480V
$549.99
Quantity: 1
Claim Your Seller Account
Titanium D-Series Metal Heater - 5000W, 480V
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Titanium D-Series Metal Heater is a top-of-the-line immersion heater designed for industrial applications. With superior chemical resistance and rugged construction using heavy wall metal sheaths like titanium, this heater ensures outstanding performance and long service life. It features safety elements like a corrosion-resistant head, grounded construction, and built-in thermal protectors. Certified by cUL US Listed, it offers a wide range of wattages and voltages, with various options for thermal protectors to suit different temperature requirements. The included features make it a reliable and efficient heating solution for your processes.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE:For use in most aqueous alkaline solutions, and plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in: steel, 304 stainless steel, 316 stainless steel, titanium.OUTSTANDING PERFORMANCE: Low watt densities of 18 watts per square inch (2.8 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS:cULus listed (except steel) and CE compliant (except 600 volts).SIZES: 500 watts to 6,000 watts.VOLTAGES: 120 to 600 volts.OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors:P4: for solutions up to 230°F (110°C)P5: for solutions up to 300°F (149°C)Resettable thermal protectors:P2: for solutions up to 180°F (82°C).P6: for solutions up to 230°F (110°C)P7: for solutions up to 300°F (149°C)Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).All metal welded junction box.
Options Available Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Replaceable thermal protector: P5: for solutions up to 300°F (149°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C). | Resettable thermal protector: P7: for solutions up to 300°F (149°C).
Specifications Certifications
cUL US Listed
Specifications Hot Zone
49 " | 1245 mm
Specifications Manufacturer
Process Technology
Specifications Material
Titanium
Specifications Overall Length
59 " | 1499 mm
Specifications Phase Available
Single (Standard) | Three
Specifications Shipping Weight
25.0 Pound
Specifications Volts
480 V
Specifications Watts
5000 W
Specifications Weight
25.0 lbs | 11.3 kg
