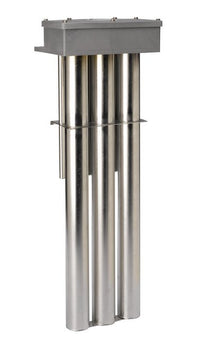

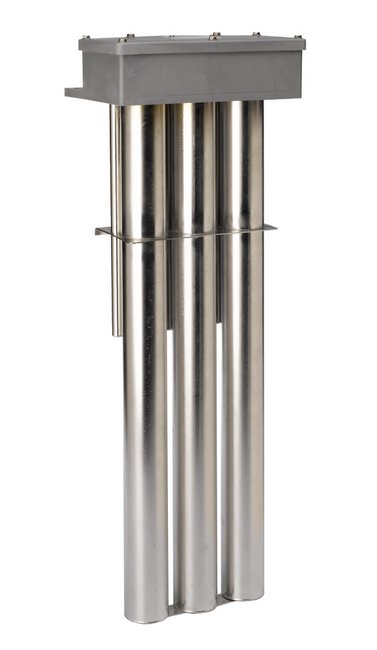

Titanium Metal Heater - D3 Series
Titanium Metal Heater - D3 Series
SKU:HEA-cea4be
Premium Titanium Metal Heater for industrial applications, superior chemical resistance, cULus Listed for safety
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Titanium Metal Heater - D3 Series
$899.99
Quantity: 1
Claim Your Seller Account
Titanium Metal Heater - D3 Series
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The D3 Series Titanium Metal Heater is a premium solution for industrial heating needs. With a robust construction featuring heavy wall metal sheaths in titanium, it offers superior chemical resistance and long service life. The heater is designed for use in aqueous alkaline solutions, plating, and phosphate tanks, meeting the demanding requirements of industrial applications. Certified cULus Listed, this heater ensures safety and quality in operation, making it a reliable choice for critical processes.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE:For use in most aqueous alkaline solutions, and plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in:Steel.304 stainless steel.316 stainless steel.Titanium.OUTSTANDING PERFORMANCE:Watt densities up to 35 watts per square inch (5.4 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protectors built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: cULus listed (except steel) and CE compliant (except 600 volts).SIZES: 1,500 watts to 18,000 watts.VOLTAGES:120 to 600 volts.OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors:P4: for solutions up to 230°F (110°C)P5:for solutions up to 300°F (149°C)Resettable thermal protectors:P2: for solutions up to 180°F (82°C)P6: for solutions up to 230°F (110°C)P7: for solutions up to 300°F (149°C)Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).All metal welded junction box.
Specifications Certifications
cUL US Listed
Specifications Hot Zone
10 " | 254 mm
Specifications Manufacturer
Process Technology
Specifications Material
Titanium
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Replaceable thermal protector: P5: for solutions up to 300°F (149°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C). | Resettable thermal protector: P7: for solutions up to 300°F (149°C).
Specifications Overall Length
17 " | 432 mm
Specifications Phase
Single | Three
Specifications Shipping Weight
30.0 Pound
Specifications Volts
240 V
Specifications Watts
3000 W
Specifications Weight
30.0 lbs | 13.6 kg
