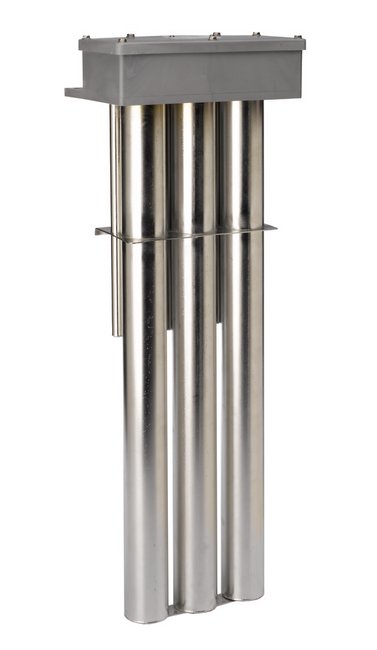

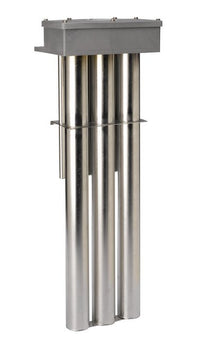

Titanium Triple Metal Heater - 6000W, 480V, Single/Three Phase
Titanium Triple Metal Heater - 6000W, 480V, Single/Three Phase
SKU:HEA-da34cd
Rugged Titanium Triple Metal Heater with Superior Chemical Resistance and Safety Features
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Titanium Triple Metal Heater - 6000W, 480V, Single/Three Phase
$899.99
Quantity: 1
Claim Your Seller Account
Titanium Triple Metal Heater - 6000W, 480V, Single/Three Phase
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The D3 Series Derated Triple Metal Heaters offer superior chemical resistance for aqueous alkaline solutions, plating tanks, and phosphate tanks. With rugged construction featuring titanium material, these heaters ensure outstanding performance with watt densities up to 35 watts per square inch. The corrosion-resistant head and safety features like grounded construction and thermal protectors make them ideal for institutional and industrial settings. Certified cULus Listed, these heaters come in various wattages and voltages, with options for different temperature range thermal protectors.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE:For use in most aqueous alkaline solutions, and plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in:Steel.304 stainless steel.316 stainless steel.Titanium.OUTSTANDING PERFORMANCE:Watt densities up to 35 watts per square inch (5.4 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protectors built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: cULus listed (except steel) and CE compliant (except 600 volts).SIZES: 1,500 watts to 18,000 watts.VOLTAGES:120 to 600 volts.OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors:P4: for solutions up to 230°F (110°C)P5:for solutions up to 300°F (149°C)Resettable thermal protectors:P2: for solutions up to 180°F (82°C)P6: for solutions up to 230°F (110°C)P7: for solutions up to 300°F (149°C)Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).All metal welded junction box.
Specifications Certifications
cUL US Listed
Specifications Hot Zone
20 " | 508 mm
Specifications Manufacturer
Process Technology
Specifications Material
Titanium
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Replaceable thermal protector: P5: for solutions up to 300°F (149°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C). | Resettable thermal protector: P7: for solutions up to 300°F (149°C).
Specifications Overall Length
29 " | 737 mm
Specifications Phase
Single | Three
Specifications Shipping Weight
39.0 Pound
Specifications Volts
480 V
Specifications Watts
6000 W
Specifications Weight
39.0 lbs | 17.7 kg
