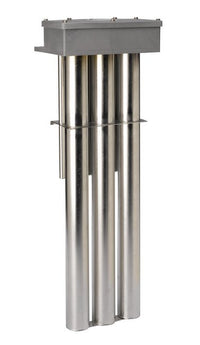

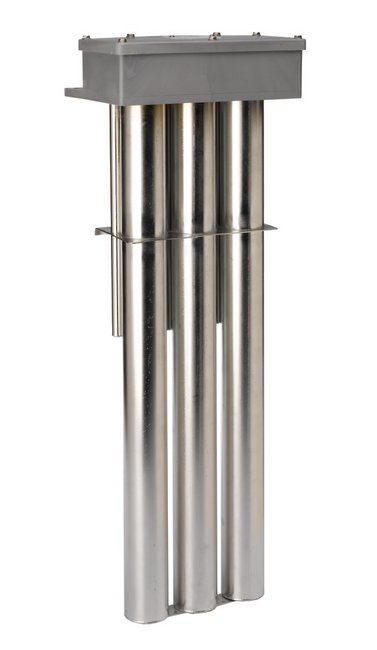

Titanium Triple Metal Heaters - D3 Series
Titanium Triple Metal Heaters - D3 Series
SKU:HEA-6a2356
D3 Series Titanium Heaters: Superior chemical resistance, outstanding performance, and safety features for industrial use.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Titanium Triple Metal Heaters - D3 Series
$899.99
Quantity: 1
Claim Your Seller Account
Titanium Triple Metal Heaters - D3 Series
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Titanium Triple Metal Heaters from the D3 Series by Process Technology offer superior chemical resistance and outstanding performance for industrial applications. With options for different thermal protectors and rugged construction featuring heavy wall metal sheaths, these heaters ensure efficient heat transfer and long service life. Certified with cUL US Listing, these heaters provide safety features like grounded construction, thermal protectors, and corrosion-resistant heads. Available in various wattages and voltages, these heaters are designed for reliability and durability in challenging environments.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE:For use in most aqueous alkaline solutions, and plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in:Steel.304 stainless steel.316 stainless steel.Titanium.OUTSTANDING PERFORMANCE:Watt densities up to 35 watts per square inch (5.4 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protectors built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: cULus listed (except steel) and CE compliant (except 600 volts).SIZES: 1,500 watts to 18,000 watts.VOLTAGES:120 to 600 volts.OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors:P4: for solutions up to 230°F (110°C)P5:for solutions up to 300°F (149°C)Resettable thermal protectors:P2: for solutions up to 180°F (82°C)P6: for solutions up to 230°F (110°C)P7: for solutions up to 300°F (149°C)Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).All metal welded junction box.
Specifications Certifications
cUL US Listed
Specifications Hot Zone
49 " | 1245 mm
Specifications Manufacturer
Process Technology
Specifications Material
Titanium
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Replaceable thermal protector: P5: for solutions up to 300°F (149°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C). | Resettable thermal protector: P7: for solutions up to 300°F (149°C).
Specifications Overall Length
59 " | 1499 mm
Specifications Phase
Single | Three
Specifications Shipping Weight
75 Pound
Specifications Volts
480 V
Specifications Watts
15000 W
Specifications Weight
75.0 lbs | 34.0 kg
