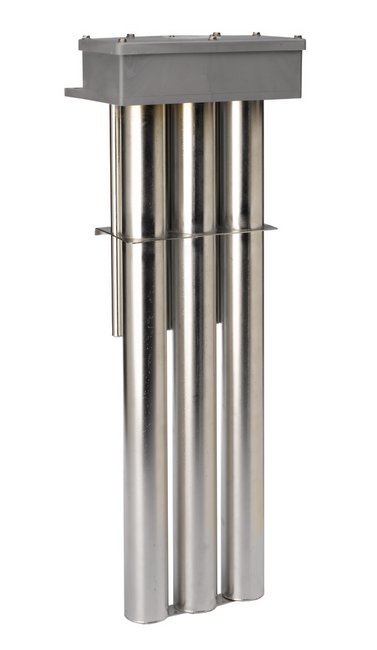

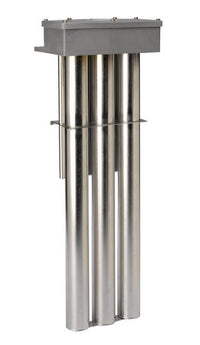

Titanium Triple Metal Immersion Heater - D3 Series
Titanium Triple Metal Immersion Heater - D3 Series
SKU:HEA-c58533
Premium Titanium Immersion Heater with superior corrosion resistance and high performance. Certified to cUL US standards.
Regular price
$589.99
Regular price
Sale price
$589.99
Unit price
per
Initiate Order
Titanium Triple Metal Immersion Heater - D3 Series
$589.99
Quantity: 1
Claim Your Seller Account
Titanium Triple Metal Immersion Heater - D3 Series
$589.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Titanium Triple Metal Immersion Heater from the D3 Series by Process Technology is a top-tier solution for heating applications in industrial settings. With a rugged construction featuring heavy-wall metal sheaths in titanium, this heater offers superior corrosion resistance and performance. The unit is designed for use in various solutions, thanks to its high watt density and exceptional chemical resistance. Equipped with multiple safety features like grounded construction and built-in thermal protectors, this heater ensures safe and efficient operation. Certified to meet cUL US standards, the heater is available in different wattages and voltages, catering to diverse heating needs.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE:For use in most aqueous alkaline solutions, and plating and phosphate tanks. Check solution recommendation chart with your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in:Steel.304 stainless steel.316 stainless steel.Titanium.OUTSTANDING PERFORMANCE:Watt densities up to 35 watts per square inch (5.4 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protectors built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: cULus listed (except steel) and CE compliant (except 600 volts).SIZES: 1,500 watts to 18,000 watts.VOLTAGES:120 to 600 volts.OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors:P4: for solutions up to 230°F (110°C)P5:for solutions up to 300°F (149°C)Resettable thermal protectors:P2: for solutions up to 180°F (82°C)P6: for solutions up to 230°F (110°C)P7: for solutions up to 300°F (149°C)Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).All metal welded junction box.
Specifications Certifications
cUL US Listed
Specifications Hot Zone
10 " | 254 mm
Specifications Manufacturer
Process Technology
Specifications Material
Titanium
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Replaceable thermal protector: P5: for solutions up to 300°F (149°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C). | Resettable thermal protector: P7: for solutions up to 300°F (149°C).
Specifications Overall Length
17 " | 432 mm
Specifications Phase
Single | Three
Specifications Shipping Weight
30.0 Pound
Specifications Volts
480 V
Specifications Watts
3000 W
Specifications Weight
30.0 lbs | 13.6 kg
