Titanium Triple Metal Immersion Heaters
Titanium Triple Metal Immersion Heaters
SKU:HEA-077fe6
Experience superior chemical resistance and outstanding performance with our Titanium Triple Metal Immersion Heaters. Compliant with cUL US Listed certifications.
Regular price
$3,499.00
Regular price
Sale price
$3,499.00
Unit price
per
Initiate Order
Titanium Triple Metal Immersion Heaters
$3,499.00
Quantity: 1
Claim Your Seller Account
Titanium Triple Metal Immersion Heaters
$3,499.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Titanium Triple Metal Immersion Heaters from Process Technology offer superior chemical resistance and outstanding performance. With watt densities up to 35 watts per square inch, these heaters are perfect for aqueous alkaline solutions, plating tanks, and more. Built with corrosion-resistant materials and safety features like a replaceable thermal protector, they ensure long service life and comply with cUL US Listed certifications.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE:For use in most aqueous alkaline solutions, and plating and phosphate tanks. Check solution recommendation chartwith your chemical supplier for proper sheath material selection.RUGGED CONSTRUCTION: Heavy wall metal sheaths available in:Steel.304 stainless steel.316 stainless steel.Titanium.OUTSTANDING PERFORMANCE: Watt densities up to 35 watts per square inch (5.4 w/cm2) ensure long service life.CORROSION RESISTANT HEAD: Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.SAFETY FEATURES:Grounded construction.Thermal protector built in. Replaceable P1 protector standard for solutions up to 180°F (82°C).Non-floating construction.CERTIFICATIONS: cULus listed (except steel) andCE compliant (except 600 volts).SIZES: 3,000 watts to 36,000 watts.VOLTAGES:200 to 600 volts.OPTIONS AVAILABLE (consult factory):Replaceable thermal protectors:P4: for solutions up to 230°F (110°C)P5: for solutions up to 300°F (149°C).Resettable thermal protectors:P2: for solutions up to 180°F (82°C).P6: for solutions up to 230°F (110°C)P7: for solutions up to 300°F (149°C).Special configurations and lengths.Longer wire and conduit lengths.Lower watt densities for highly viscous solutions.Temperature and level controls sized to match the heater (sold separately).All metal welded junction box.
Specifications Certifications
cUL US Listed

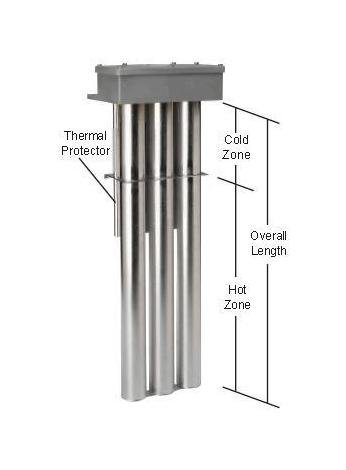

Specifications Hot Zone
49 " | 1245 mm
Specifications Manufacturer
Process Technology
Specifications Material
Titanium
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Replaceable thermal protector: P4: for solutions up to 230°F (110°C). | Replaceable thermal protector: P5: for solutions up to 300°F (149°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P6: for solutions up to 230°F (110°C). | Resettable thermal protector: P7: for solutions up to 300°F (149°C).
Specifications Overall Length
59 " | 1499 mm
Specifications Phase
Single | Three
Specifications Volts
480 V
Specifications Watts
30,000 W
Specifications Weight
75.0 lbs | 34.0 kg
