Titanium U Coils for Heating/Cooling Applications
Titanium U Coils for Heating/Cooling Applications
SKU:HEA-99ecb7
Premium titanium U Coils for efficient heating/cooling in chemical applications. Leak-free, durable, and high heat exchange efficiency.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Titanium U Coils for Heating/Cooling Applications
$399.99
Quantity: 1
Claim Your Seller Account
Titanium U Coils for Heating/Cooling Applications
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The UC Series U Coils offer unmatched performance in heating or cooling applications for alkaline or acid solutions and rinse tanks. With a heavy wall, 18-gauge titanium construction, these coils ensure superior chemical resistance and durability. Featuring a low profile design with 1-inch tubing, every inch of the coil surface is optimized for heat exchange. The leak-free operation and high-pressure rating of 100 PSI make installation and operation hassle-free. Options for special configurations, varying lengths, and different alloys are available to meet diverse needs.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: Wide variety of materials available for use in heating or cooling applications for alkaline or acid solutions and rinse tanks. Check solution guide or consult with your chemical supplier for proper sheath material.RUGGED CONSTRUCTION:Heavy wall, 18-gauge metal tubing available in steel, 316 stainless steel, and titanium.1â diameter tubing.1â MNPT fittings standard.OUTSTANDING PERFORMANCE: One-inch thick, low profile design. Every inch of coil surface is active exchange area. Ideal for small tanks with low heat exchange requirements.LEAK-FREE OPERATION: Single point connections reduce the potential for leaks and simplifies installation. One-inch MNPT connections standard.HIGH PRESSURE RATING: 100 PSI working pressure (steam or water).SIZES: .75 square ft. to 2.5 square ft. of exchange area standard.OPTIONS AVAILABLE (consult factory):Special configurations and lengths.Heavier gauge tubing.Zirconium, Hastelloy C® and other alloys available.Fluoropolymer coatings for corrosion protection at solution/atmospheric interface.Non-conductive isolator couplings.L-shaped configurations for bottom heat applications.Higher pressure ratings available.Hastelloy C® is a registered trademark of Haynes International, Inc.
Specifications Available Tubing
1/2 " | 5/8 " | 3/4 " | 1 " | 1-1/4 "

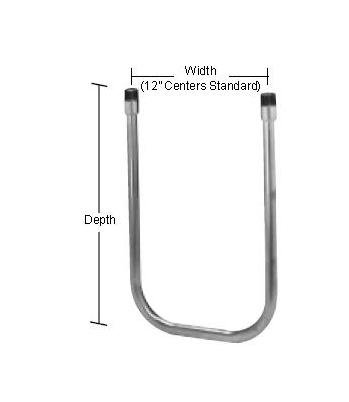

Specifications Depth
36 " | 914 mm
Specifications Exchange Area
1.50 ft²
Specifications Manufacturer
Process Technology
Specifications Material
Titanium
Specifications Shipping Weight
6.0 Pound
Specifications Weight
6.0 lbs | 2.7 kg

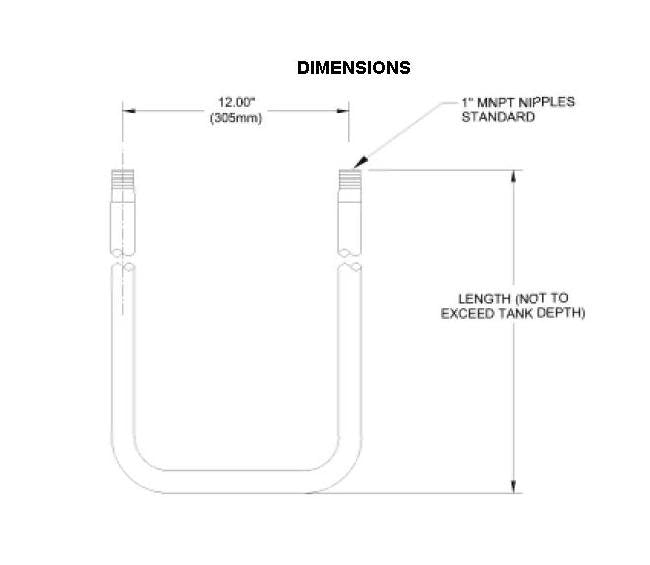

Specifications Width
12 " | 305 mm
