Titanium U Coils - High Performance Heating & Cooling Coils
Titanium U Coils - High Performance Heating & Cooling Coils
SKU:HEA-fd1137
Titanium U Coils - Superior chemical resistance, rugged construction & high performance. Ideal for small tanks.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Titanium U Coils - High Performance Heating & Cooling Coils
$3,499.99
Quantity: 1
Claim Your Seller Account
Titanium U Coils - High Performance Heating & Cooling Coils
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

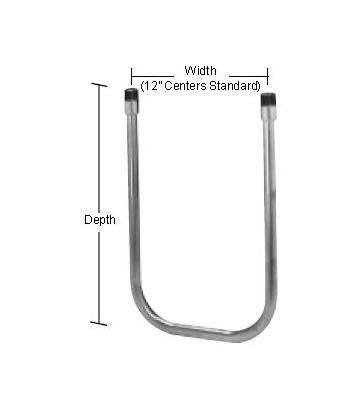

The Titanium UC Series U Coils offer superior chemical resistance, with a wide variety of materials suitable for heating or cooling applications in alkaline or acidic solutions. These coils feature rugged construction with heavy wall, 18-gauge metal tubing in steel, 316 stainless steel, and titanium. The one-inch thick, low profile design ensures maximum heat exchange efficiency, making them ideal for small tanks with low heat exchange requirements. With leak-free operation, high pressure rating, and various customization options available, these coils guarantee outstanding performance in diverse industrial settings.
Product Specifications
Features And Benefits Features And Benefits
SUPERIOR CHEMICAL RESISTANCE: Wide variety of materials available for use in heating or cooling applications for alkaline or acid solutions and rinse tanks. Check solution guide or consult with your chemical supplier for proper sheath material.RUGGED CONSTRUCTION:Heavy wall, 18-gauge metal tubing available in steel, 316 stainless steel, and titanium.1â diameter tubing.1â MNPT fittings standard.OUTSTANDING PERFORMANCE: One-inch thick, low profile design. Every inch of coil surface is active exchange area. Ideal for small tanks with low heat exchange requirements.LEAK-FREE OPERATION: Single point connections reduce the potential for leaks and simplifies installation. One-inch MNPT connections standard.HIGH PRESSURE RATING: 100 PSI working pressure (steam or water).SIZES: .75 square ft. to 2.5 square ft. of exchange area standard.OPTIONS AVAILABLE (consult factory):Special configurations and lengths.Heavier gauge tubing.Zirconium, Hastelloy C® and other alloys available.Fluoropolymer coatings for corrosion protection at solution/atmospheric interface.Non-conductive isolator couplings.L-shaped configurations for bottom heat applications.Higher pressure ratings available.Hastelloy C® is a registered trademark of Haynes International, Inc.
Specifications Available Tubing
1/2 " | 5/8 " | 3/4 " | 1 " | 1-1/4 "
Specifications Depth
60 " | 1524 mm
Specifications Exchange Area
2.5 ft²
Specifications Manufacturer
Process Technology
Specifications Material
Titanium
Specifications Shipping Weight
10.0 Pound
Specifications Weight
10.0 lbs | 4.5 kg

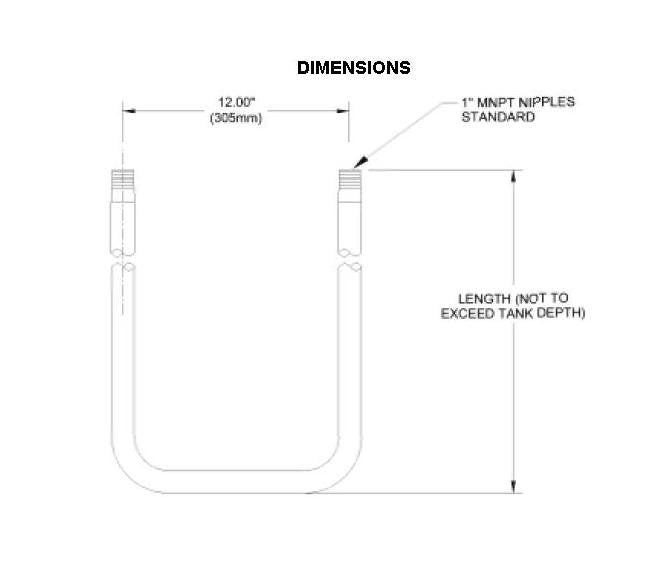

Specifications Width
12 " | 305 mm
