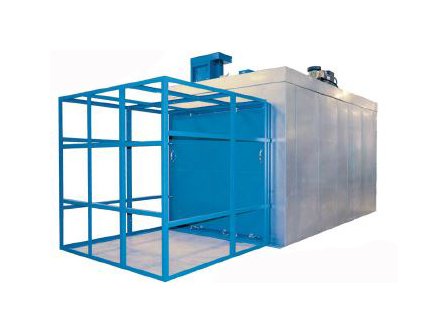

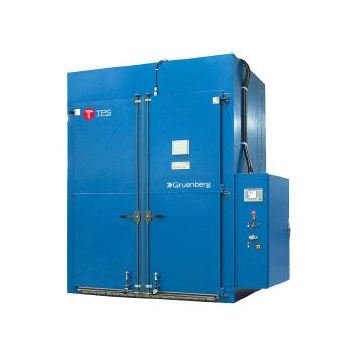

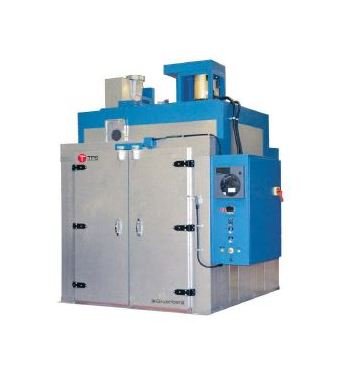

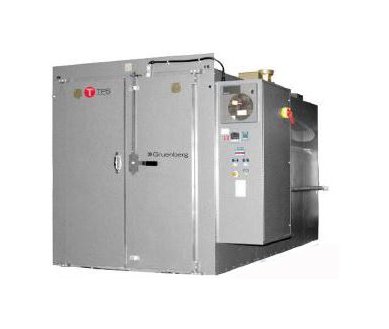

TK80C240, 240 Cubic feet (ft³) Capacity Truck-In Industrial Oven
TK80C240, 240 Cubic feet (ft³) Capacity Truck-In Industrial Oven
SKU:GRU-1df7db
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
TK80C240, 240 Cubic feet (ft³) Capacity Truck-In Industrial Oven
$49.99
Quantity: 1
Claim Your Seller Account
TK80C240, 240 Cubic feet (ft³) Capacity Truck-In Industrial Oven
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Gruenberg Oven Company designs and manufactures a complete line of standard and custom truck-in industrial ovens to accommodate a variety of thermal processing applications up to 1200°F. Our industrial truck-in ovens are ideally suited for powder coating, drum heating, aging, core hardening, drying, preheating, curing, and component testing. With additional options, these truck-in industrial ovens can also be used for applications such as paint baking, plastic curing, varnish baking, sterilizing, and rubber and epoxy curing.
Product Specifications
Specifications Air Flow
Comp. Horizontal
Specifications Circulation
22000 CFM
Specifications Exterior Depth
177 in
Specifications Exterior Height
88 in
Specifications Exterior Width
71 in
Specifications Features
Heavy-duty, fully welded structural steel frame | CHIL construction ensures minimal heat transfer from oven chamber to the exterior | Removable side and back walls for easy clean-up and maintenance | Lid is constructed using a structural steel frame to ensure sealing integrity | Insulation is moisture-proof, non-combustible, non-settling, and asbestos-free | Energy-efficient, Incoloy® sheathed, seamless tubular heaters | Heating elements are suspended in the plenum, which is adjacent to the process chamber so there is no radiant influence on the work in process
Specifications Heater Wattage
90 kW
Specifications Insulation Thickness Inches
3-low | 1-high
Specifications Interior Depth
120 in
Specifications Interior Height
72 in
Specifications Interior Volume
240 ft³
Specifications Interior Width
48 in
Specifications Loading Trucks For Gruenberg Truck In Ovens
Gruenberg has a complete line of standard trucks specially designed to work with our industrial truck in ovens.
Specifications Maximum Temperature
800 ºF
Specifications Shipping Weight
5880 lb
