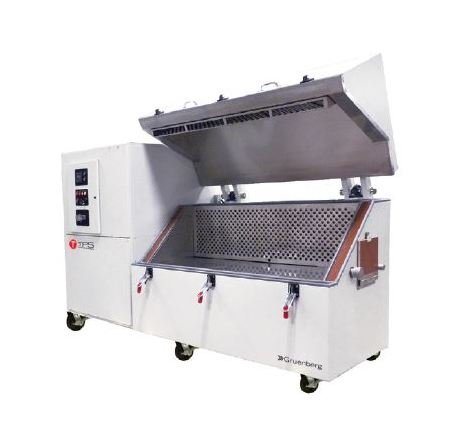

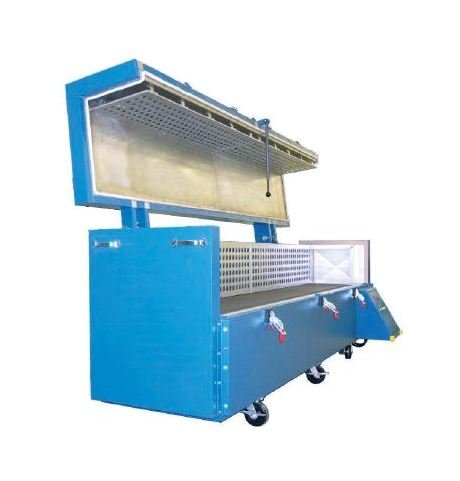

TL100C125 Top-Loading Industrial Oven for Burn-In, Calibration and Downhole Simulation

Name: TL100C125 Top-Loading Industrial Oven for Burn-In, Calibration and Downhole Simulation
Brand: Thermal Product Solutions
SKU: GRU-b774a1
Price: 49.99 USD
Availability: OutOfStock

SKU:GRU-b774a1

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Gruenberg designs and manufactures a complete line of standard and custom top-loading ovens to accommodate a variety of thermal processing applications. Top-loading ovens are designed to reach temperatures of 1000°F and are ideally suited for: Oil and gas drill sites Down-hole condition simulation Electronic instrument calibration Core hardening Preheating Component testing Stress relieving Heat treating Tempering The custom top-loading ovens simulate the down-hole thermal conditions in oil and gas drilling operations. The ovens can be used to calibrate electronic logging instruments and for drilling equipment burn-in. The ovens feature heavy duty dollies and can be used right at the drill site. Oven temperatures reach a maximum of 1000°F and accommodate various capacities ranging from 4.6 to 27 cubic feet. The ovens load from the top to allow heavy equipment to be loaded into the test chamber by crane.

Product Specifications

Specifications Air Flow

Horizontal

Specifications Capacity

12.5 ft³

Specifications Circulation

1000 CFM

Specifications Exterior Height

39 in | 99.1 cm

Specifications Exterior Length

54 in | 137.2 cm

Specifications Exterior Width

40 in | 101.6 cm

Specifications Heater Wattage

15 kW

Specifications Interior Height

30 in | 76.2 cm

Specifications Interior Length

30 in | 76.2 cm

Specifications Interior Width

24 in | 61 cm

Specifications Maximum Temperature

1000 ºF

Specifications Shipping Weight

750 lb
