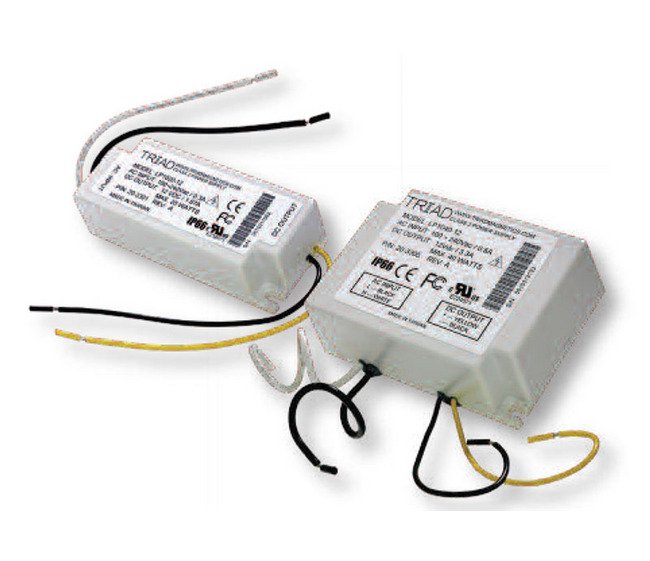

TLD1020/40 Series 20-40W Encapsulated Switching Power Supply
TLD1020/40 Series 20-40W Encapsulated Switching Power Supply
SKU:POW-ae452b
Reliable 20-40W switching power supply for indoor & outdoor applications, PFC-equipped with wide input range & high efficiency.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
TLD1020/40 Series 20-40W Encapsulated Switching Power Supply
$49.99
Quantity: 1
Claim Your Seller Account
TLD1020/40 Series 20-40W Encapsulated Switching Power Supply
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The TLD1020/40 Series features a robust 20-40 Watt single output switching power supply with Power Factor Correction (PFC), ideal for indoor and outdoor IP66/NEMA 4 applications. It offers a wide input voltage range, constant current models, high efficiency, and various protections for reliable performance. With compact dimensions and significant reliability, this power supply ensures stable power delivery in diverse environments.
Product Specifications
Connector Types Input Leads
5 in
Connector Types Input Wire
18 AWG
Connector Types Output Leads
5 in
Connector Types Output Wire
18 AWG
Emc Safety Specifications Class B Safety Approval
CE Mark (LVD) | UL/cUL 1310 | UL48
Emc Safety Specifications Emc Emissions
Compliant to 47CFR, Part 2, Part 15 and Cispr PUB, 22
Environmental Specifications Cooling
Convection Cooled Operation
Environmental Specifications Humidity
5 to 95 % RH, non-condensing

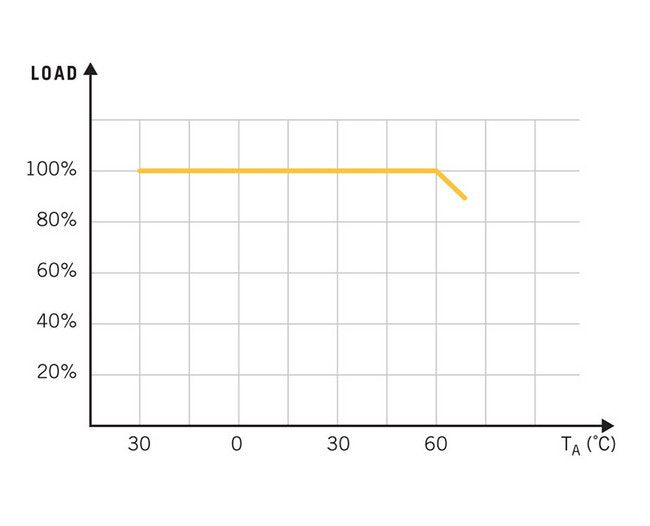

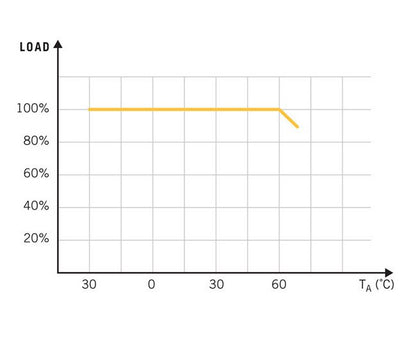

Environmental Specifications Operating Temperature
-30 to +60 Full Load, derate 1%/ºC from 60 to 70 max ºC
Environmental Specifications Storage Temperature
-40 to +85 ºC
Environmental Specifications Vibration
5 to 50 Hz, 2G 1 min/cycle, period of 60 min, each axis.

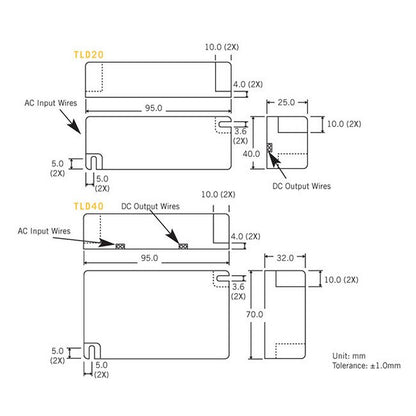

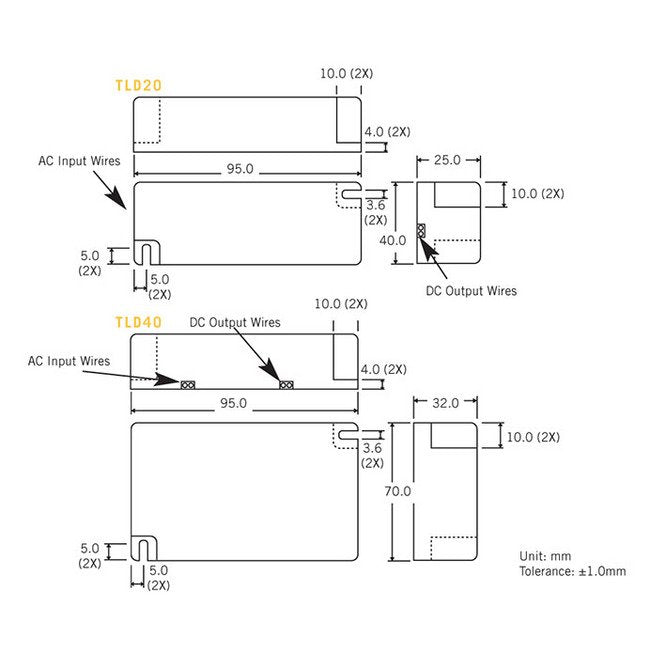

General Specifications Height H
1.260 in | 32 mm
General Specifications Length L
3.74 in | 95 mm
General Specifications Reliability Mtbf
>100k hrs. (Full Load & 25 ºC Operation)
General Specifications Warranty
3 years
General Specifications Weight
120 g
General Specifications Width W
2.76 in | 70 mm
Input Characteristics Input Frequency Range
47 to 63 Hz
Input Characteristics Input Voltage Ac
100 to 304 V
Input Characteristics Maximum Crest Factor Ipk
1.5
Input Characteristics Maximum Input Current At 115230 Vac
0.25 A | 0.5 A
Input Characteristics Maximum Inrush Current At 115 230 Vac Cold
5 A | 10 A
Input Characteristics Power Factor
0.9 at Full Load & 115 VAC
Output Characteristics Adjustable Output Range
Fixed
Output Characteristics Current Accuracy
±1% (when applicable)
Output Characteristics Line Regulation
±3.0 %
Output Characteristics Load Regulation
±3.0 %
Output Characteristics Minimum Hold Up Time At 120 Vac 80 Load
1/2 Cycle
Output Characteristics Over Current Protection Auto Recovery
120 %
Output Characteristics Over Voltage Protection Auto Recovery
120 %
Output Characteristics Ripple And Noise
±5 %
Output Characteristics Set Point Accuracy
±5 %
Specifications Current Dc
1050 mA
Specifications Efficiency
84 %
Specifications Type
Constant Current Models
Specifications Voltage
12 to 24 V (DC)
