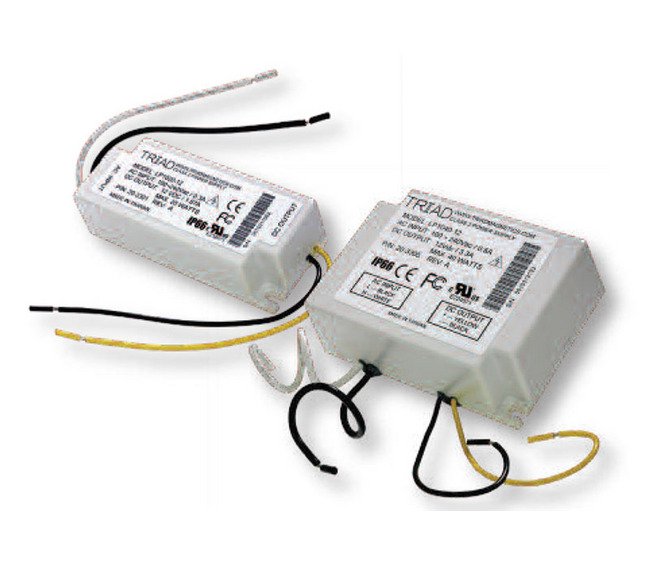

TLD1020/40 Series Encapsulated Switching Power Supply
TLD1020/40 Series Encapsulated Switching Power Supply
SKU:POW-23180e
20-40W Encapsulated Switching Power Supply for indoor & outdoor applications with PFC technology for efficient performance and compliance with EMC standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
TLD1020/40 Series Encapsulated Switching Power Supply
$49.99
Quantity: 1
Claim Your Seller Account
TLD1020/40 Series Encapsulated Switching Power Supply
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The TLD1020/40 Series offers reliable 20-40 Watt single output power supplies designed for indoor and outdoor IP66/NEMA 4 applications. With Power Factor Correction (PFC) technology, these constant current models ensure efficient performance. Featuring an adjustable output range, over-current protection, over-voltage protection, and compliance with EMC standards such as CE Mark, UL, and CISPR, these power supplies guarantee stability, safety, and long-term reliability. Ideal for a wide range of uses including LED lighting, telecommunications, and industrial equipment.
Product Specifications
Connector Types Input Leads
5 in
Connector Types Input Wire
18 AWG
Connector Types Output Leads
5 in
Connector Types Output Wire
18 AWG
Emc Safety Specifications Class B Safety Approval
CE Mark (LVD) | UL/cUL 1310 | UL48
Emc Safety Specifications Emc Emissions
Compliant to 47CFR, Part 2, Part 15 and Cispr PUB, 22
Environmental Specifications Cooling
Convection Cooled Operation
Environmental Specifications Humidity
5 to 95 % RH, non-condensing
Environmental Specifications Operating Temperature

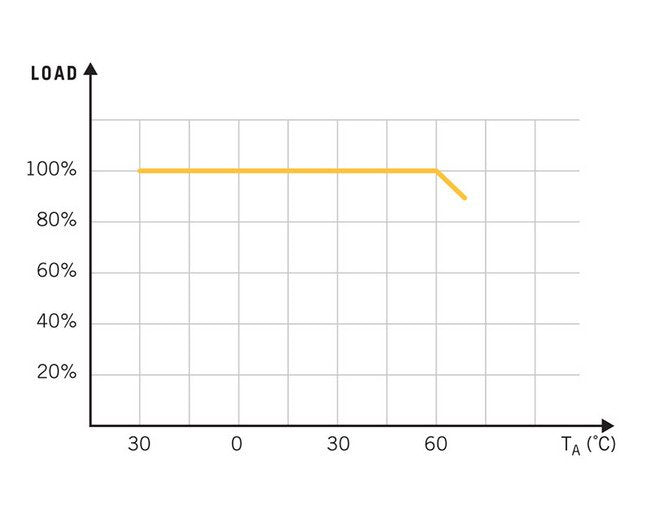

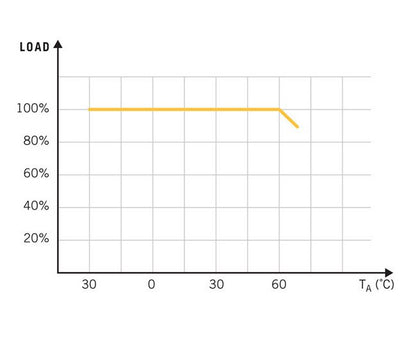

-30 to +60 Full Load, derate 1%/ºC from 60 to 70 max ºC
Environmental Specifications Storage Temperature
-40 to +85 ºC
Environmental Specifications Vibration
5 to 50 Hz, 2G 1 min/cycle, period of 60 min, each axis.

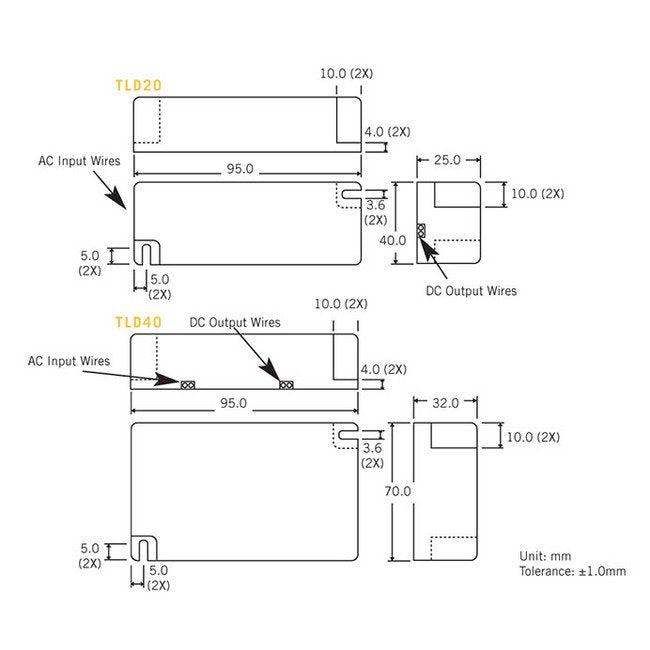

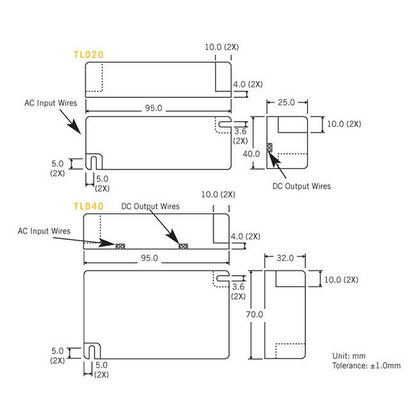

General Specifications Height H
0.97 in | 25 mm
General Specifications Length L
3.74 in | 95 mm
General Specifications Reliability Mtbf
>100k hrs. (Full Load & 25 ºC Operation)
General Specifications Warranty
3 years
General Specifications Weight
120 g
General Specifications Width W
1.57 in | 40 mm
Input Characteristics Input Frequency Range
47 to 63 Hz
Input Characteristics Input Voltage Ac
100 to 304 V
Input Characteristics Maximum Crest Factor Ipk
1.5
Input Characteristics Maximum Input Current At 115230 Vac
0.15 A | 0.3 A
Input Characteristics Maximum Inrush Current At 115 230 Vac Cold
5 A | 10 A
Input Characteristics Power Factor
0.9 at Full Load & 115 VAC
Output Characteristics Adjustable Output Range
Fixed
Output Characteristics Current Accuracy
±1% (when applicable)
Output Characteristics Line Regulation
±3.0 %
Output Characteristics Load Regulation
±3.0 %
Output Characteristics Minimum Hold Up Time At 120 Vac 80 Load
1/2 Cycle
Output Characteristics Over Current Protection Auto Recovery
120 %
Output Characteristics Over Voltage Protection Auto Recovery
120 %
Output Characteristics Ripple And Noise
±5 %
Output Characteristics Set Point Accuracy
±5 %
Specifications Current Dc
700 mA
Specifications Efficiency
84 %
Specifications Type
Constant Current Models
Specifications Voltage
12 to 24 V (DC)
