TLEU Series 40 mN·m Torque Limiter
TLEU Series 40 mN·m Torque Limiter
SKU:TLE-923fe6
Highly durable TLEU Series 40 mN·m Torque Limiter with magnetic hysteresis coupling for precise torque control.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
TLEU Series 40 mN·m Torque Limiter
$59.99
Quantity: 1
Claim Your Seller Account
TLEU Series 40 mN·m Torque Limiter
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

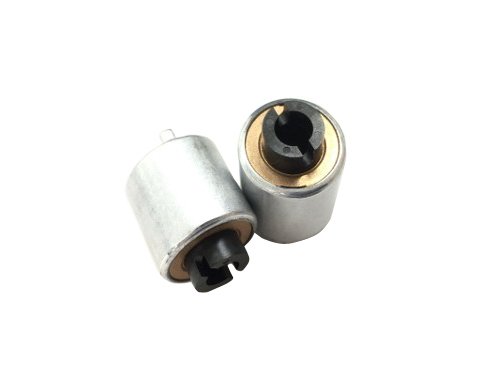

The TLEU1-618-40W Torque Limiter from the TLEU Series is designed for high durability and stability, offering a torque of 40 mN·m (408 gf·cm). With a compact design and magnetic hysteresis coupling, it ensures precise torque control in both clockwise (CW) and counterclockwise (CCW) directions. This torque limiter is ideal for applications requiring reliable torque limitation at a 6mm shaft diameter, making it a versatile choice for various industrial settings.
Product Specifications

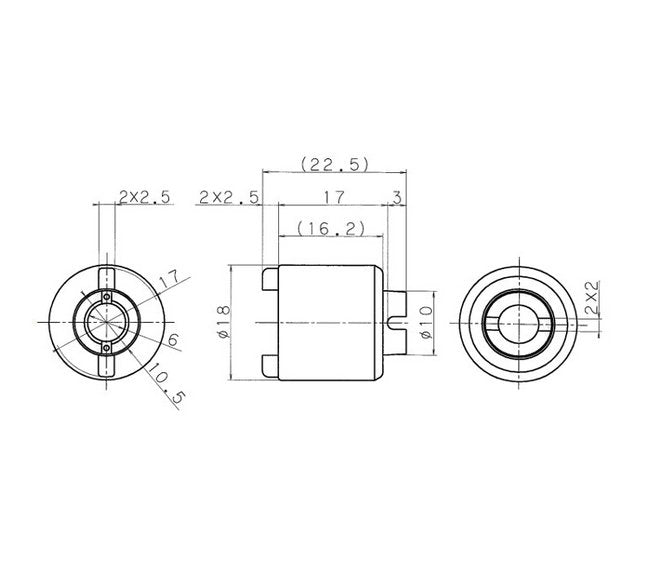

Basic Dimensions Diameter D
6 mm
Basic Dimensions Dimension A
22.5 mm
Basic Dimensions Dimension B
17.0 mm
Basic Dimensions Dimension C
16.2 mm
Specifications Application Shaft Diameter
6 mm
Specifications Code
560070
Specifications Rotating Direction
Clockwise (CW) | Counterclockwise (CCW)
Specifications Torque
40 mN·m | 408 gf·cm
