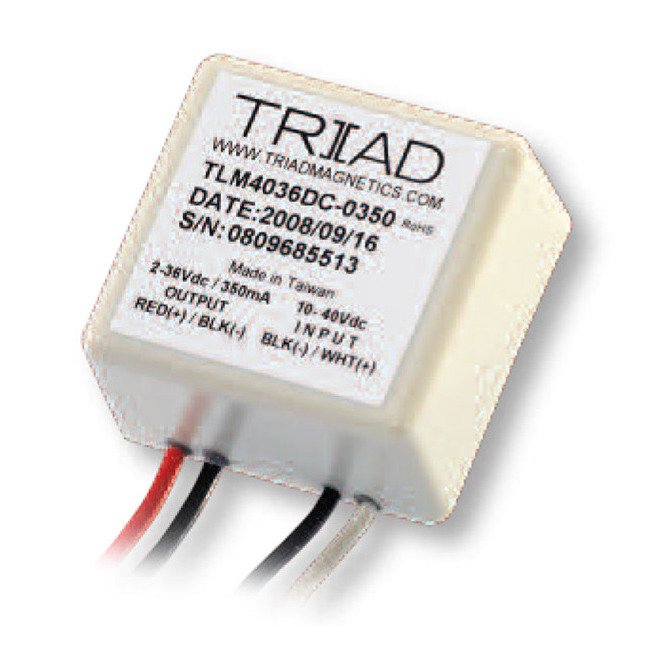

The TLM40 Series 26W Constant Current Encapsulated DC/DC Switching Power Supply is designed for both indoor and outdoor applications, meeting IP66 / NEMA 4 standards. With a maximum power output of 26W, this power supply boasts an adjustable output range from 2-24V, delivering high efficiency at 90%. It features short circuit protection with auto-recovery, compact dimensions of 1.26in L x 1.22in W x 0.59in H, and weighs only 120g. Operating reliably in temperatures ranging from -40 to +60°C, this power supply is ideal for a wide range of commercial, industrial, and institutional applications.
Product Specifications
Connector Types Input Leads
5 in
Connector Types Input Wire
18 AWG
Environmental Specifications Cooling
Convection Cooled Operation
Environmental Specifications Humidity
5 to 95 % RH, non-condensing

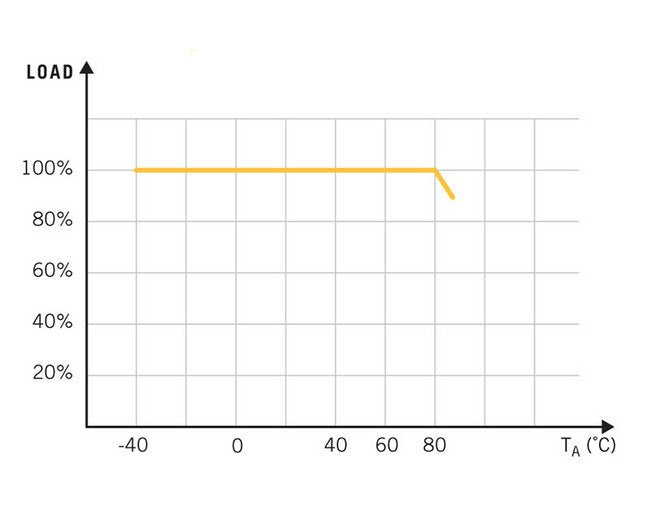

Environmental Specifications Operating Temperature
-40 to +60 ºC Full Load, derate 1%/ºC from 60 to Z570 ºC max ºC
Environmental Specifications Reliability
>100k Hours MTBF (full load & 25 ºC)
Environmental Specifications Storage Temperature
-40 to +80 ºC
Environmental Specifications Vibration
5 to 50 Hz, 2G 1 min/cycle, period of 60 min, each axis.
General Specifications Efficiency
90 %

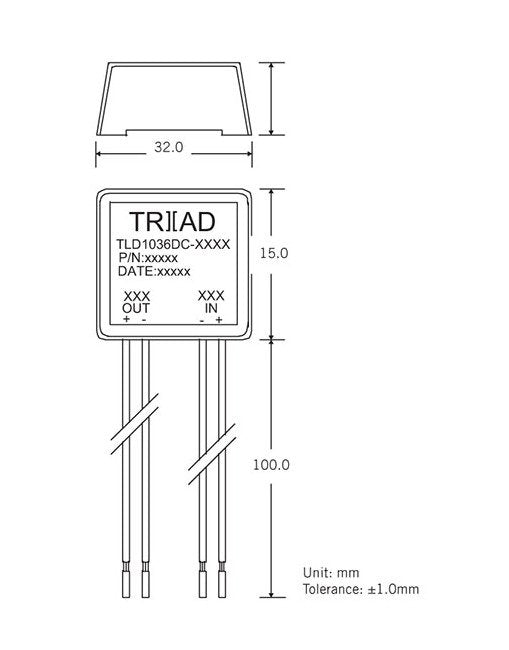

General Specifications Height H
0.59 in | 15 mm
General Specifications Length L
1.26 in | 32 mm
General Specifications Warranty
3 years
General Specifications Weight
120 g
General Specifications Width W
1.22 in | 31 mm
Output Characteristics Adjustable Output Range
Fixed
Output Characteristics Current Accuracy
±5 %
Output Characteristics Output Voltage Dc
2-24 V
Output Characteristics Short Circuit Protection
Auto - Recovery
Specifications Current
0.7 A
Specifications Input Voltage Dc
28 V
Specifications Maximum Power
16.8 W
