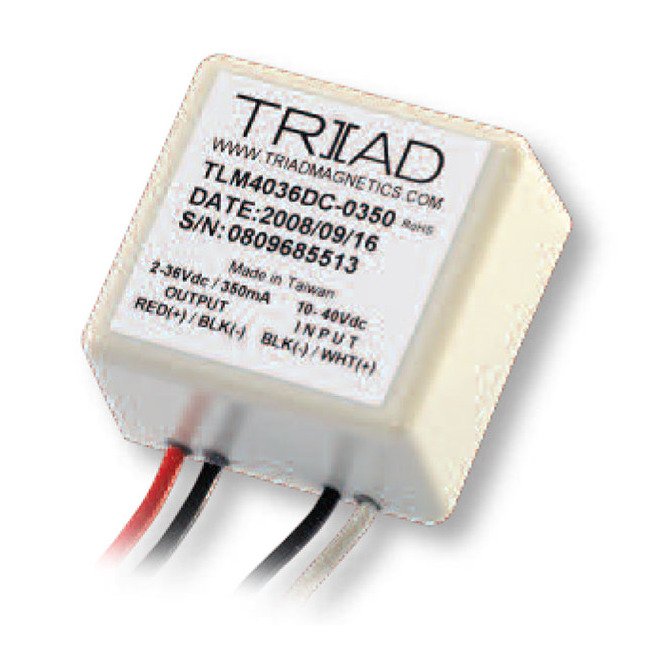

TLM40 Series 26W Constant Current DC/DC Switching Power Supply
TLM40 Series 26W Constant Current DC/DC Switching Power Supply
SKU:POW-638c7c
Highly efficient 26W DC/DC power supply for indoor & outdoor use, IP66/NEMA 4 rated.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
TLM40 Series 26W Constant Current DC/DC Switching Power Supply
$59.99
Quantity: 1
Claim Your Seller Account
TLM40 Series 26W Constant Current DC/DC Switching Power Supply
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The TLM40 Series 26W Constant Current DC/DC Switching Power Supply is designed for both indoor and outdoor applications, meeting IP66/NEMA 4 standards. With an input voltage of 12V and maximum power of 10W, it offers adjustable output range, short circuit protection, and high efficiency of 90%. This power supply ensures reliable performance in harsh environments with a three-year warranty, compact design, and convection cooling. Ideal for institutional and government buyers seeking durable, high-quality power solutions.
Product Specifications
Connector Types Input Leads
5 in
Connector Types Input Wire
18 AWG
Environmental Specifications Cooling
Convection Cooled Operation
Environmental Specifications Humidity
5 to 95 % RH, non-condensing
Environmental Specifications Operating Temperature

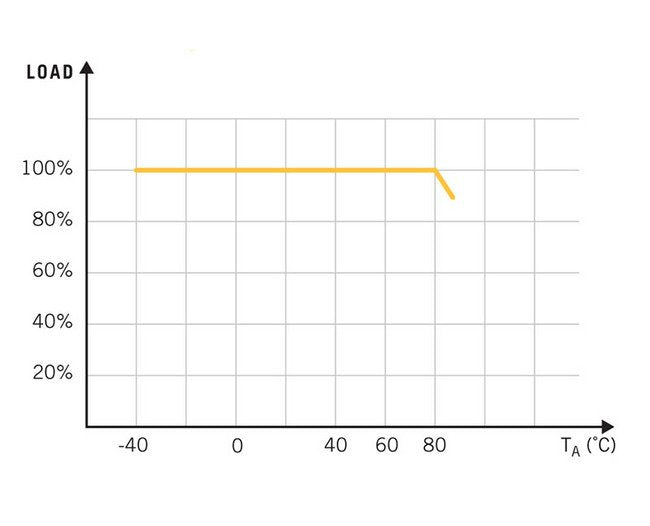

-40 to +60 ºC Full Load, derate 1%/ºC from 60 to Z570 ºC max ºC
Environmental Specifications Reliability
>100k Hours MTBF (full load & 25 ºC)
Environmental Specifications Storage Temperature
-40 to +80 ºC
Environmental Specifications Vibration
5 to 50 Hz, 2G 1 min/cycle, period of 60 min, each axis.
General Specifications Efficiency
90 %

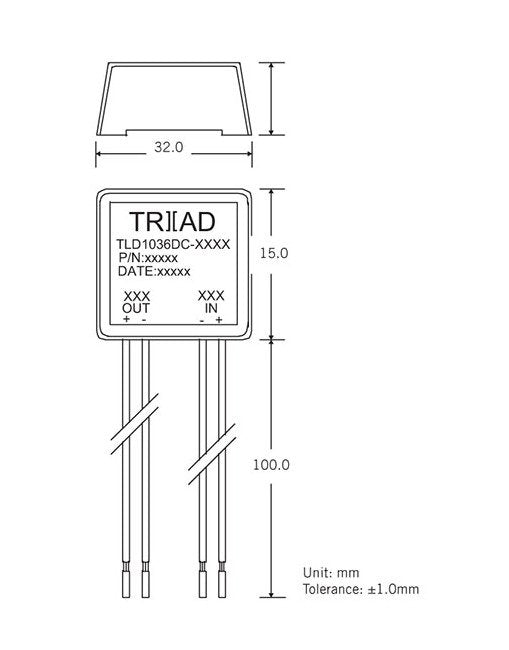

General Specifications Height H
0.59 in | 15 mm
General Specifications Length L
1.26 in | 32 mm
General Specifications Warranty
3 years
General Specifications Weight
120 g
General Specifications Width W
1.22 in | 31 mm
Output Characteristics Adjustable Output Range
Fixed
Output Characteristics Current Accuracy
±5 %
Output Characteristics Output Voltage Dc
12.0 V
Output Characteristics Short Circuit Protection
Auto - Recovery
Specifications Current
1.0 A
Specifications Input Voltage Dc
12 V
Specifications Maximum Power
10.00 W
