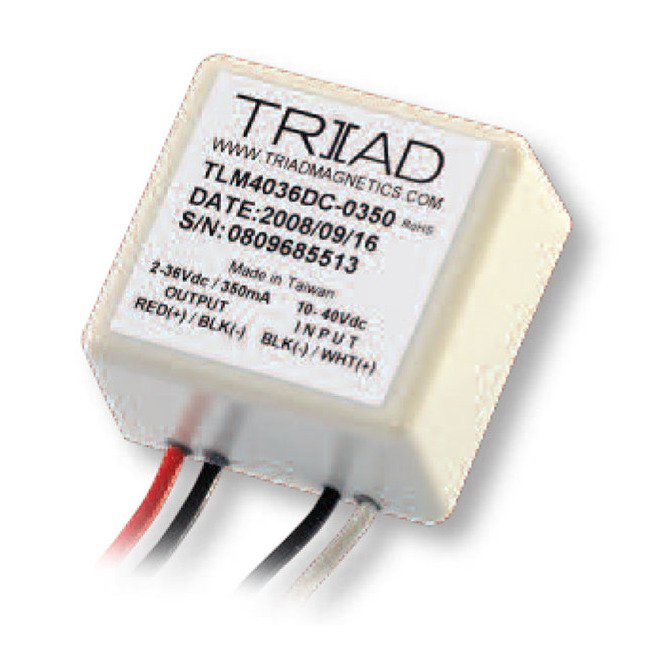

TLM40 Series 26W Max Constant Current DC/DC Power Supply
TLM40 Series 26W Max Constant Current DC/DC Power Supply
SKU:POW-924c60
High-performance 26W Constant Current DC/DC Power Supply w/ IP66/NEMA 4 enclosure. Ideal for indoor and outdoor use.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
TLM40 Series 26W Max Constant Current DC/DC Power Supply
$79.99
Quantity: 1
Claim Your Seller Account
TLM40 Series 26W Max Constant Current DC/DC Power Supply
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The TLM40 Series 26 Watt Max Constant Current Encapsulated DC/DC Switching Power Supply is a robust solution designed for both indoor and outdoor IP66/NEMA 4 applications. With an input voltage of 32V, current of 0.350A, and maximum power output of 9.8W, this power supply offers adjustable output range from 2-28V, ensuring precise and reliable performance. It features short circuit protection with auto-recovery, high efficiency of 90%, and a warranty of 3 years. Operating in temperatures ranging from -40 to +60 °C and meeting stringent reliability standards, this power supply is ideal for various institutional and commercial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Connector Types Input Leads
5 in
Connector Types Input Wire
18 AWG
Environmental Specifications Cooling
Convection Cooled Operation
Environmental Specifications Humidity
5 to 95 % RH, non-condensing

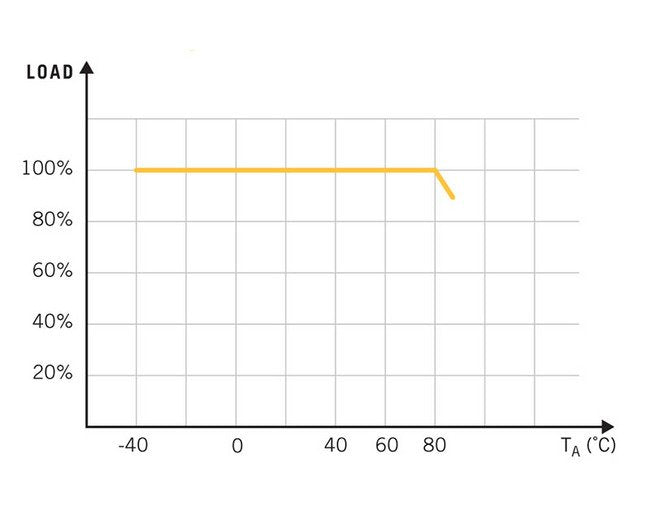

Environmental Specifications Operating Temperature
-40 to +60 ºC Full Load, derate 1%/ºC from 60 to Z570 ºC max ºC
Environmental Specifications Reliability
>100k Hours MTBF (full load & 25 ºC)
Environmental Specifications Storage Temperature
-40 to +80 ºC
Environmental Specifications Vibration
5 to 50 Hz, 2G 1 min/cycle, period of 60 min, each axis.
General Specifications Efficiency
90 %

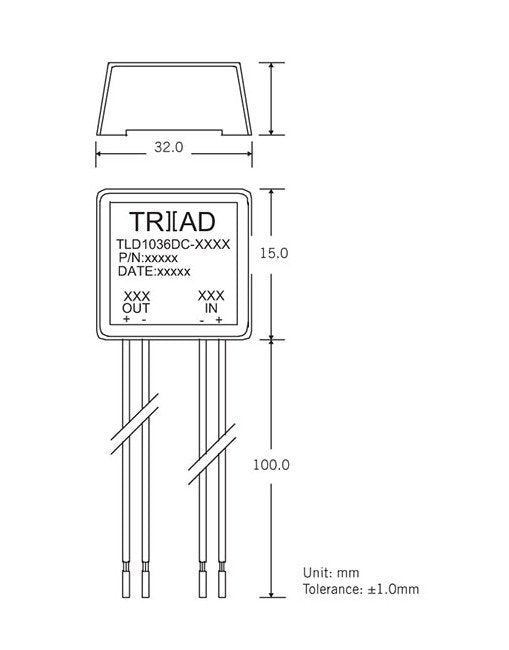

General Specifications Height H
0.59 in | 15 mm
General Specifications Length L
1.26 in | 32 mm
General Specifications Warranty
3 years
General Specifications Weight
120 g
General Specifications Width W
1.22 in | 31 mm
Output Characteristics Adjustable Output Range
Fixed
Output Characteristics Current Accuracy
±5 %
Output Characteristics Output Voltage Dc
2-28 V
Output Characteristics Short Circuit Protection
Auto - Recovery
Specifications Current
0.350 A
Specifications Input Voltage Dc
32 V
Specifications Maximum Power
9.8 W
