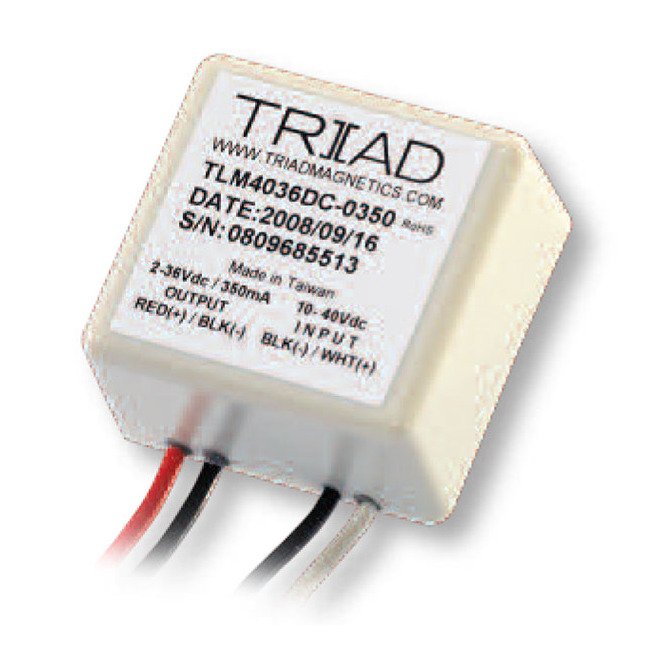

The TLM40 Series Constant Current Encapsulated DC/DC Switching Power Supply is a high-efficiency solution perfect for both indoor and outdoor IP66/NEMA 4 applications. With a maximum power output of 26W, this power supply boasts an adjustable fixed output range, current accuracy of ±5%, and auto-recovery short circuit protection. Designed for reliability, it features a 3-year warranty, 90% efficiency, and compact dimensions. Operating in a wide temperature range and with excellent humidity and vibration tolerance, this power supply ensures long-term performance in diverse environments.
Product Specifications
Connector Types Input Leads
5 in
Connector Types Input Wire
18 AWG
Environmental Specifications Cooling
Convection Cooled Operation
Environmental Specifications Humidity
5 to 95 % RH, non-condensing

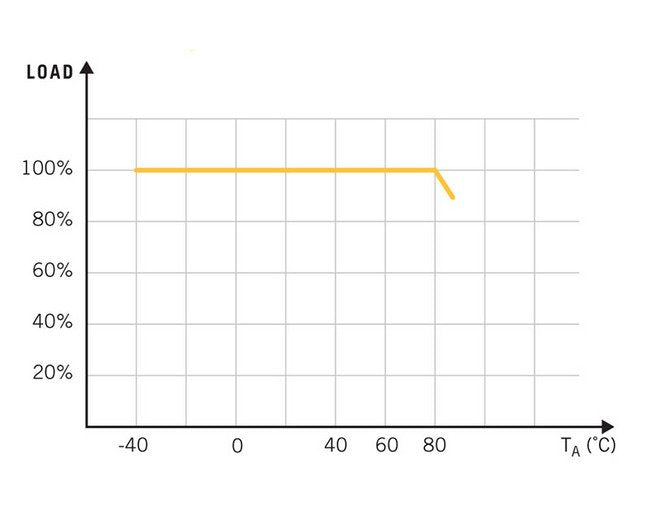

Environmental Specifications Operating Temperature
-40 to +60 ºC Full Load, derate 1%/ºC from 60 to Z570 ºC max ºC
Environmental Specifications Reliability
>100k Hours MTBF (full load & 25 ºC)
Environmental Specifications Storage Temperature
-40 to +80 ºC
Environmental Specifications Vibration
5 to 50 Hz, 2G 1 min/cycle, period of 60 min, each axis.
General Specifications Efficiency
90 %

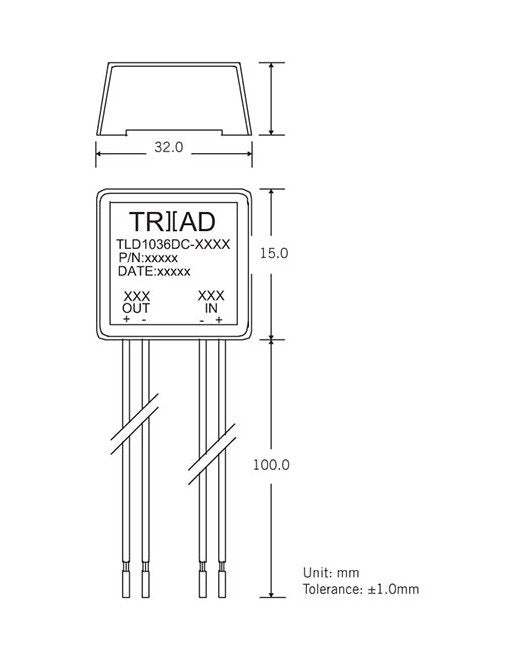

General Specifications Height H
0.59 in | 15 mm
General Specifications Length L
1.26 in | 32 mm
General Specifications Warranty
3 years
General Specifications Weight
120 g
General Specifications Width W
1.22 in | 31 mm
Output Characteristics Adjustable Output Range
Fixed
Output Characteristics Current Accuracy
±5 %
Output Characteristics Output Voltage Dc
24.0 V
Output Characteristics Short Circuit Protection
Auto - Recovery
Specifications Current
0.7 A
Specifications Input Voltage Dc
24 V
Specifications Maximum Power
15.4 W
