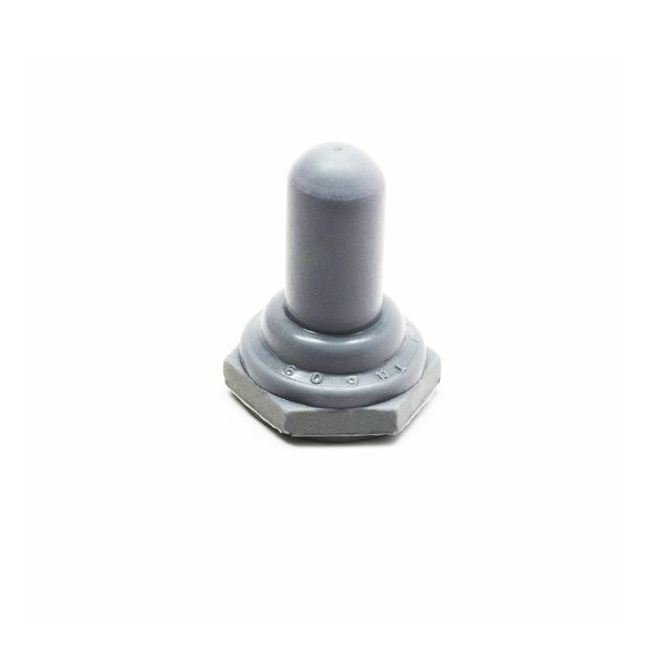

Toggle Switch Boot - 7/16-32 UN-2B Thread, 0.219in Lever, 0.885in Boot Height

Name: Toggle Switch Boot - 7/16-32 UN-2B Thread, 0.219in Lever, 0.885in Boot Height
Brand: ZAGO Manufacturing
SKU: SWI-0a1000
Price: 24.99 USD
Availability: OutOfStock

SKU:SWI-0a1000

ZAGO's Silicone Rubber Toggle Switch Boot - top-notch protection in every condition!

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Protect your switches in any environment with ZAGO's Silicone Rubber Toggle Switch Boot. This IP68-rated boot features a Unified National Coarse Thread design (7/16-32 UN-2B) with outstanding resistance to fungus, acids, ozone, and more. With a durometer of 50 and a temperature range of -93 to +400°F, this boot is ideal for aerospace, industrial, marine, medical, and military applications, ensuring superior protection and longevity.

Product Specifications

Specifications Applications

Specifications Base Width Hex

0.625 in

Specifications Boot Height

0.885 in

Specifications Bushing Thread Size Unified

7/16-32 UN-2B

Specifications Color

Black | Gray

Specifications Durometer

Specifications Enclosure Protection

IP68 (Under Normal Conditions)

Specifications External Pressure Range

15 psi

Specifications Internal Pressure Range

15 psi

Specifications Material

Silicone Rubber Conforms to A-A-59588

Specifications Maximum Lever Diameter

0.219 in

Specifications Mounting Nut

Corrosion Resistant - Nickel Plated Brass

Specifications Resistant To

Specifications Temperature Range

-93 to +400 ÂºF

Specifications Thread Type

Unified National Coarse Thread (UNC)
