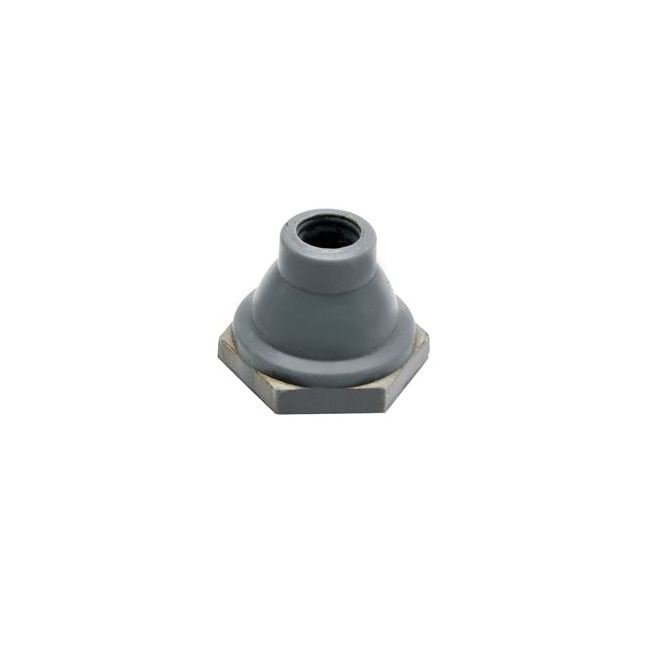

Toggle Switch Boot - 7/16-32 UN-2B Thread, 0.250in Lever Diameter, 0.55in Boot Height

Name: Toggle Switch Boot - 7/16-32 UN-2B Thread, 0.250in Lever Diameter, 0.55in Boot Height
Brand: ZAGO Manufacturing
SKU: SWI-f17577
Price: 24.99 USD
Availability: OutOfStock

SKU:SWI-f17577

Experience unmatched environmental protection with ZAGO's Toggle Switch Boot. Ideal for aerospace, marine, and industrial use.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Toggle Switch Boot by ZAGO provides unparalleled protection in the harshest environments. With a Bushing Thread Size of 7/16-32 UN-2B, a Maximum Lever Diameter of 0.250 inches, and a Boot Height of 0.55 inches, this silicone rubber boot excels in sealing against water, gas, dirt, and more. Resistant to fungus, acids, ozone, and extreme temperatures from -93 to +400°F, it meets IP68 and military standards, making it ideal for aerospace, marine, and industrial applications.

Product Specifications

Specifications Applications

Specifications Base Width Hex

0.625 in

Specifications Boot Height

0.55 in

Specifications Bushing Thread Size Unified

7/16-32 UN-2B

Specifications Color

Black | Gray

Specifications Durometer

Specifications Enclosure Protection

IP68 (Under Normal Conditions)

Specifications External Pressure Range

15 psi

Specifications Internal Pressure Range

15 psi

Specifications Material

Silicone Rubber Conforms to A-A-59588

Specifications Maximum Lever Diameter

0.250 in

Specifications Mounting Nut

Corrosion Resistant - Nickel Plated Brass

Specifications Resistant To

Specifications Temperature Range

-93 to +400 ÂºF

Specifications Thread Type

Unified National Coarse Thread (UNC)
