Tomoe 700S Semi Lugged Wafer Butterfly Valves
$349.99
Quantity: 1
Claim Your Seller Account
Tomoe 700S Semi Lugged Wafer Butterfly Valves
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

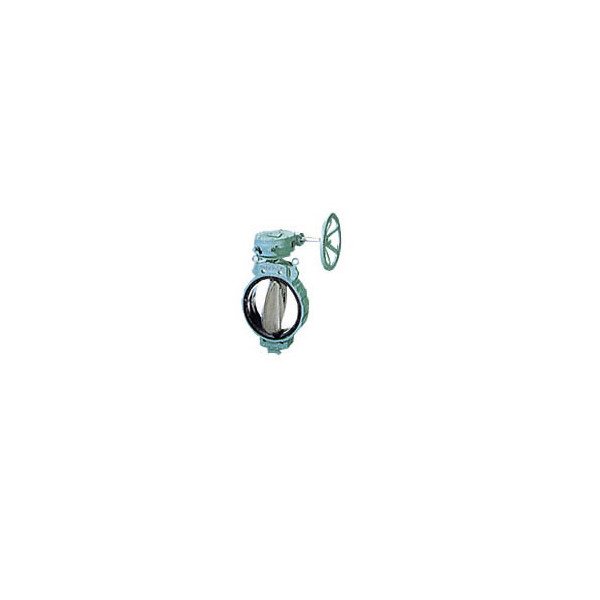

The Tomoe 700S Semi Lugged Wafer Butterfly Valves, part of the Series 700S, are meticulously designed for marine and industrial applications. With over 30 years of proven performance, these valves offer reliable construction and features to ensure trouble-free operation with minimal maintenance. They are immediate replacements for the discontinued models FIG.700E and 700K, featuring the same design elements and construction, excluding alignment holes. These valves boast interchangeable seat and Disc assembly designs and align perfectly with 700E/K face-to-face dimensions, meeting the highest industry standards.
Product Specifications

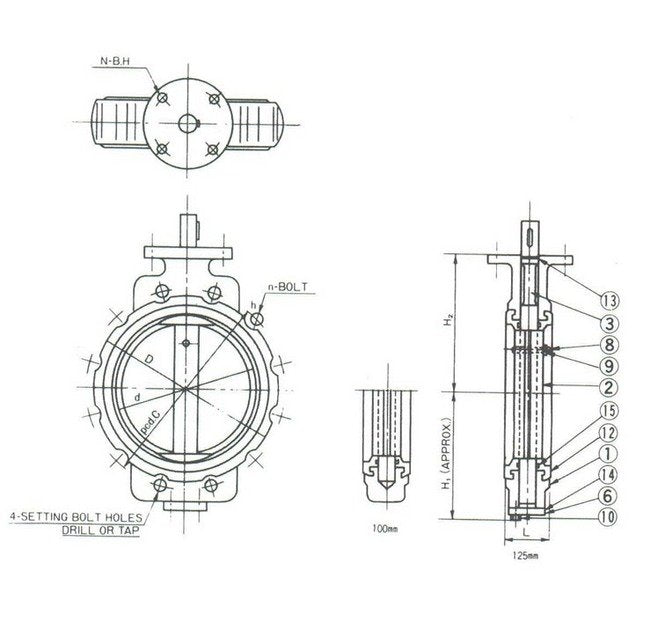

Dimensional Information A Min Internal Diameters Of Piping
118 mm
Dimensional Information C Ansi 125lb150lb
8.50 in
Dimensional Information C Bs 4504 Np10
210 mm
Dimensional Information C Jis 10k
210 mm
Dimensional Information C Jis 5k
200 mm
Dimensional Information D
193 mm
Dimensional Information H1
132 mm
Dimensional Information H2
165 mm
Dimensional Information L
55.0 mm
Features 0
1. Raised Seat RingThe central part of seat ring is raised so that the disc is thrust into it when the valve is closed, and the resilient force of elastomer maintains bubble- tight shutoff. Various types of material are available for the seat ring to meet with service requirement.2. Rounded Dove-Tail DesignThe unique rounded dove-tail design net only makes it easy for replacement of seat ring but also prevents it from stripping off the body. This design eliminates the need of gasket when butterfly valve is installed in between piping flanges.3. Tripple SealsIn addition to the primary seal between the seat ring and disc, two O-rings are provided on the top and bottom seat ring glands to form the secondary seal. Another "0"ring on the upper item gland serves as the third seal for prevention of fluid leakage and intrusion of dusts. This triple sealing system ensures non-leakage. The stainless steel housings for "0"rings on the seat ring glands help to stiffen them up and improve wear resistance.
Flange Information Ansi 125lb150lb Effective Screw Hexagon Bolts
44 mm
Flange Information Ansi 125lb150lb Effective Screw Long Bolts Le
45 mm
Flange Information Ansi 125lb150lb Hexagon Bolts
U 3/4
Flange Information Ansi 125lb150lb Hexagon Bolts Length
50 mm
Flange Information Ansi 125lb150lb Long Bolts And Nuts
U 3/4
Flange Information Ansi 125lb150lb Long Bolts Length
155 mm
Flange Information Ansi 125lb150lb Number Of Hexagon Bolts
8
Flange Information Ansi 125lb150lb Number Of Long Bolts
8
Flange Information Ansi 125lb150lb Number Of Threaded Bolt Holes
4
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | BS10E | DIN 10K | ISO PN10 | JIS 10K | JIS 5K
Flange Information Bs4504np10din Pn10 Tapped Hexagon Bolts
M16
Flange Information Bs4504np10din Pn10 Tapped Number Of Hexagon B
8
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
50 mm
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
45 mm
Flange Information Jis 10k Hexagon Bolts
M20
Flange Information Jis 10k Hexagon Boltsnuts
M20
Flange Information Jis 10k Hexagon Boltsnuts Length
120 mm
Flange Information Jis 10k Hexagon Bolts Length
45 mm
Flange Information Jis 10k Number Of Hexagon Bolts
8
Flange Information Jis 10k Number Of Hexagon Boltsnuts
8
Flange Information Jis 10k Number Of Threaded Bolt Holes
4
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
40 mm
Flange Information Jis 5k Effective Screw Hexagon Bolts Length
38 mm
Flange Information Jis 5k Hexagon Bolts
M16
Specifications Body Material
Cast Iron (FC250/A126 Class B)
Specifications Disc Material
304 Stainless Steel (SCS13/CF8) | Aluminum Bronze | Ductile Iron
Specifications Seat Material
EPDM | NBR
Specifications Size
125 - 5"
Specifications Stem Material
403 Stainless Steel (SUS403)
