Tomoe 700S Semi Lugged Wafer Butterfly Valves

Tomoe 700S Semi Lugged Wafer Butterfly Valves

VAL-eb999e

Tomoe 700S Butterfly Valves: Reliable, durable, and compliant for marine and industrial applications.

$950.00
$950.00
Sale

Initiate Order

Tomoe 700S Semi Lugged Wafer Butterfly Valves

Tomoe 700S Semi Lugged Wafer Butterfly Valves

$950.00

Quantity: 1

Claim Your Seller Account

Tomoe 700S Semi Lugged Wafer Butterfly Valves

Tomoe 700S Semi Lugged Wafer Butterfly Valves

$950.00

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

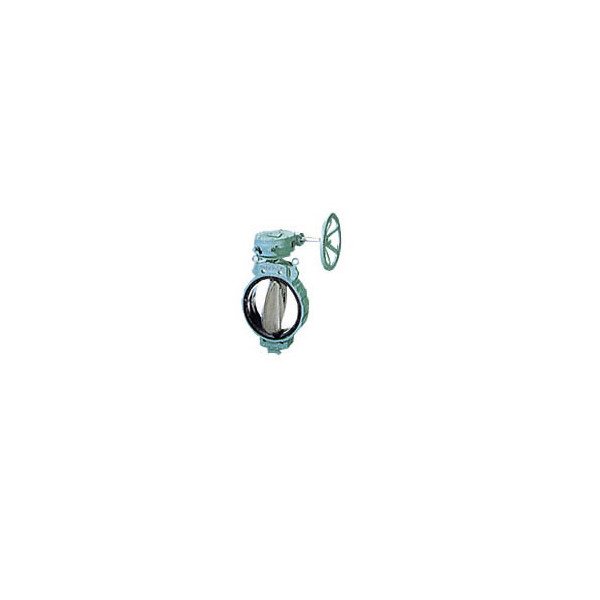

The Tomoe 700S Semi Lugged Wafer Butterfly Valves are expertly crafted for marine and industrial applications with over 30 years of proven reliability. Designed as immediate replacements for the discontinued FIG.700E and 700K models, these valves feature interchangeable seat and disc assembly designs. Notable features include a raised seat ring for bubble-tight shutoff, a unique rounded dove-tail design for easy seat ring replacement, and a triple sealing system ensuring non-leakage. With a durable construction of cast iron and various seat and disc material options, these valves offer a reliable solution for a wide range of applications.

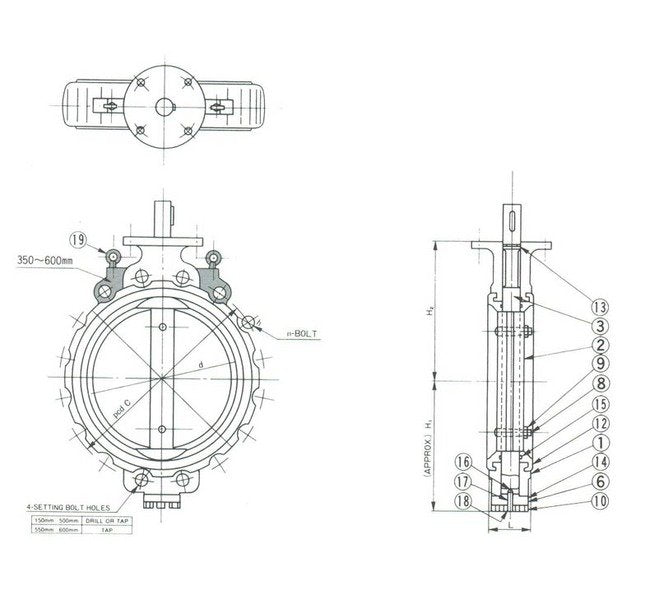

Product Specifications

Dimensional Information A Min Internal Diameters Of Piping
509 mm
Dimensional Information C Jis 10k
680 mm
Dimensional Information C Jis 5k
665 mm
Dimensional Information D
653 mm
Dimensional Information H1
417 mm
Dimensional Information H2
460 mm
Dimensional Information L
150 mm
Features 0
1. Raised Seat RingThe central part of seat ring is raised so that the disc is thrust into it when the valve is closed, and the resilient force of elastomer maintains bubble- tight shutoff. Various types of material are available for the seat ring to meet with service requirement.2. Rounded Dove-Tail DesignThe unique rounded dove-tail design net only makes it easy for replacement of seat ring but also prevents it from stripping off the body. This design eliminates the need of gasket when butterfly valve is installed in between piping flanges.3. Tripple SealsIn addition to the primary seal between the seat ring and disc, two O-rings are provided on the top and bottom seat ring glands to form the secondary seal. Another "0"ring on the upper item gland serves as the third seal for prevention of fluid leakage and intrusion of dusts. This triple sealing system ensures non-leakage. The stainless steel housings for "0"rings on the seat ring glands help to stiffen them up and improve wear resistance.
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | BS10E | DIN 10K | ISO PN10 | JIS 10K | JIS 5K
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
60 mm
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
66 mm
Flange Information Jis 10k Hexagon Bolts
M30
Flange Information Jis 10k Hexagon Boltsnuts
M30
Flange Information Jis 10k Hexagon Boltsnuts Length
290 mm
Flange Information Jis 10k Hexagon Bolts Length
80 mm
Flange Information Jis 10k Number Of Hexagon Bolts
8
Flange Information Jis 10k Number Of Hexagon Boltsnuts
20
Flange Information Jis 10k Number Of Threaded Bolt Holes
16
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
50 mm
Flange Information Jis 5k Effective Screw Hexagon Bolts Length
54 mm
Flange Information Jis 5k Hexagon Bolts
M24
Flange Information Jis 5k Hexagon Boltsnuts
M24
Flange Information Jis 5k Hexagon Boltsnuts Length
265 mm
Flange Information Jis 5k Hexagon Bolts Length
65 mm
Flange Information Jis 5k Number Of Hexagon Bolts
8
Flange Information Jis 5k Number Of Hexagon Boltsnuts
20
Flange Information Jis 5k Number Of Threaded Bolt Holes
16
Specifications Actuators
Electric Motor | Pneumatic Cylinder | Worm Gear
Specifications Body Material
Cast Iron (FC250/A126 Class B)
Specifications Body Shell Test Hydraulic
1.5 MPa
Specifications Coating
Lacquer primer finish (Munsell N7)
Specifications Disc Material
304 Stainless Steel (SCS13/CF8) | Aluminum Bronze | Ductile Iron
Specifications Maxworking Pressure
1.0 MPa
Specifications Seat Leak Test Pneumatic
1.1 MPa
Specifications Seat Material
EPDM | NBR
Specifications Size
550 - 30"
Specifications Stem Material
403 Stainless Steel (SUS403)
Specifications Weight
191 kg
Specifications Working Temperature Range
EPDM: -20° to 120°C | NBR: -10° to 80°C
