Tomoe 700S Wafer Butterfly Valves
Tomoe 700S Wafer Butterfly Valves
SKU:VAL-5851d4

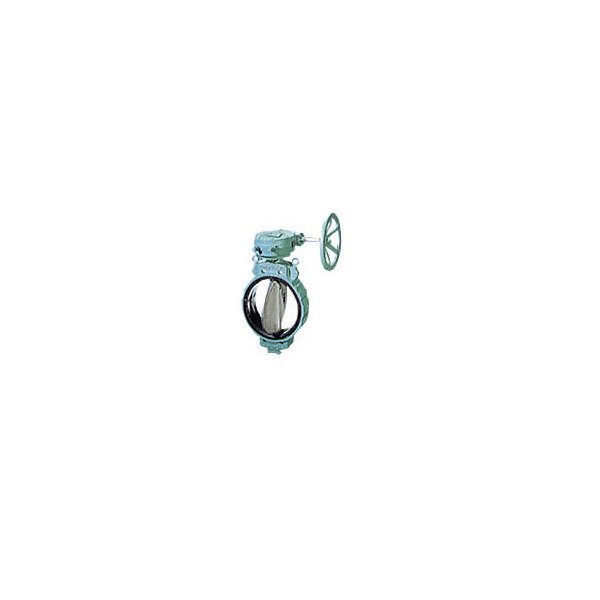

Reliable, low-maintenance Tomoe 700S Wafer Butterfly Valves for marine and industrial use. Direct replacements for FIG.700E/K models, with interchangeable assembly designs.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Tomoe 700S Wafer Butterfly Valves
$129.99
Quantity: 1
Claim Your Seller Account
Tomoe 700S Wafer Butterfly Valves
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Tomoe 700S Wafer Butterfly Valves from the Series 700S are versatile valves suitable for marine and industrial applications. With over 30 years of proven reliability, these valves offer trouble-free operation with minimal maintenance requirements. Designed as immediate replacements for FIG.700E and 700K models, they feature a robust construction and identical design elements, except for alignment holes. Offering interchangeability with seat and disc assembly designs, these valves maintain the same face-to-face dimensions as the 700E/K models, ensuring seamless integration into existing systems.
Product Specifications
Dimensional Information A Min Internal Diameters Of Piping
67 mm
Dimensional Information C Ansi 125lb150lb
6.0 in
Dimensional Information C Bs 4504 Np10
160 mm
Dimensional Information C Jis 10k
150 mm
Dimensional Information C Jis 5k
145 mm
Dimensional Information D
125 mm
Dimensional Information H1
85 mm
Dimensional Information H2
135 mm
Dimensional Information L
50 mm
Features 0
1. Raised Seat RingThe central part of seat ring is raised so that the disc is thrust into it when the valve is closed, and the resilient force of elastomer maintains bubble- tight shutoff. Various types of material are available for the seat ring to meet with service requirement.2. Rounded Dove-Tail DesignThe unique rounded dove-tail design net only makes it easy for replacement of seat ring but also prevents it from stripping off the body. This design eliminates the need of gasket when butterfly valve is installed in between piping flanges.3. Tripple SealsIn addition to the primary seal between the seat ring and disc, two O-rings are provided on the top and bottom seat ring glands to form the secondary seal. Another "0"ring on the upper item gland serves as the third seal for prevention of fluid leakage and intrusion of dusts. This triple sealing system ensures non-leakage. The stainless steel housings for "0"rings on the seat ring glands help to stiffen them up and improve wear resistance.
Flange Information Ansi 125lb150lb Effective Screw Long Bolts Le
40 mm
Flange Information Ansi 125lb150lb Long Bolts And Nuts
U 5/8
Flange Information Ansi 125lb150lb Long Bolts Length
145 mm
Flange Information Ansi 125lb150lb Number Of Long Bolts
4
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | BS10E | DIN 10K | ISO PN10 | JIS 10K | JIS 5K
Flange Information Bs4504np10din Pn10 Tapped Hexagon Bolts
M16
Flange Information Bs4504np10din Pn10 Tapped Number Of Hexagon B
8
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
40 mm
Flange Information Jis 10k Hexagon Boltsnuts
M16
Flange Information Jis 10k Hexagon Boltsnuts Length
110 mm
Flange Information Jis 10k Number Of Hexagon Boltsnuts
4
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
40 mm
Flange Information Jis 5k Hexagon Boltsnuts
M16
Flange Information Jis 5k Hexagon Boltsnuts Length
100 mm
Flange Information Jis 5k Number Of Hexagon Boltsnuts
4
Specifications Actuators
Electric Motor | Lock Lever | Pneumatic Cylinder | Worm Gear
Specifications Body Material
Cast Iron (FC250/A126 Class B)
Specifications Body Shell Test Hydraulic
1.5 MPa
Specifications Coating
Epoxy primer finish (Munsell N7)
Specifications Disc Material
304 Stainless Steel (SCS13/CF8) | Aluminum Bronze | Ductile Iron
Specifications Maxworking Pressure
1.0 MPa
Specifications Seat Leak Test Pneumatic
1.1 MPa
Specifications Seat Material
EPDM | NBR
Specifications Size
080 - 3"
Specifications Stem Material
403 Stainless Steel (SUS403)
Specifications Weight
3.9 kg
Specifications Working Temperature Range
EPDM: -20° to 120°C | NBR: -10° to 80°C
