Tomoe 705G Butterfly Valve
Tomoe 705G Butterfly Valve
SKU:VAL-bf7728
Discover the durable and high-performance Tomoe 705G Butterfly Valve for your industrial needs. Wide material options, patented seat rings, and self-aligning stem seal provide top-quality performance.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Tomoe 705G Butterfly Valve
$399.99
Quantity: 1
Claim Your Seller Account
Tomoe 705G Butterfly Valve
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

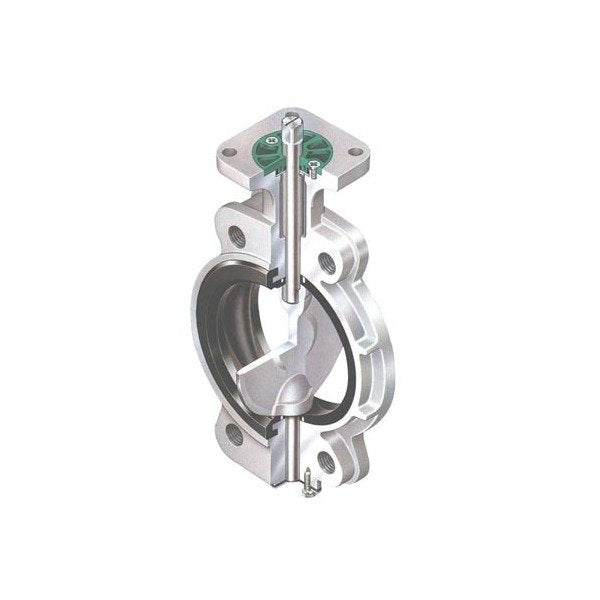

The Tomoe 705G Semi Lugged Butterfly Valve is a superior pressure-proof general purpose valve designed to meet a wide range of needs. With various materials available for discs and seats, including high-grade stainless steel and patented cosine-curve seat rings, this valve offers exceptional durability and long life. The self-aligning stem seal and choice of disc materials ensure optimal performance, while the spherical design reduces torque and extends valve life by 300%. Suitable for global use with its compatibility with international flange standards.
Product Specifications

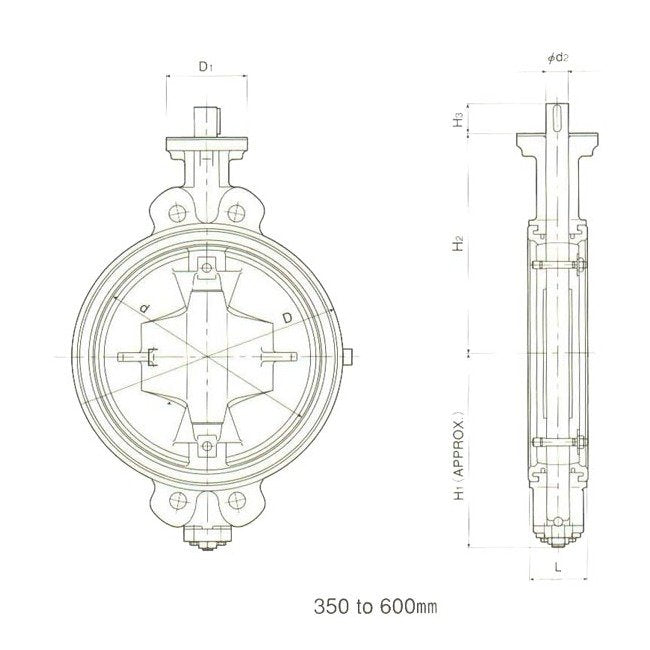

Dimensional Information A Min Internal Diameters Of Piping
427 mm
Dimensional Information D
525 mm
Dimensional Information D1
140 mm
Dimensional Information D2
46 mm
Dimensional Information H1
368 mm
Dimensional Information H2
413 mm
Dimensional Information H3
65 mm
Dimensional Information L
114 mm
Features 0
Satisfies ISO standards for face-to-face dimensionsValve face-to-face dimensions conform to standard ISO5752 (20series)Patented cosine curve seat ringThe cosine curve seat ring reducesvalve operating torque substantiallyand allows the torque to be adjustedaccording to the working pressure.Much longer life with spherical designSimilar to a spherical body rotating inside a spherical area, the operation of the disc is smooth and unhindered. Torque is reduced and the valve life is lengthened by 300%.Self-aligning stem seal through backup ringThe stem seal is the primary and secondary seal system.The backup ring functions as the self-aligning stem seal.Select from various disc materials to meet your specific needsAs one of the standard disc materials, PPS(for 50 to 200mm types)has been added to meet the current trend of linedpipes. PPS (polypheneylene sulfide with stainless steel core)is a kind of plastic material suitable for corrosive fluids(subject to the performance of rubber seats).Two aligning methods (350 to 600mm)Two valve models are available: the casted hole type (700G)and the tapped and drilled hole type (705G). They accommodate all the applicable flange standards.Long bonnetThe long neck shape allows insulation of up to 50mm afterthe valve is installed.
Flange Information Ansi 125lb150lb Effective Screw Hexagon Bolts
63 mm
Flange Information Ansi 125lb150lb Hexagon Bolts
U 1 1/8
Flange Information Ansi 125lb150lb Hexagon Bolts Length
85 mm
Flange Information Ansi 125lb150lb Long Bolts And Nuts
U 1 1/8
Flange Information Ansi 125lb150lb Long Bolts Length
280 mm
Flange Information Ansi 125lb150lb Number Of Hexagon Bolts
8
Flange Information Ansi 125lb150lb Number Of Long Bolts
12
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | BS 4504 NP10/NP16 | DIN PN10 | JIS 5K/10K
Flange Information Bs4504np10din Pn10 Drilled Effective Screw Lo
50 mm
Flange Information Bs4504np10din Pn10 Drilled Long Bolts And Nut
M24
Flange Information Bs4504np10din Pn10 Drilled Long Bolts Length
245 mm
Flange Information Bs4504np10din Pn10 Drilled Number Of Long Bol
20
Flange Information Bs4504np10din Pn10 Tapped Effective Screw Hex
54 mm
Flange Information Bs4504np10din Pn10 Tapped Effective Screw Lon
50 mm
Flange Information Bs4504np10din Pn10 Tapped Hexagon Bolts
M24
Flange Information Bs4504np10din Pn10 Tapped Hexagon Bolts Lengt
70 mm
Flange Information Bs4504np10din Pn10 Tapped Long Bolts And Nuts
M24
Flange Information Bs4504np10din Pn10 Tapped Long Bolts Length
245 mm
Flange Information Bs4504np10din Pn10 Tapped Number Of Hexagon B
8
Flange Information Bs4504np10din Pn10 Tapped Number Of Long Bolt
16
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
50 mm
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
50 mm
Flange Information Jis 10k Hexagon Bolts
M24
Flange Information Jis 10k Hexagon Bolts Length
70 mm
Specifications Body Material
Cast Iron, JIS FC250 | Ductile Iron, JIS FCD450
Specifications Disc Material
304 Stainless Steel JIS SCS13 | 316 Stainless Steel JIS SCS14 | Aluminum Bronze JIS ALBC | Ductile Iron
Specifications Face To Face Dimensions
API 609/ISO 5752 (20series)
Specifications Seat Material
EPDM | NBR
Specifications Size
450 - 18"
Specifications Stem Material
SUS420J2/SUS392J1
