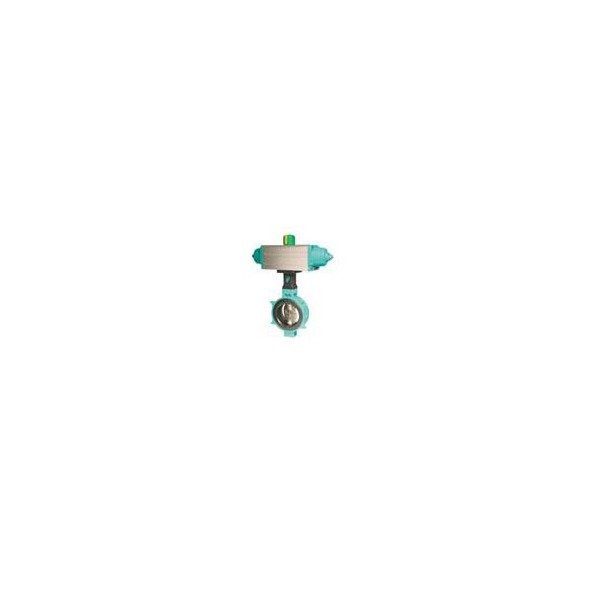

Tomoe 773Z Anti-Condensation Aluminum Butterfly Valve
Tomoe 773Z Anti-Condensation Aluminum Butterfly Valve
SKU:VAL-486b9b
Revolutionary Tomoe 773Z Aluminum Butterfly Valve with condensation prevention, JISB2032 compliant.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Tomoe 773Z Anti-Condensation Aluminum Butterfly Valve
$599.99
Quantity: 1
Claim Your Seller Account
Tomoe 773Z Anti-Condensation Aluminum Butterfly Valve
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

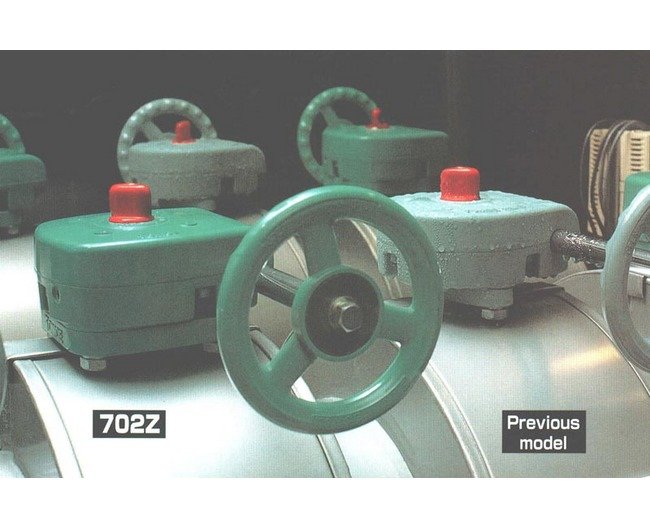

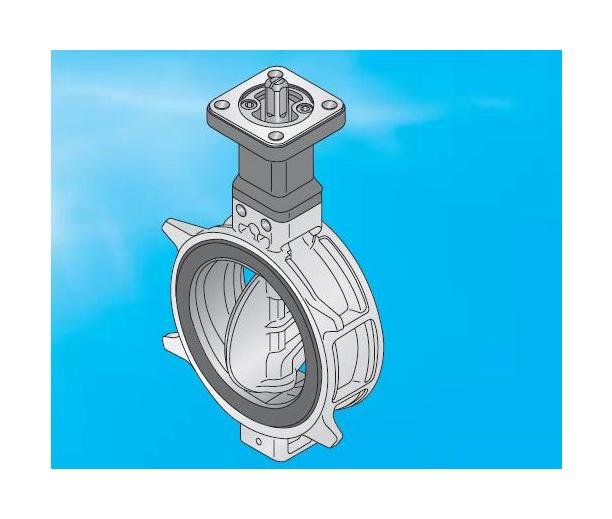

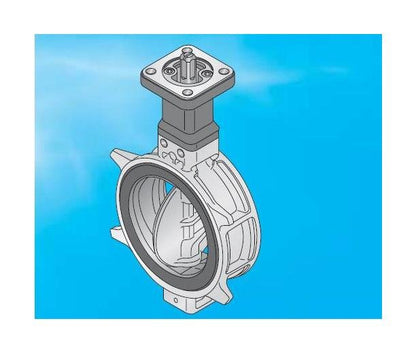

Upgrade to the innovative Tomoe 773Z Aluminum Butterfly Valve, designed with a patented high-performance engineering plastic top plate and aluminum diecast body to prevent condensation. Enhanced for auto-actuation with ISO top flange design, this valve ensures no condensation formation under specific temperature and humidity conditions. Compliant with JISB2032 standard, it offers a reliable solution for various applications, with sizes ranging from 200 - 8 inches and a working temperature range of -20 to +120°C.
Product Specifications

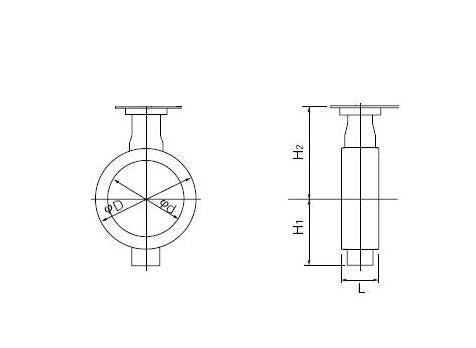

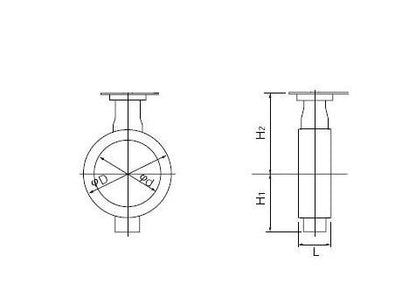

Dimensional Information D
253 mm
Dimensional Information H1
163 mm
Dimensional Information H2
227 mm
Dimensional Information L
60 mm
Flange Information Ansi 125lb150lb Effective Screw Long Bolts Le
51 mm
Flange Information Ansi 125lb150lb Long Bolts And Nuts
U3/4
Flange Information Ansi 125lb150lb Long Bolts Length
175 mm
Flange Information Ansi 125lb150lb Number Of Long Bolts
8
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | DIN PN10 | JIS 5K/10K
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
52 mm
Flange Information Jis 10k Effective Screw Long Bolts Length
40 mm
Flange Information Jis 10k Hexagon Boltsnuts
M20
Flange Information Jis 10k Hexagon Boltsnuts Length
130 mm
Flange Information Jis 10k Long Bolts And Nuts
M20
Flange Information Jis 10k Long Bolts Length
155 mm
Flange Information Jis 10k Number Of Hexagon Boltsnuts
12
Flange Information Jis 10k Number Of Long Bolts
12
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
52 mm
Flange Information Jis 5k Effective Screw Long Bolts Length
40 mm
Flange Information Jis 5k Hexagon Boltsnuts
M20
Flange Information Jis 5k Hexagon Boltsnuts Length
130 mm
Flange Information Jis 5k Long Bolts And Nuts
M20
Flange Information Jis 5k Long Bolts Length
155 mm
Flange Information Jis 5k Number Of Hexagon Boltsnuts
8
Flange Information Jis 5k Number Of Long Bolts
8

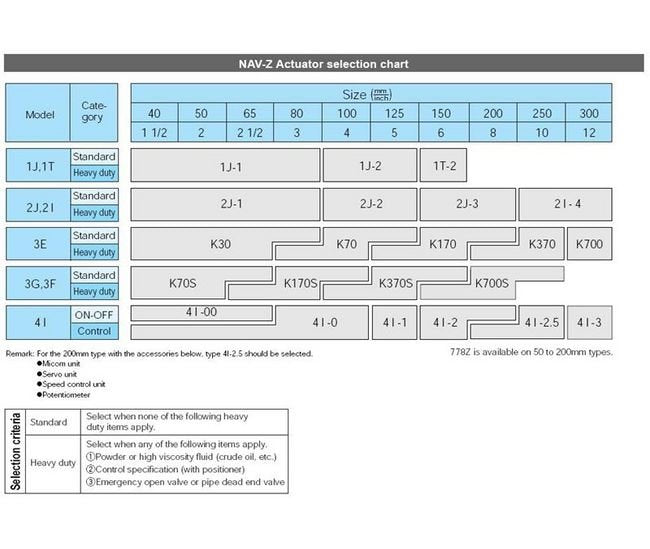

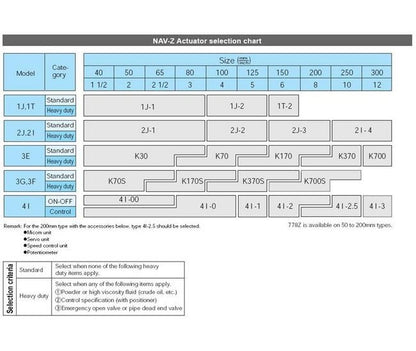

Specifications Actuators
Double Acting Pneumatic Cylinder 3E | Single Acting Pneumatic Cylinder Type 3F | Single Acting Pneumatic Cylinder Type 3G | Single Phase Electric Motor | Worm Gear
Specifications Actuator Category
Control | Heavy Duty | ON-OFF | Standard
Specifications Actuator Mounting Flange
ISO 5211
Specifications Body Material
Aluminum Diecast Alloy
Specifications Body Shell Test Hydraulic
1.75 MPa
Specifications Column Material
Engineering Plastic
Specifications Cylinder Type
K170 | K370 | K700S
Specifications Design Standard
JISB2032
Specifications Direction Of Cylinder Motor
Perpendicular | Standard
Specifications Disc Material
Coated | Stainless Steel Type 316
Specifications Face To Face Dimensions
ISO 5752/JIS B2032
Specifications Seat Material
EPDM | NBR
Specifications Size
200 - 8"
Specifications Stem Material
Stainless Steel Type 420J2
