Tomoe Series 700G Wafer Butterfly Valves
Tomoe Series 700G Wafer Butterfly Valves
SKU:VAL-141769
The ultimate general-purpose valves meeting international standards for durability and performance.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Tomoe Series 700G Wafer Butterfly Valves
$399.99
Quantity: 1
Claim Your Seller Account
Tomoe Series 700G Wafer Butterfly Valves
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

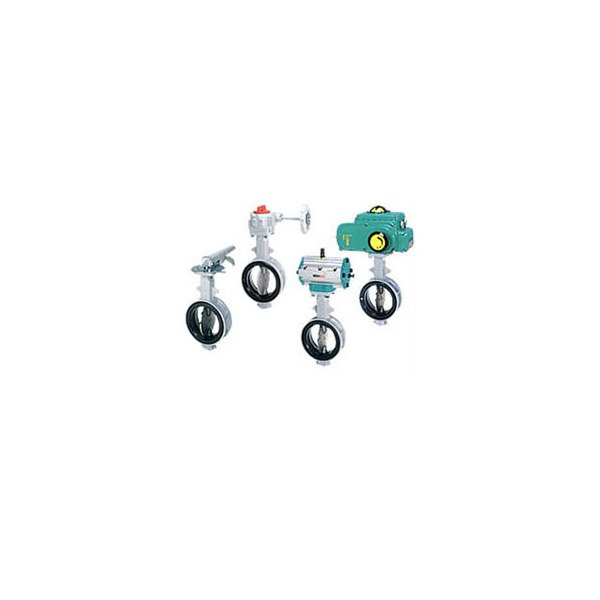

The Tomoe Series 700G Wafer Butterfly Valves are the ultimate general-purpose valves designed to meet diverse needs. With a wide range of materials for discs and seats, these valves offer exceptional cost-performance. Equipped with a patented cosine-curve seat ring and various disc materials, such as stainless steel and aluminum bronze, these valves surpass conventional models. Featuring a self-aligning stem seal and spherical design for smooth operation, they ensure durability and long life. Meeting international flange standards, these valves are suitable for global applications.
Product Specifications
Dimensional Information A Min Internal Diameters Of Piping
294 mm
Dimensional Information D
367 mm
Dimensional Information D1
102 mm
Dimensional Information D2
32 mm
Dimensional Information H1
253 mm
Dimensional Information H2
312 mm
Dimensional Information H3
35 mm
Dimensional Information L
78 mm
Features 0
Satisfies ISO standards for face-to-face dimensionsValve face-to-face dimensions conform to standard ISO5752 (20series)Patented cosine curve seat ringThe cosine curve seat ring reducesvalve operating torque substantiallyand allows the torque to be adjustedaccording to the working pressure.Much longer life with spherical designSimilar to a spherical body rotating inside a spherical area, the operation of the disc is smooth and unhindered. Torque is reduced and the valve life is lengthened by 300%.Self-aligning stem seal through backup ringThe stem seal is the primary and secondary seal system.The backup ring functions as the self-aligning stem seal.Select from various disc materials to meet your specific needsAs one of the standard disc materials, PPS(for 50 to 200mm types)has been added to meet the current trend of linedpipes. PPS (polypheneylene sulfide with stainless steel core)is a kind of plastic material suitable for corrosive fluids(subject to the performance of rubber seats).Two aligning methods (350 to 600mm)Two valve models are available: the casted hole type (700G)and the tapped and drilled hole type (705G). They accommodate all the applicable flange standards.Long bonnetThe long neck shape allows insulation of up to 50mm afterthe valve is installed.
Flange Information Ansi 125lb150lb Effective Screw Long Bolts Le
55-22 mm
Flange Information Ansi 125lb150lb Long Bolts Length
215 mm
Flange Information Ansi 125lb150lb Number Of Long Bolts
12
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | BS 10E | BS 4504 NP10/NP16 | DIN PN10/PN16 | JIS 5K/10K
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
60 mm
Flange Information Jis 10k Hexagon Boltsnuts
M22
Flange Information Jis 10k Hexagon Boltsnuts Length
160 mm
Flange Information Jis 10k Number Of Hexagon Boltsnuts
16
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
50 mm
Flange Information Jis 5k Hexagon Boltsnuts
M20
Flange Information Jis 5k Hexagon Boltsnuts Length
150 mm
Flange Information Jis 5k Number Of Hexagon Boltsnuts
12
Specifications Actuators
Center Handle | Electric Motor | Pneumatic Cylinder | Worm Gear
Specifications Body Material
Ductile Iron, JIS FCD450
Specifications Body Shell Test Hydraulic
1.5 MPa
Specifications Coating
Epoxy primer finish (Munsell N7)
Specifications Disc Material
316 Stainless Steel JIS SCS14 | Aluminum Bronze JIS CAC702 | Carbon Steel JIS SF490A with Dacro Coating | Carbon Steel JIS SF490A with Nylon Coating
Specifications Face To Face Dimensions
API 609/ISO 5752 (20series)
Specifications Maxworking Pressure
1.0 MPa
Specifications Seat Leak Test Pneumatic
1.1 MPa
Specifications Seat Material
EPDM | NBR
Specifications Size
300 - 12"
Specifications Stem Material
SUS420J2/SUS392J1
Specifications Weight
25.0 kg
Specifications Working Temperature Range
EPDM: -20° to 120°C | NBR: -10° to 80°C
