TOMOE Series 700G Wafer Butterfly Valves
TOMOE Series 700G Wafer Butterfly Valves
SKU:VAL-05c180
Discover superior pressure-proof performance with TOMOE Series 700G Butterfly Valves. Reliable, durable, and efficient for various applications.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
TOMOE Series 700G Wafer Butterfly Valves
$499.99
Quantity: 1
Claim Your Seller Account
TOMOE Series 700G Wafer Butterfly Valves
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

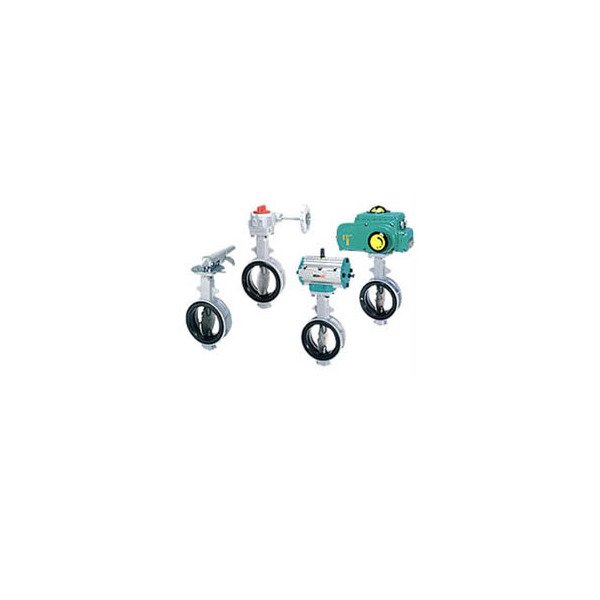

The TOMOE Series 700G Wafer Butterfly Valves are engineered to meet a wide range of needs with superior pressure-proof performance. Constructed with high-quality materials and a patented cosine-curve structure, these valves offer exceptional durability, longevity, and simple handling. Designed to satisfy international flange standards, they feature various body and disc material options, self-aligning stem seals, and a smooth spherical design reducing operating torque. These valves are ideal for diverse applications requiring reliability and efficiency.
Product Specifications
Dimensional Information A Min Internal Diameters Of Piping
194 mm
Dimensional Information D
256 mm
Dimensional Information D1
102 mm
Dimensional Information D2
22 mm
Dimensional Information H1
177 mm
Dimensional Information H2
227 mm
Dimensional Information H3
30 mm
Dimensional Information L
60 mm
Features 0
Satisfies ISO standards for face-to-face dimensionsValve face-to-face dimensions conform to standard ISO5752 (20series)Patented cosine curve seat ringThe cosine curve seat ring reducesvalve operating torque substantiallyand allows the torque to be adjustedaccording to the working pressure.Much longer life with spherical designSimilar to a spherical body rotating inside a spherical area, the operation of the disc is smooth and unhindered. Torque is reduced and the valve life is lengthened by 300%.Self-aligning stem seal through backup ringThe stem seal is the primary and secondary seal system.The backup ring functions as the self-aligning stem seal.Select from various disc materials to meet your specific needsAs one of the standard disc materials, PPS(for 50 to 200mm types)has been added to meet the current trend of linedpipes. PPS (polypheneylene sulfide with stainless steel core)is a kind of plastic material suitable for corrosive fluids(subject to the performance of rubber seats).Two aligning methods (350 to 600mm)Two valve models are available: the casted hole type (700G)and the tapped and drilled hole type (705G). They accommodate all the applicable flange standards.Long bonnetThe long neck shape allows insulation of up to 50mm afterthe valve is installed.
Flange Information Ansi 125lb150lb Effective Screw Long Bolts Le
55-19 mm
Flange Information Ansi 125lb150lb Long Bolts Length
175 mm
Flange Information Ansi 125lb150lb Number Of Long Bolts
8
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | BS 10E | BS 4504 NP10/NP16 | DIN PN10/PN16 | JIS 5K/10K
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
50 mm
Flange Information Jis 10k Hexagon Boltsnuts
M20
Flange Information Jis 10k Hexagon Boltsnuts Length
135 mm
Flange Information Jis 10k Number Of Hexagon Boltsnuts
12
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
50 mm
Flange Information Jis 5k Hexagon Boltsnuts
M20
Flange Information Jis 5k Hexagon Boltsnuts Length
130 mm
Flange Information Jis 5k Number Of Hexagon Boltsnuts
8
Specifications Actuators
Center Handle | Electric Motor | Lock Lever | Pneumatic Cylinder | Worm Gear
Specifications Body Material
Ductile Iron, JIS FCD450
Specifications Body Shell Test Hydraulic
1.5 MPa
Specifications Coating
Epoxy primer finish (Munsell N7)
Specifications Disc Material
316 Stainless Steel JIS SCS14 | Aluminum Bronze JIS CAC702 | Carbon Steel JIS SF490A with Dacro Coating | Carbon Steel JIS SF490A with Nylon Coating | Coated
Specifications Face To Face Dimensions
API 609/ISO 5752 (20series)
Specifications Maxworking Pressure
1.0 MPa
Specifications Seat Leak Test Pneumatic
1.1 MPa
Specifications Seat Material
EPDM | NBR
Specifications Size
200 - 8"
Specifications Stem Material
SUS420J2/SUS392J1
Specifications Weight
10.4 kg
Specifications Working Temperature Range
EPDM: -20° to 120°C | NBR: -10° to 80°C
