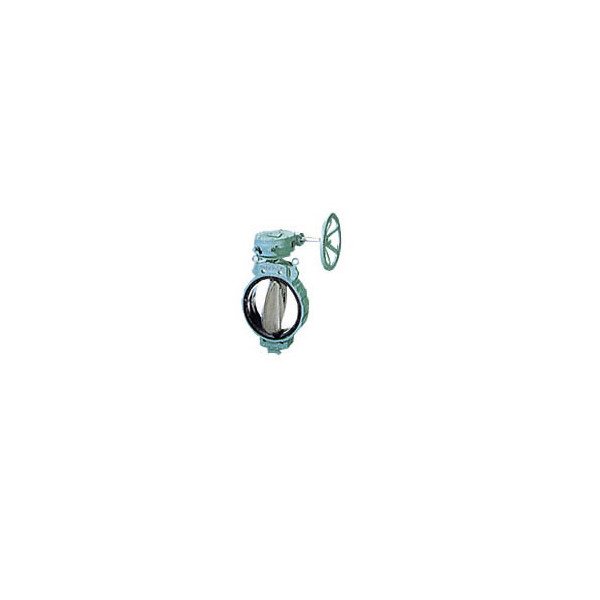

Tomoe Series 700S Semi Lugged Wafer Butterfly Valves
Tomoe Series 700S Semi Lugged Wafer Butterfly Valves
SKU:VAL-fbf24a
Reliable Tomoe Series 700S Butterfly Valves for marine and industrial applications. Interchangeable design for easy maintenance.
Regular price
$269.99
Regular price
Sale price
$269.99
Unit price
per
Initiate Order
Tomoe Series 700S Semi Lugged Wafer Butterfly Valves
$269.99
Quantity: 1
Claim Your Seller Account
Tomoe Series 700S Semi Lugged Wafer Butterfly Valves
$269.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Tomoe Series 700S Semi Lugged Wafer Butterfly Valves are expertly designed for marine and industrial applications, delivering trouble-free operation with minimal maintenance for over 30 years. With a reliable construction and proven features, these valves are immediate replacements for the discontinued 700E and 700K models while maintaining the same design integrity. Featuring interchangeable seat and disc assembly designs, these valves ensure consistent performance. Key features include a raised seat ring for bubble-tight shutoff, a rounded dove-tail design for easy seat ring replacement, and a triple seals system for enhanced leakage prevention. Suitable for a working temperature range of -20° to 120°C, these valves offer versatility and durability for various applications.
Product Specifications

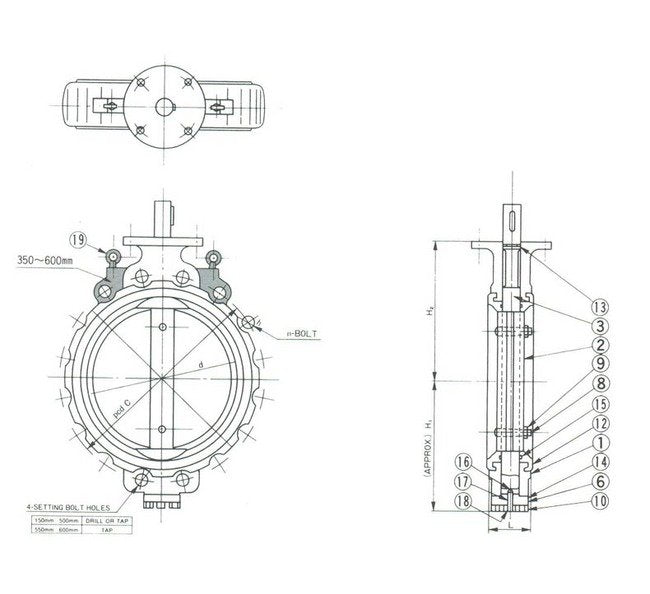

Dimensional Information A Min Internal Diameters Of Piping
143 mm
Dimensional Information C Ansi 125lb150lb
9.500 in
Dimensional Information C Bs 4504 Np10
240 mm
Dimensional Information C Jis 10k
240 mm
Dimensional Information C Jis 5k
230 mm
Dimensional Information D
224 mm
Dimensional Information H1
145 mm
Dimensional Information H2
180 mm
Dimensional Information L
60 mm
Features 0
1. Raised Seat RingThe central part of seat ring is raised so that the disc is thrust into it when the valve is closed, and the resilient force of elastomer maintains bubble- tight shutoff. Various types of material are available for the seat ring to meet with service requirement.2. Rounded Dove-Tail DesignThe unique rounded dove-tail design net only makes it easy for replacement of seat ring but also prevents it from stripping off the body. This design eliminates the need of gasket when butterfly valve is installed in between piping flanges.3. Tripple SealsIn addition to the primary seal between the seat ring and disc, two O-rings are provided on the top and bottom seat ring glands to form the secondary seal. Another "0"ring on the upper item gland serves as the third seal for prevention of fluid leakage and intrusion of dusts. This triple sealing system ensures non-leakage. The stainless steel housings for "0"rings on the seat ring glands help to stiffen them up and improve wear resistance.
Flange Information Ansi 125lb150lb Effective Screw Hexagon Bolts
44 mm
Flange Information Ansi 125lb150lb Effective Screw Long Bolts Le
45 mm
Flange Information Ansi 125lb150lb Hexagon Bolts
U 3/4
Flange Information Ansi 125lb150lb Hexagon Bolts Length
55 mm
Flange Information Ansi 125lb150lb Long Bolts And Nuts
U 3/4
Flange Information Ansi 125lb150lb Long Bolts Length
165 mm
Flange Information Ansi 125lb150lb Number Of Hexagon Bolts
8
Flange Information Ansi 125lb150lb Number Of Long Bolts
8
Flange Information Ansi 125lb150lb Number Of Threaded Bolt Holes
4
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | BS10E | DIN 10K | ISO PN10 | JIS 10K | JIS 5K
Flange Information Bs4504np10din Pn10 Tapped Hexagon Bolts
M20
Flange Information Bs4504np10din Pn10 Tapped Number Of Hexagon B
8
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
50 mm
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
46 mm
Flange Information Jis 10k Hexagon Bolts
M20
Flange Information Jis 10k Hexagon Boltsnuts
M20
Flange Information Jis 10k Hexagon Boltsnuts Length
130 mm
Flange Information Jis 10k Hexagon Bolts Length
50 mm
Flange Information Jis 10k Number Of Hexagon Bolts
8
Flange Information Jis 10k Number Of Hexagon Boltsnuts
8
Flange Information Jis 10k Number Of Threaded Bolt Holes
4
Flange Information Jis 5k Effective Screw Hexagon Boltsnuts Leng
40 mm
Flange Information Jis 5k Effective Screw Hexagon Bolts Length
38 mm
Flange Information Jis 5k Hexagon Bolts
M16
Specifications Body Material
Cast Iron (FC250/A126 Class B)
Specifications Disc Material
304 Stainless Steel (SCS13/CF8) | Aluminum Bronze | Ductile Iron
Specifications Seat Material
EPDM | NBR
Specifications Size
150 - 6"
Specifications Stem Material
403 Stainless Steel (SUS403)
