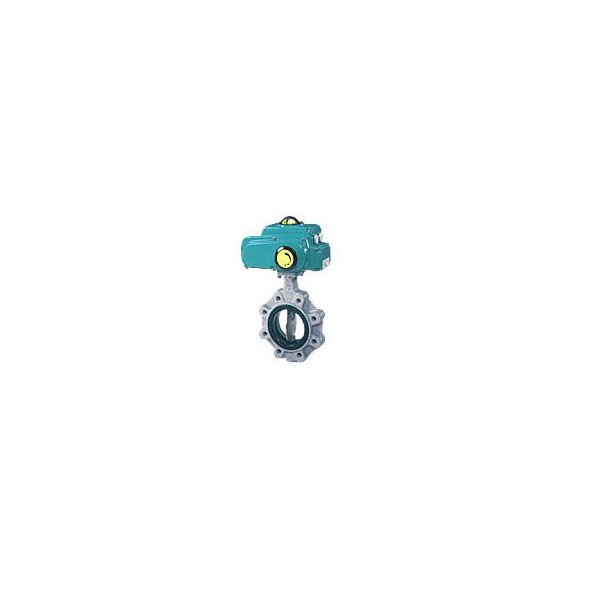

Tomoe Series 704G Full Lugged Butterfly Valve
Tomoe Series 704G Full Lugged Butterfly Valve
SKU:VAL-f2c3eb
Achieve reliability with the Tomoe 704G Butterfly Valve, offering durability, performance, and compliance with international standards.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Tomoe Series 704G Full Lugged Butterfly Valve
$399.99
Quantity: 1
Claim Your Seller Account
Tomoe Series 704G Full Lugged Butterfly Valve
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior performance with the Tomoe Series 704G Full Lugged Butterfly Valve. This general-purpose valve offers exceptional durability and long life. With various materials for discs and seats, meeting a wide range of needs, and complying with strict international flange standards, this valve ensures reliable operation under diverse conditions. The patented cosine-curve seat ring reduces operating torque, extending valve life by 300%. Choose from different disc materials to suit specific applications, including PPS for corrosive fluids. The self-aligning stem seal design enhances reliability, while the long bonnet allows for post-installation insulation.
Product Specifications
Dimensional Information A Min Internal Diameters Of Piping
294 mm
Dimensional Information D
472 mm | 483 mm
Dimensional Information D1
125 mm
Dimensional Information D2
32 mm
Dimensional Information H1
253 mm
Dimensional Information H2
312 mm
Dimensional Information H3
35 mm
Dimensional Information L
78 mm
Features 0
Satisfies ISO standards for face-to-face dimensionsValve face-to-face dimensions conform to standard ISO5752 (20series)Patented cosine curve seat ringThe cosine curve seat ring reducesvalve operating torque substantiallyand allows the torque to be adjustedaccording to the working pressure.Much longer life with spherical designSimilar to a spherical body rotating inside a spherical area, the operation of the disc is smooth and unhindered. Torque is reduced and the valve life is lengthened by 300%.Self-aligning stem seal through backup ringThe stem seal is the primary and secondary seal system.The backup ring functions as the self-aligning stem seal.Select from various disc materials to meet your specific needsAs one of the standard disc materials, PPS(for 50 to 200mm types)has been added to meet the current trend of linedpipes. PPS (polypheneylene sulfide with stainless steel core)is a kind of plastic material suitable for corrosive fluids(subject to the performance of rubber seats).Two aligning methods (350 to 600mm)Two valve models are available: the casted hole type (700G)and the tapped and drilled hole type (705G). They accommodate all the applicable flange standards.Long bonnetThe long neck shape allows insulation of up to 50mm afterthe valve is installed.
Flange Information Ansi 125lb150lb Effective Screw Hexagon Bolts
50 mm
Flange Information Ansi 125lb150lb Hexagon Bolts
U 7/8
Flange Information Ansi 125lb150lb Hexagon Bolts Length
60 mm
Flange Information Ansi 125lb150lb Number Of Hexagon Bolts
24
Flange Information Applicable Flange Standard
DIN PN10 | JIS 10K
Flange Information Din Pn10 Bs4504 Np10 Effective Screw Hexagon
50 mm
Flange Information Din Pn10 Bs4504 Np10 Hexagon Bolts
M20
Flange Information Din Pn10 Bs4504 Np10 Hexagon Bolts Length
55 mm
Flange Information Din Pn10 Bs4504 Np10 Number Of Hexagon Bolts
24
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
51 mm
Flange Information Jis 10k Hexagon Bolts
M22
Flange Information Jis 10k Hexagon Bolts Length
55 mm
Flange Information Jis 10k Number Of Hexagon Bolts
32
Flange Information Jis 5k Effective Screw Hexagon Bolts Length
51 mm
Flange Information Jis 5k Hexagon Bolts
M20
Flange Information Jis 5k Hexagon Bolts Length
55 mm
Flange Information Jis 5k Number Of Hexagon Bolts
24
Specifications Actuators
Center Handle | Electric Motor | Pneumatic Cylinder | Worm Gear
Specifications Body Material
Ductile Iron, JIS FCD450
Specifications Body Shell Test Hydraulic
1.5 MPa
Specifications Coating
Epoxy primer finish (Munsell N7)
Specifications Disc Material
316 Stainless Steel JIS SCS14 | 316 Stainless Steel, JIS SUSF316 | Aluminum Bronze JIS ALBC | Carbon Steel JIS SF490A | Carbon Steel JIS SF490A with Nylon Coating | Coated
Specifications Face To Face Dimensions
API 609/ISO 5752 (20series)
Specifications Maxworking Pressure
1.0 MPa
Specifications Seat Leak Test Pneumatic
1.1 MPa
Specifications Seat Material
EPDM | NBR
Specifications Size
300 - 12"
Specifications Stem Material
SUS420J2/SUS392J1
Specifications Weight
39.0 kg
Specifications Working Temperature Range
EPDM: -20° to 120°C | NBR: -10° to 80°C
