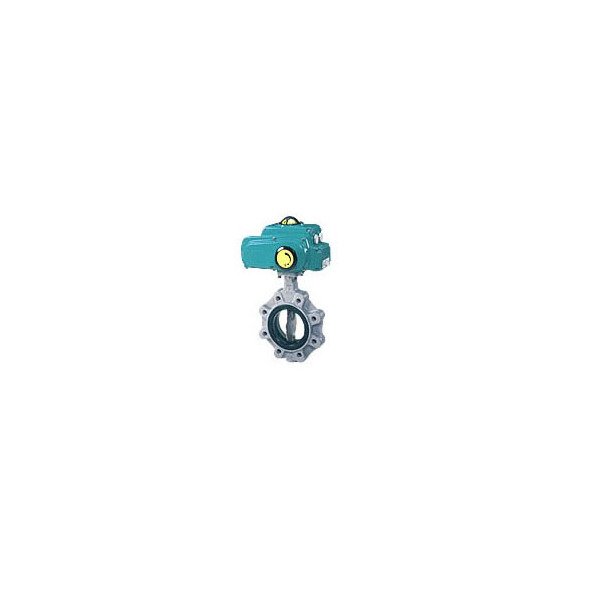

TOMOE Series 704G Full Lugged Butterfly Valve
TOMOE Series 704G Full Lugged Butterfly Valve
SKU:VAL-f34a3f
High-performance TOMOE Butterfly Valve with patented cosine-curve seat ring, ideal for diverse needs & institutional buyers.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
TOMOE Series 704G Full Lugged Butterfly Valve
$799.99
Quantity: 1
Claim Your Seller Account
TOMOE Series 704G Full Lugged Butterfly Valve
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The TOMOE Series 704G Full Lugged Butterfly Valve is a superior pressure-proof general purpose valve designed to meet a wide range of needs. With various disc and seat materials, this valve offers excellent cost performance, durability, and long life. It features a patented cosine-curve seat ring, reducing operating torque and extending valve life by 300%. The valve's self-aligning stem seal, spherical design, and various disc materials make it ideal for institutional and government procurement applications. Complies with ISO standards and satisfies industry-specific certifications.
Product Specifications
Dimensional Information A Min Internal Diameters Of Piping
246 mm
Dimensional Information D
402 mm
Dimensional Information D1
102 mm
Dimensional Information D2
28 mm
Dimensional Information H1
215 mm
Dimensional Information H2
280 mm
Dimensional Information H3
35 mm
Dimensional Information L
68 mm
Features 0
Satisfies ISO standards for face-to-face dimensionsValve face-to-face dimensions conform to standard ISO5752 (20series)Patented cosine curve seat ringThe cosine curve seat ring reducesvalve operating torque substantiallyand allows the torque to be adjustedaccording to the working pressure.Much longer life with spherical designSimilar to a spherical body rotating inside a spherical area, the operation of the disc is smooth and unhindered. Torque is reduced and the valve life is lengthened by 300%.Self-aligning stem seal through backup ringThe stem seal is the primary and secondary seal system.The backup ring functions as the self-aligning stem seal.Select from various disc materials to meet your specific needsAs one of the standard disc materials, PPS(for 50 to 200mm types)has been added to meet the current trend of linedpipes. PPS (polypheneylene sulfide with stainless steel core)is a kind of plastic material suitable for corrosive fluids(subject to the performance of rubber seats).Two aligning methods (350 to 600mm)Two valve models are available: the casted hole type (700G)and the tapped and drilled hole type (705G). They accommodate all the applicable flange standards.Long bonnetThe long neck shape allows insulation of up to 50mm afterthe valve is installed.
Flange Information Ansi 125lb150lb Effective Screw Hexagon Bolts
50 mm
Flange Information Ansi 125lb150lb Hexagon Bolts
U 7/8
Flange Information Ansi 125lb150lb Hexagon Bolts Length
60 mm
Flange Information Ansi 125lb150lb Number Of Hexagon Bolts
24
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | BS 4504 NP10/NP16 | DIN PN10/PN16 | JIS 5K/10K
Flange Information Din Pn10 Bs4504 Np10 Effective Screw Hexagon
50 mm
Flange Information Din Pn10 Bs4504 Np10 Hexagon Bolts
M20
Flange Information Din Pn10 Bs4504 Np10 Hexagon Bolts Length
55 mm
Flange Information Din Pn10 Bs4504 Np10 Number Of Hexagon Bolts
24
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
46 mm
Flange Information Jis 10k Hexagon Bolts
M20
Flange Information Jis 10k Hexagon Bolts Length
50 mm
Flange Information Jis 10k Number Of Hexagon Bolts
24
Flange Information Jis 5k Effective Screw Hexagon Bolts Length
46 mm
Flange Information Jis 5k Hexagon Bolts
M20
Flange Information Jis 5k Hexagon Bolts Length
50 mm
Flange Information Jis 5k Number Of Hexagon Bolts
24
Specifications Actuators
Center Handle | Electric Motor | Pneumatic Cylinder | Worm Gear
Specifications Body Material
Ductile Iron, JIS FCD450
Specifications Body Shell Test Hydraulic
1.5 MPa
Specifications Coating
Epoxy primer finish (Munsell N7)
Specifications Disc Material
316 Stainless Steel JIS SCS14 | 316 Stainless Steel, JIS SUSF316 | Aluminum Bronze JIS ALBC | Carbon Steel JIS SF490A | Carbon Steel JIS SF490A with Nylon Coating | Coated
Specifications Face To Face Dimensions
API 609/ISO 5752 (20series)
Specifications Maxworking Pressure
1.0 MPa
Specifications Seat Leak Test Pneumatic
1.1 MPa
Specifications Seat Material
EPDM | NBR
Specifications Size
250 - 10"
Specifications Stem Material
SUS420J2/SUS392J1
Specifications Weight
27 kg
Specifications Working Temperature Range
EPDM: -20° to 120°C | NBR: -10° to 80°C
