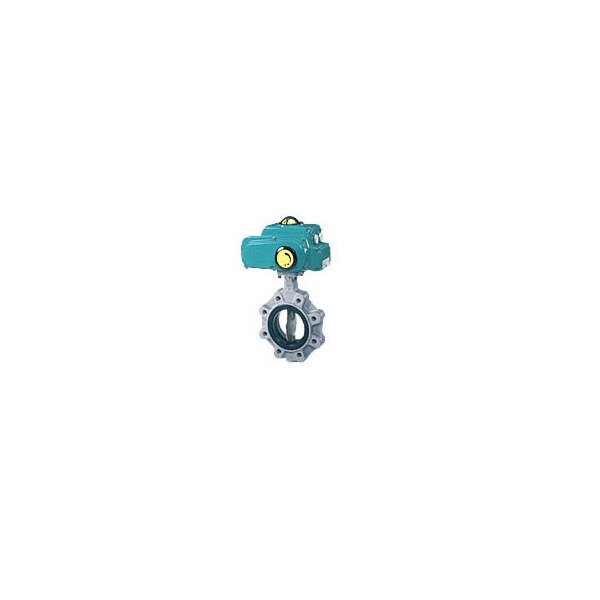

The TOMOE Series 704G Full Lugged Butterfly Valves are the ultimate solution for various industrial needs. With a wide range of materials for discs and seats, these valves offer exceptional cost-performance. Designed to meet international flange standards, these valves are available in different body designs and materials, providing durability, simple handling, and an extended lifespan. The patented cosine-curve seat ring and spherical design reduce operating torque, ensuring smooth operation and longevity. Choose from a variety of disc materials to meet specific requirements, and benefit from features like self-aligning stem seals and long bonnets for added insulation.
Product Specifications
Dimensional Information A Min Internal Diameters Of Piping
91 mm
Dimensional Information D
223 mm
Dimensional Information D1
70 mm
Dimensional Information D2
14 mm
Dimensional Information H1
117 mm
Dimensional Information H2
167 mm
Dimensional Information H3
22.5 mm
Dimensional Information L
52 mm
Features 0
Satisfies ISO standards for face-to-face dimensionsValve face-to-face dimensions conform to standard ISO5752 (20series)Patented cosine curve seat ringThe cosine curve seat ring reducesvalve operating torque substantiallyand allows the torque to be adjustedaccording to the working pressure.Much longer life with spherical designSimilar to a spherical body rotating inside a spherical area, the operation of the disc is smooth and unhindered. Torque is reduced and the valve life is lengthened by 300%.Self-aligning stem seal through backup ringThe stem seal is the primary and secondary seal system.The backup ring functions as the self-aligning stem seal.Select from various disc materials to meet your specific needsAs one of the standard disc materials, PPS(for 50 to 200mm types)has been added to meet the current trend of linedpipes. PPS (polypheneylene sulfide with stainless steel core)is a kind of plastic material suitable for corrosive fluids(subject to the performance of rubber seats).Two aligning methods (350 to 600mm)Two valve models are available: the casted hole type (700G)and the tapped and drilled hole type (705G). They accommodate all the applicable flange standards.Long bonnetThe long neck shape allows insulation of up to 50mm afterthe valve is installed.
Flange Information Ansi 125lb150lb Effective Screw Hexagon Bolts
38 mm
Flange Information Ansi 125lb150lb Hexagon Bolts
U 5/8
Flange Information Ansi 125lb150lb Hexagon Bolts Length
45 mm
Flange Information Ansi 125lb150lb Number Of Hexagon Bolts
16
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | BS 4504 NP10/NP16 | DIN PN10/PN16 | JIS 5K/10K
Flange Information Din Pn10 Bs4504 Np10 Effective Screw Hexagon
38 mm
Flange Information Din Pn10 Bs4504 Np10 Hexagon Bolts
M16
Flange Information Din Pn10 Bs4504 Np10 Hexagon Bolts Length
40 mm
Flange Information Din Pn10 Bs4504 Np10 Number Of Hexagon Bolts
16
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
38 mm
Flange Information Jis 10k Hexagon Bolts
M16
Flange Information Jis 10k Hexagon Bolts Length
40 mm
Flange Information Jis 10k Number Of Hexagon Bolts
16
Flange Information Jis 5k Effective Screw Hexagon Bolts Length
38 mm
Flange Information Jis 5k Hexagon Bolts
M16
Flange Information Jis 5k Hexagon Bolts Length
40 mm
Flange Information Jis 5k Number Of Hexagon Bolts
16
Specifications Actuators
Center Handle | Electric Motor | Lock Lever | Pneumatic Cylinder | Worm Gear
Specifications Body Material
Ductile Iron, JIS FCD450
Specifications Body Shell Test Hydraulic
1.5 MPa
Specifications Coating
Epoxy primer finish (Munsell N7)
Specifications Disc Material
316 Stainless Steel JIS SCS14 | 316 Stainless Steel, JIS SUSF316 | Aluminum Bronze JIS ALBC | Carbon Steel JIS SF490A | Carbon Steel JIS SF490A with Nylon Coating | Coated
Specifications Face To Face Dimensions
API 609/ISO 5752 (20series)
Specifications Maxworking Pressure
1.0 MPa
Specifications Seat Leak Test Pneumatic
1.1 MPa
Specifications Seat Material
EPDM | NBR
Specifications Size
100 - 4"
Specifications Stem Material
SUS420J2/SUS392J1
Specifications Weight
6.7 kg
Specifications Working Temperature Range
EPDM: -20° to 120°C | NBR: -10° to 80°C
