TOMOE Series 704G Full Lugged Butterfly Valves
TOMOE Series 704G Full Lugged Butterfly Valves
SKU:VAL-f55257
Enhance your industrial operations with TOMOE 704G Butterfly Valves - durable, cost-efficient, and globally compatible.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
TOMOE Series 704G Full Lugged Butterfly Valves
$599.99
Quantity: 1
Claim Your Seller Account
TOMOE Series 704G Full Lugged Butterfly Valves
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

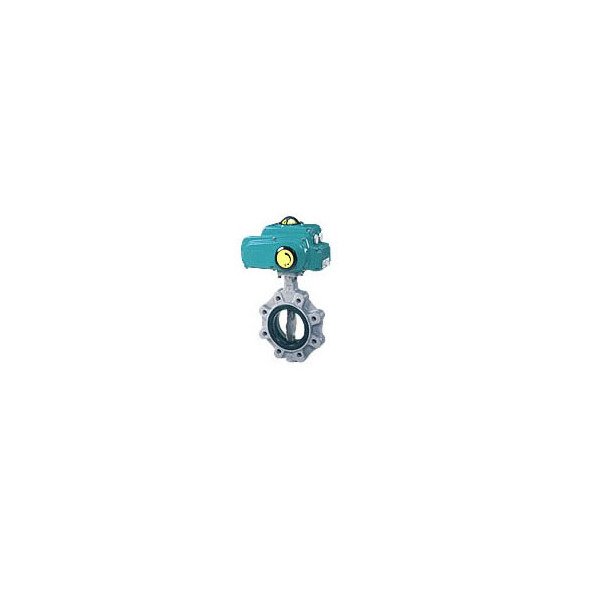

The TOMOE Series 704G Full Lugged Butterfly Valves are the ultimate solution for various industrial needs. With a wide range of disc and seat materials, these valves offer excellent cost-performance, durability, and a long life expectancy. Featuring a superior pressure-proof design, these valves meet international flange standards, ensuring worldwide compatibility. The cosine-curve seat ring, along with various body and disc material options, sets the 704G series apart from conventional models, providing reliable performance in all conditions.
Product Specifications

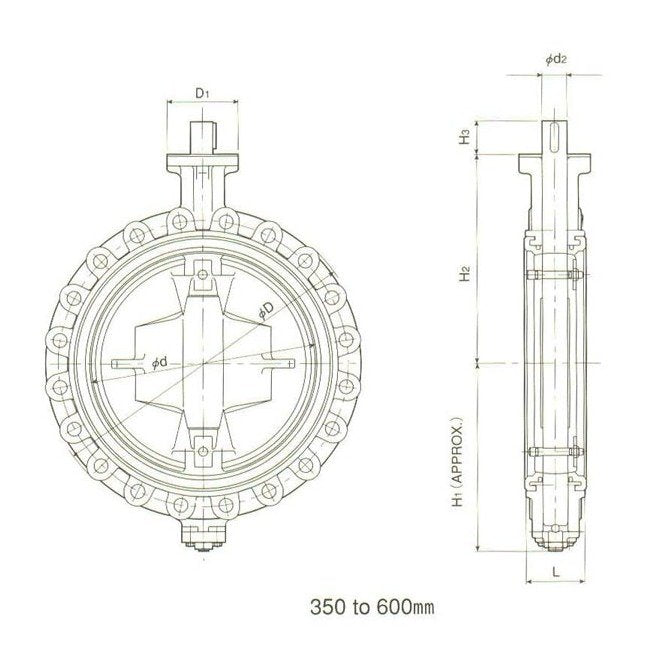

Dimensional Information A Min Internal Diameters Of Piping
477 mm
Dimensional Information D
634 mm | 696 mm
Dimensional Information D1
140 mm
Dimensional Information D2
50 mm
Dimensional Information H1
403 mm
Dimensional Information H2
453 mm
Dimensional Information H3
79 mm
Dimensional Information L
127 mm
Features 0
Satisfies ISO standards for face-to-face dimensionsValve face-to-face dimensions conform to standard ISO5752 (20series)Patented cosine curve seat ringThe cosine curve seat ring reducesvalve operating torque substantiallyand allows the torque to be adjustedaccording to the working pressure.Much longer life with spherical designSimilar to a spherical body rotating inside a spherical area, the operation of the disc is smooth and unhindered. Torque is reduced and the valve life is lengthened by 300%.Self-aligning stem seal through backup ringThe stem seal is the primary and secondary seal system.The backup ring functions as the self-aligning stem seal.Select from various disc materials to meet your specific needsAs one of the standard disc materials, PPS(for 50 to 200mm types)has been added to meet the current trend of linedpipes. PPS (polypheneylene sulfide with stainless steel core)is a kind of plastic material suitable for corrosive fluids(subject to the performance of rubber seats).Two aligning methods (350 to 600mm)Two valve models are available: the casted hole type (700G)and the tapped and drilled hole type (705G). They accommodate all the applicable flange standards.Long bonnetThe long neck shape allows insulation of up to 50mm afterthe valve is installed.
Flange Information Ansi 125lb150lb Effective Screw Hexagon Bolts
63 mm
Flange Information Ansi 125lb150lb Hexagon Bolts
U 1 1/8
Flange Information Ansi 125lb150lb Hexagon Bolts Length
85 mm
Flange Information Ansi 125lb150lb Number Of Hexagon Bolts
40
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | BS 4504 NP10/NP16 | DIN PN10/PN16 | JIS 5K/10K
Flange Information Din Pn10 Bs4504 Np10 Effective Screw Hexagon
50 mm
Flange Information Din Pn10 Bs4504 Np10 Hexagon Bolts
M24
Flange Information Din Pn10 Bs4504 Np10 Hexagon Bolts Length
70 mm
Flange Information Din Pn10 Bs4504 Np10 Number Of Hexagon Bolts
40
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
50 mm
Flange Information Jis 10k Hexagon Bolts
M24
Flange Information Jis 10k Hexagon Bolts Length
70 mm
Flange Information Jis 10k Number Of Hexagon Bolts
40
Flange Information Jis 5k Effective Screw Hexagon Bolts Length
50 mm
Flange Information Jis 5k Hexagon Bolts
M22
Flange Information Jis 5k Hexagon Bolts Length
60 mm
Flange Information Jis 5k Number Of Hexagon Bolts
40
Specifications Actuators
Electric Motor | Pneumatic Cylinder | Worm Gear
Specifications Body Material
Ductile Iron, JIS FCD450
Specifications Body Shell Test Hydraulic
1.5 MPa
Specifications Coating
Epoxy primer finish (Munsell N7)
Specifications Disc Material
304 Stainless Steel JIS SCS13 | 316 Stainless Steel JIS SCS14 | Aluminum Bronze JIS ALBC | Ductile Iron
Specifications Face To Face Dimensions
API 609/ISO 5752 (20series)
Specifications Maxworking Pressure
1.0 MPa
Specifications Seat Leak Test Pneumatic
1.1 MPa
Specifications Seat Material
EPDM | NBR
Specifications Size
500 - 20"
Specifications Stem Material
SUS420J2/SUS392J1
Specifications Weight
170 kg
Specifications Working Temperature Range
EPDM: -20° to 120°C | NBR: -10° to 80°C
