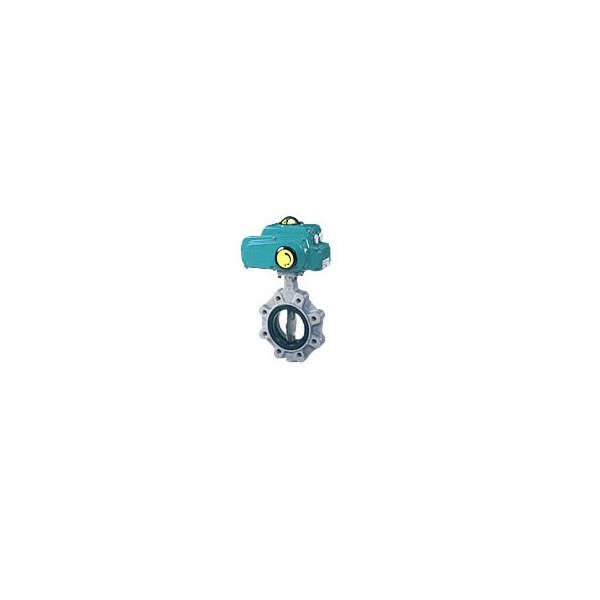

The Tomoe Series 704G Full Lugged Butterfly Valves are the ultimate general-purpose valves designed to meet a wide range of needs for institutional and government buyers. With a working pressure of 1.0 MPa and a working temperature range of -20°C to 120°C, these valves offer exceptional durability and long life. Featuring a patented cosine-curve seat ring, various disc and seat materials, and superior design, the 704G series ensures optimal performance and cost-efficiency. Compliant with international flange standards, these valves are suitable for global usage across different applications.
Product Specifications

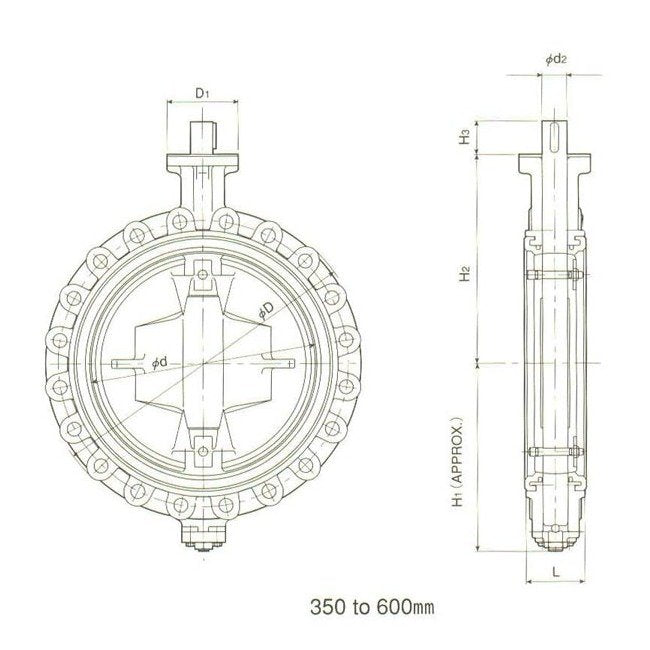

Dimensional Information A Min Internal Diameters Of Piping
569 mm
Dimensional Information D
795 mm | 820 mm
Dimensional Information D1
165 mm
Dimensional Information D2
55 mm
Dimensional Information H1
458 mm
Dimensional Information H2
528 mm
Dimensional Information H3
79 mm
Dimensional Information L
154 mm
Features 0
Satisfies ISO standards for face-to-face dimensionsValve face-to-face dimensions conform to standard ISO5752 (20series)Patented cosine curve seat ringThe cosine curve seat ring reducesvalve operating torque substantiallyand allows the torque to be adjustedaccording to the working pressure.Much longer life with spherical designSimilar to a spherical body rotating inside a spherical area, the operation of the disc is smooth and unhindered. Torque is reduced and the valve life is lengthened by 300%.Self-aligning stem seal through backup ringThe stem seal is the primary and secondary seal system.The backup ring functions as the self-aligning stem seal.Select from various disc materials to meet your specific needsAs one of the standard disc materials, PPS(for 50 to 200mm types)has been added to meet the current trend of linedpipes. PPS (polypheneylene sulfide with stainless steel core)is a kind of plastic material suitable for corrosive fluids(subject to the performance of rubber seats).Two aligning methods (350 to 600mm)Two valve models are available: the casted hole type (700G)and the tapped and drilled hole type (705G). They accommodate all the applicable flange standards.Long bonnetThe long neck shape allows insulation of up to 50mm afterthe valve is installed.
Flange Information Ansi 125lb150lb Effective Screw Hexagon Bolts
70 mm
Flange Information Ansi 125lb150lb Hexagon Bolts
U 1 1/4
Flange Information Ansi 125lb150lb Hexagon Bolts Length
95 mm
Flange Information Ansi 125lb150lb Number Of Hexagon Bolts
40
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | BS 4504 NP10/NP16 | DIN PN10/PN16 | JIS 5K/10K
Flange Information Din Pn10 Bs4504 Np10 Effective Screw Hexagon
60 mm
Flange Information Din Pn10 Bs4504 Np10 Hexagon Bolts
M27
Flange Information Din Pn10 Bs4504 Np10 Hexagon Bolts Length
80 mm
Flange Information Din Pn10 Bs4504 Np10 Number Of Hexagon Bolts
48
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
60 mm
Flange Information Jis 10k Hexagon Bolts
M30
Flange Information Jis 10k Hexagon Bolts Length
75 mm
Flange Information Jis 10k Number Of Hexagon Bolts
48
Flange Information Jis 5k Effective Screw Hexagon Bolts Length
50 mm
Flange Information Jis 5k Hexagon Bolts
M24
Flange Information Jis 5k Hexagon Bolts Length
70 mm
Flange Information Jis 5k Number Of Hexagon Bolts
40
Specifications Actuators
Electric Motor | Pneumatic Cylinder | Worm Gear
Specifications Body Material
Ductile Iron, JIS FCD450
Specifications Body Shell Test Hydraulic
1.5 MPa
Specifications Coating
Epoxy primer finish (Munsell N7)
Specifications Disc Material
304 Stainless Steel JIS SCS13 | 316 Stainless Steel JIS SCS14 | Aluminum Bronze JIS ALBC | Ductile Iron
Specifications Face To Face Dimensions
API 609/ISO 5752 (20series)
Specifications Maxworking Pressure
1.0 MPa
Specifications Seat Leak Test Pneumatic
1.1 MPa
Specifications Seat Material
EPDM | NBR
Specifications Size
600 - 24"
Specifications Stem Material
SUS420J2/SUS392J1
Specifications Weight
269.00 kg | 275.00 kg
Specifications Working Temperature Range
EPDM: -20° to 120°C | NBR: -10° to 80°C
