Tomoe Series 705G Semi Lugged Butterfly Valves
Tomoe Series 705G Semi Lugged Butterfly Valves
SKU:VAL-29c1f1
Enhanced Tomoe butterfly valves for diverse industrial applications, ensuring durability and compliance.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Tomoe Series 705G Semi Lugged Butterfly Valves
$399.99
Quantity: 1
Claim Your Seller Account
Tomoe Series 705G Semi Lugged Butterfly Valves
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

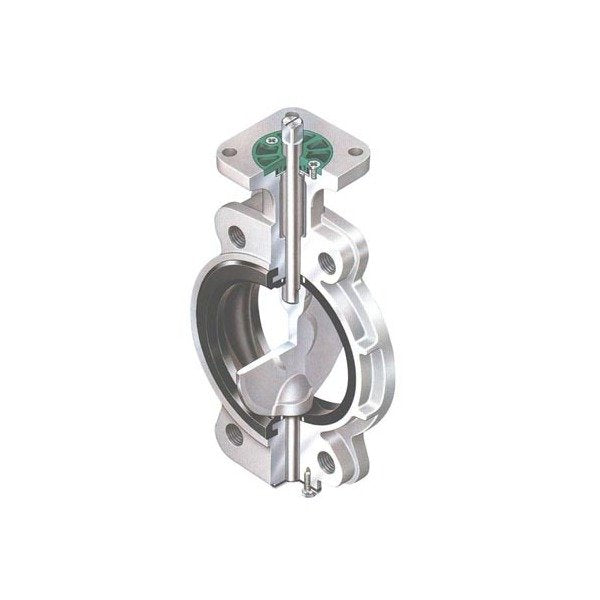

The Tomoe Series 705G Semi Lugged Butterfly Valves are the ultimate solution for diverse industrial needs. Offering exceptional cost-performance, these valves feature various seat and disc materials, meeting a broad spectrum of requirements. With a working pressure of 1.0 MPa and a wide temperature range, these valves ensure optimal performance and longevity. Compliant with international flange standards, the 705G series provides simple handling and durability, making it a superior choice for institutions seeking quality valves.
Product Specifications
Dimensional Information A Min Internal Diameters Of Piping
91 mm
Dimensional Information D
146 mm
Dimensional Information D1
70 mm
Dimensional Information D2
14 mm
Dimensional Information H1
117 mm
Dimensional Information H2
167 mm
Dimensional Information H3
22.5 mm
Dimensional Information L
52 mm
Features 0
Satisfies ISO standards for face-to-face dimensionsValve face-to-face dimensions conform to standard ISO5752 (20series)Patented cosine curve seat ringThe cosine curve seat ring reducesvalve operating torque substantiallyand allows the torque to be adjustedaccording to the working pressure.Much longer life with spherical designSimilar to a spherical body rotating inside a spherical area, the operation of the disc is smooth and unhindered. Torque is reduced and the valve life is lengthened by 300%.Self-aligning stem seal through backup ringThe stem seal is the primary and secondary seal system.The backup ring functions as the self-aligning stem seal.Select from various disc materials to meet your specific needsAs one of the standard disc materials, PPS(for 50 to 200mm types)has been added to meet the current trend of linedpipes. PPS (polypheneylene sulfide with stainless steel core)is a kind of plastic material suitable for corrosive fluids(subject to the performance of rubber seats).Two aligning methods (350 to 600mm)Two valve models are available: the casted hole type (700G)and the tapped and drilled hole type (705G). They accommodate all the applicable flange standards.Long bonnetThe long neck shape allows insulation of up to 50mm afterthe valve is installed.
Flange Information Ansi 125lb150lb Effective Screw Hexagon Bolts
38 mm
Flange Information Ansi 125lb150lb Effective Screw Long Bolts Le
50 mm
Flange Information Ansi 125lb150lb Hexagon Bolts
U 5/8
Flange Information Ansi 125lb150lb Hexagon Bolts Length
45 mm
Flange Information Ansi 125lb150lb Long Bolts And Nuts
U 5/8
Flange Information Ansi 125lb150lb Long Bolts Length
165 mm
Flange Information Ansi 125lb150lb Number Of Hexagon Bolts
8
Flange Information Ansi 125lb150lb Number Of Long Bolts
4
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | BS 4504 NP10/NP16 | BS10E | DIN PN10/PN16 | JIS 5K/10K
Flange Information Bs4504np10din Pn10 Drilled Effective Screw Lo
35 mm
Flange Information Bs4504np10din Pn10 Drilled Long Bolts And Nut
M16
Flange Information Bs4504np10din Pn10 Drilled Long Bolts Length
140 mm
Flange Information Bs4504np10din Pn10 Drilled Number Of Long Bol
8
Flange Information Bs4504np10din Pn10 Tapped Effective Screw Hex
35 mm
Flange Information Bs4504np10din Pn10 Tapped Hexagon Bolts
M16
Flange Information Bs4504np10din Pn10 Tapped Hexagon Bolts Lengt
40 mm
Flange Information Bs4504np10din Pn10 Tapped Number Of Hexagon B
8
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
40 mm
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
38 mm
Flange Information Jis 10k Hexagon Bolts
M16
Flange Information Jis 10k Hexagon Boltsnuts
M16
Flange Information Jis 10k Hexagon Boltsnuts Length
110 mm
Flange Information Jis 10k Hexagon Bolts Length
40 mm
Flange Information Jis 10k Number Of Hexagon Bolts
8
Specifications Body Material
Ductile Iron, JIS FCD450
Specifications Disc Material
316 Stainless Steel JIS SCS14 | 316 Stainless Steel, JIS SUSF316 | Aluminum Bronze JIS ALBC | Carbon Steel JIS SF490A with Dacro Coating | Carbon Steel JIS SF490A with Nylon Coating | Coated
Specifications Face To Face Dimensions
API 609/ISO 5752 (20series)
Specifications Seat Material
EPDM | NBR
Specifications Size
100 - 4"
Specifications Stem Material
SUS420J2/SUS392J1
