Tomoe Series 705G Semi Lugged Butterfly Valves
Tomoe Series 705G Semi Lugged Butterfly Valves
SKU:VAL-670ec5
Top-quality Tomoe Series 705G Butterfly Valves for enhanced performance and durability in diverse applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Tomoe Series 705G Semi Lugged Butterfly Valves
$399.99
Quantity: 1
Claim Your Seller Account
Tomoe Series 705G Semi Lugged Butterfly Valves
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

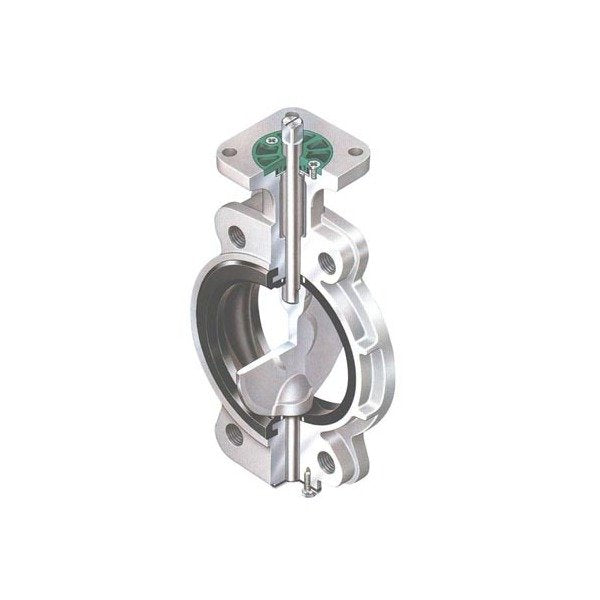

The Tomoe Series 705G Semi Lugged Butterfly Valves are designed to meet a wide range of needs in various industries. Featuring a patented cosine-curve seat ring for reduced operating torque, self-aligning stem seal for enhanced sealing, and a spherical design for smooth disc operation and prolonged valve life. With options for different disc materials and two aligning methods, these valves offer exceptional performance and durability for institutional and industrial applications worldwide.
Product Specifications
Dimensional Information A Min Internal Diameters Of Piping
34.0 mm
Dimensional Information D
90 mm
Dimensional Information D1
70 mm
Dimensional Information D2
10 mm
Dimensional Information H1
85 mm
Dimensional Information H2
138 mm
Dimensional Information H3
21.5 mm
Dimensional Information L
43 mm
Features 0
Satisfies ISO standards for face-to-face dimensionsValve face-to-face dimensions conform to standard ISO5752 (20series)Patented cosine curve seat ringThe cosine curve seat ring reducesvalve operating torque substantiallyand allows the torque to be adjustedaccording to the working pressure.Much longer life with spherical designSimilar to a spherical body rotating inside a spherical area, the operation of the disc is smooth and unhindered. Torque is reduced and the valve life is lengthened by 300%.Self-aligning stem seal through backup ringThe stem seal is the primary and secondary seal system.The backup ring functions as the self-aligning stem seal.Select from various disc materials to meet your specific needsAs one of the standard disc materials, PPS(for 50 to 200mm types)has been added to meet the current trend of linedpipes. PPS (polypheneylene sulfide with stainless steel core)is a kind of plastic material suitable for corrosive fluids(subject to the performance of rubber seats).Two aligning methods (350 to 600mm)Two valve models are available: the casted hole type (700G)and the tapped and drilled hole type (705G). They accommodate all the applicable flange standards.Long bonnetThe long neck shape allows insulation of up to 50mm afterthe valve is installed.
Flange Information Ansi 125lb150lb Effective Screw Hexagon Bolts
30 mm
Flange Information Ansi 125lb150lb Hexagon Bolts
U 5/8
Flange Information Ansi 125lb150lb Hexagon Bolts Length
35 mm
Flange Information Ansi 125lb150lb Number Of Hexagon Bolts
8
Flange Information Applicable Flange Standard
ANSI 125Lb/150Lb | BS 4504 NP10/NP16 | BS10E | DIN PN10/PN16 | JIS 5K/10K
Flange Information Bs4504np10din Pn10 Drilled Effective Screw Lo
30 mm
Flange Information Bs4504np10din Pn10 Drilled Long Bolts And Nut
M16
Flange Information Bs4504np10din Pn10 Drilled Long Bolts Length
125 mm
Flange Information Bs4504np10din Pn10 Drilled Number Of Long Bol
4
Flange Information Bs4504np10din Pn10 Tapped Effective Screw Hex
30 mm
Flange Information Bs4504np10din Pn10 Tapped Hexagon Bolts
M16
Flange Information Bs4504np10din Pn10 Tapped Hexagon Bolts Lengt
35 mm
Flange Information Bs4504np10din Pn10 Tapped Number Of Hexagon B
8
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
32 mm
Flange Information Jis 10k Hexagon Bolts
M16
Flange Information Jis 10k Hexagon Bolts Length
35 mm
Flange Information Jis 10k Number Of Hexagon Bolts
8
Flange Information Jis 5k Effective Screw Hexagon Bolts Length
28 mm
Flange Information Jis 5k Hexagon Bolts
M12
Flange Information Jis 5k Hexagon Bolts Length
30 mm
Flange Information Jis 5k Number Of Hexagon Bolts
8
Specifications Actuators
Center Handle | Electric Motor | Lock Lever | Pneumatic Cylinder | Worm Gear
Specifications Body Material
Ductile Iron, JIS FCD450
Specifications Body Shell Test Hydraulic
1.5 MPa
Specifications Coating
Epoxy primer finish (Munsell N7)
Specifications Disc Material
316 Stainless Steel JIS SCS14 | 316 Stainless Steel, JIS SUSF316 | Aluminum Bronze JIS ALBC | Carbon Steel JIS SF490A with Dacro Coating | Carbon Steel JIS SF490A with Nylon Coating | Coated
Specifications Face To Face Dimensions
API 609/ISO 5752 (20series)
Specifications Seat Material
EPDM | NBR
Specifications Size
050 - 2"
Specifications Stem Material
SUS420J2/SUS392J1
