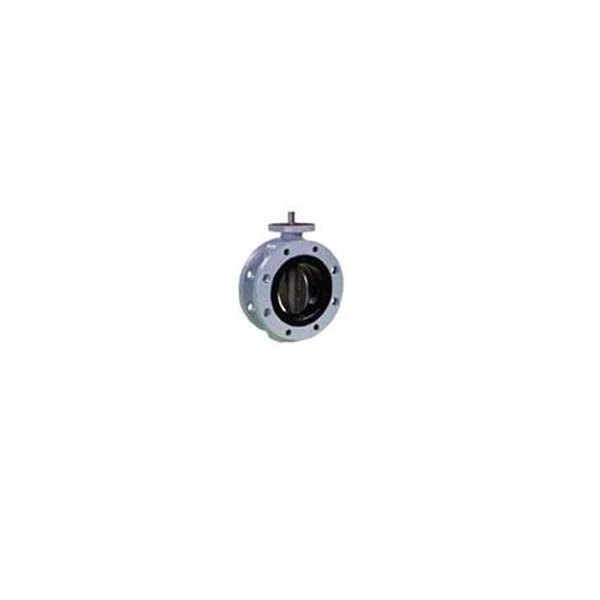

Tomoe Series 720F Shipside Butterfly Valves - Double Flanged (Larger Sizes)
Tomoe Series 720F Shipside Butterfly Valves - Double Flanged (Larger Sizes)
SKU:VAL-ec54a5
Reliable Tomoe Series 720F Butterfly Valves for ships, meeting international standards for durability and efficiency.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Tomoe Series 720F Shipside Butterfly Valves - Double Flanged (Larger Sizes)
$2,899.99
Quantity: 1
Claim Your Seller Account
Tomoe Series 720F Shipside Butterfly Valves - Double Flanged (Larger Sizes)
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Tomoe Series 720F Shipside Butterfly Valves with Double Flanged Body in larger sizes offer exceptional reliability and compliance with international maritime standards. Designed for long life and leak tightness, these valves feature a bubble-tight closure and easy maintenance, making them ideal for ships operating under rigorous conditions. With a robust construction and a variety of seat and disc materials available, these valves ensure superior performance and durability in marine applications.
Product Specifications
Dimensional Information A1
10 mm
Dimensional Information A2
80 mm
Dimensional Information A3
5 mm
Dimensional Information A4
95 mm
Dimensional Information A Min Internal Diameters Of Piping
803 mm
Dimensional Information B
20 mm
Dimensional Information Bh
23 mm
Dimensional Information C1
280 mm
Dimensional Information D
1070 mm
Dimensional Information D1
320 mm
Dimensional Information D2
75 mm
Dimensional Information H1
709 mm
Dimensional Information H2
650 mm
Dimensional Information L
210 mm
Dimensional Information N
8 mm
Dimensional Information T
40 mm
Flange Information Applicable Flange Standard
JIS 10K( JIS 5K, ANSI 125Lb/150Lb, PN10)
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
66 mm
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
66 mm
Flange Information Jis 10k Hexagon Bolts
M30
Flange Information Jis 10k Hexagon Boltsnuts
M30
Flange Information Jis 10k Hexagon Boltsnuts Length
115 mm
Flange Information Jis 10k Hexagon Bolts Length
80 mm
Flange Information Jis 10k Number Of Hexagon Bolts
8
Flange Information Jis 10k Number Of Hexagon Boltsnuts
48
Specifications Actuators
Electric Motor | Hydraulic Motor | Pneumatic Motor
Specifications Body Material
Cast Steel, JIS SCPH2
Specifications Body Shell Test Hydraulic
1.5 MPa
Specifications Disc Material
SCS13(304SS)
Specifications Maxworking Pressure
1.0 MPa
Specifications Painting
Epoxy primer finish (Munsell N7)
Specifications Seat Leak Test Pneumatic
1.1 MPa
Specifications Seat Material
EPDM | NBR
Specifications Size
850 - 34"
Specifications Stem Material
SUS 403
Specifications Working Temperature Range
EPDM: -20 to 120°C | NBR: -10 to 80°C
