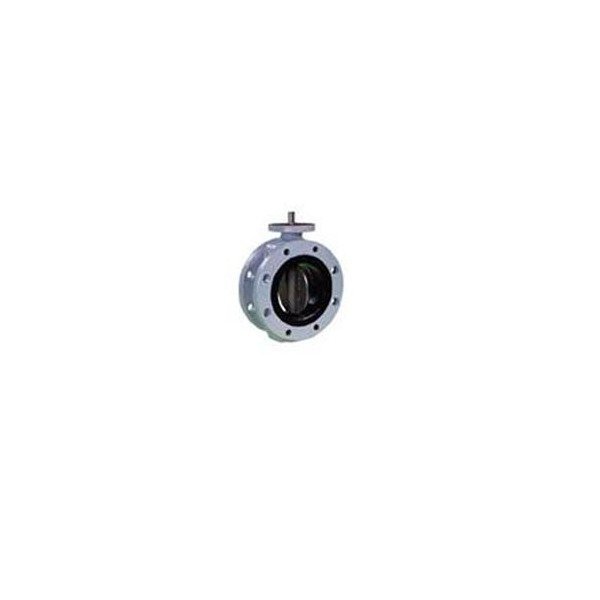

Tomoe Series 720F Shipside Butterfly Valves (Large Size)
Tomoe Series 720F Shipside Butterfly Valves (Large Size)
SKU:VAL-2c1892
Reliable Tomoe Series 720F Butterfly Valves for marine industry, built to last.
Regular price
$2,199.99
Regular price
Sale price
$2,199.99
Unit price
per
Initiate Order
Tomoe Series 720F Shipside Butterfly Valves (Large Size)
$2,199.99
Quantity: 1
Claim Your Seller Account
Tomoe Series 720F Shipside Butterfly Valves (Large Size)
$2,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Tomoe Series 720F Shipside Butterfly Valves with Double Flanged Body in larger sizes are engineered for the demanding needs of today's marine industry. Built to international standards with global marine approvals, these valves ensure long-term leak tightness with precision spindle sealing and seat design. With easy seat and disc replacement as part of planned maintenance, these valves offer reliability and low-cost maintenance, making them ideal for prolonged use in marine applications.
Product Specifications
Dimensional Information A1
60 mm
Dimensional Information A2
140 mm
Dimensional Information A3
10 mm
Dimensional Information A4
210 mm
Dimensional Information A Min Internal Diameters Of Piping
1277 mm
Dimensional Information B
32 mm
Dimensional Information Bh
23 mm
Dimensional Information C1
280 mm
Dimensional Information D
1630 mm
Dimensional Information D1
320 mm
Dimensional Information D2
120 mm
Dimensional Information H1
1030 mm
Dimensional Information H2
960 mm
Dimensional Information L
330 mm
Dimensional Information L1
300 mm
Dimensional Information N
8 mm
Dimensional Information T
45 mm
Flange Information Applicable Flange Standard
JIS 10K( JIS 5K, ANSI 125Lb/150Lb, PN10)
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
96 mm
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
90 mm
Flange Information Jis 10k Hexagon Bolts
M42
Flange Information Jis 10k Hexagon Boltsnuts
M42
Flange Information Jis 10k Hexagon Boltsnuts Length
165 mm
Flange Information Jis 10k Hexagon Bolts Length
110 mm
Flange Information Jis 10k Number Of Hexagon Bolts
16
Flange Information Jis 10k Number Of Hexagon Boltsnuts
56
Specifications Actuators
Electric Motor | Hydraulic Motor | Pneumatic Motor
Specifications Body Material
Cast Steel, JIS SCPH2
Specifications Body Shell Test Hydraulic
1.5 MPa
Specifications Disc Material
SCS13(304SS)
Specifications Maxworking Pressure
1.0 MPa
Specifications Painting
Epoxy primer finish (Munsell N7)
Specifications Seat Leak Test Pneumatic
1.1 MPa
Specifications Seat Material
EPDM | NBR
Specifications Size
1350 - 54"
Specifications Stem Material
SUS 403
Specifications Working Temperature Range
EPDM: -20 to 120°C | NBR: -10 to 80°C
