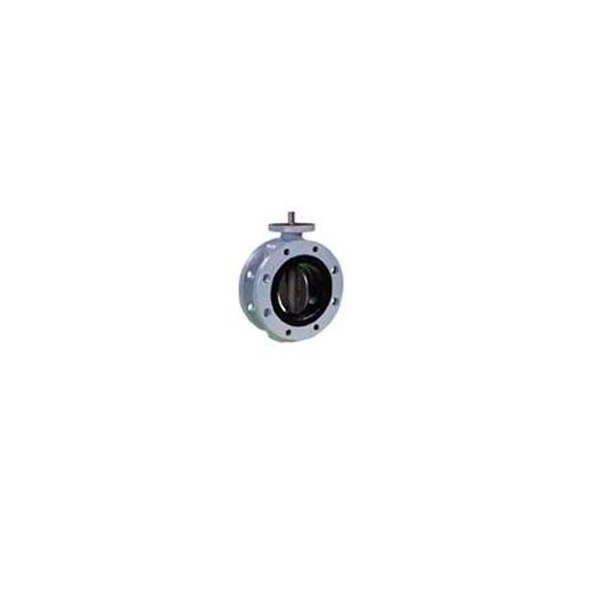

Tomoe Series 720F Shipside Butterfly Valves (Large Sizes)
Tomoe Series 720F Shipside Butterfly Valves (Large Sizes)
SKU:VAL-ff05a6
Reliable and durable Tomoe Shipside Butterfly Valves for demanding maritime applications. Ensure leak-tight closure and ease of maintenance.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
Tomoe Series 720F Shipside Butterfly Valves (Large Sizes)
$2,599.99
Quantity: 1
Claim Your Seller Account
Tomoe Series 720F Shipside Butterfly Valves (Large Sizes)
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Tomoe Series 720F Shipside Butterfly Valves with a double-flanged body are engineered for maritime applications that demand high reliability and compliance with global marine standards. These valves ensure bubble-tight closure, long-term leak-tightness, and easy maintenance, making them ideal for ships operating under rigorous conditions. With robust construction, replaceable seats and discs, and compatibility with various actuators, these valves offer exceptional performance in marine environments.
Product Specifications
Dimensional Information A1
10 mm
Dimensional Information A2
100 mm
Dimensional Information A3
10 mm
Dimensional Information A4
120 mm
Dimensional Information A Min Internal Diameters Of Piping
1040 mm
Dimensional Information B
24 mm
Dimensional Information Bh
23 mm
Dimensional Information C1
280 mm
Dimensional Information D
1345 mm
Dimensional Information D1
320 mm
Dimensional Information D2
95 mm
Dimensional Information H1
874 mm
Dimensional Information H2
820 mm
Dimensional Information L
280 mm
Dimensional Information L1
210 mm
Dimensional Information N
8 mm
Dimensional Information T
45 mm
Flange Information Applicable Flange Standard
JIS 10K( JIS 5K, ANSI 125Lb/150Lb, PN10)
Flange Information Jis 10k Effective Screw Hexagon Boltsnuts Len
84 mm
Flange Information Jis 10k Effective Screw Hexagon Bolts Length
78 mm
Flange Information Jis 10k Hexagon Bolts
M36
Flange Information Jis 10k Hexagon Boltsnuts
M36
Flange Information Jis 10k Hexagon Boltsnuts Length
145 mm
Flange Information Jis 10k Hexagon Bolts Length
110 mm
Flange Information Jis 10k Number Of Hexagon Bolts
16
Flange Information Jis 10k Number Of Hexagon Boltsnuts
40
Specifications Actuators
Electric Motor | Hydraulic Motor | Pneumatic Motor
Specifications Body Material
Cast Steel, JIS SCPH2
Specifications Body Shell Test Hydraulic
1.5 MPa
Specifications Disc Material
SCS13(304SS)
Specifications Maxworking Pressure
1.0 MPa
Specifications Painting
Epoxy primer finish (Munsell N7)
Specifications Seat Leak Test Pneumatic
1.1 MPa
Specifications Seat Material
EPDM | NBR
Specifications Size
1100 - 44"
Specifications Stem Material
SUS 403
Specifications Working Temperature Range
EPDM: -20 to 120°C | NBR: -10 to 80°C
